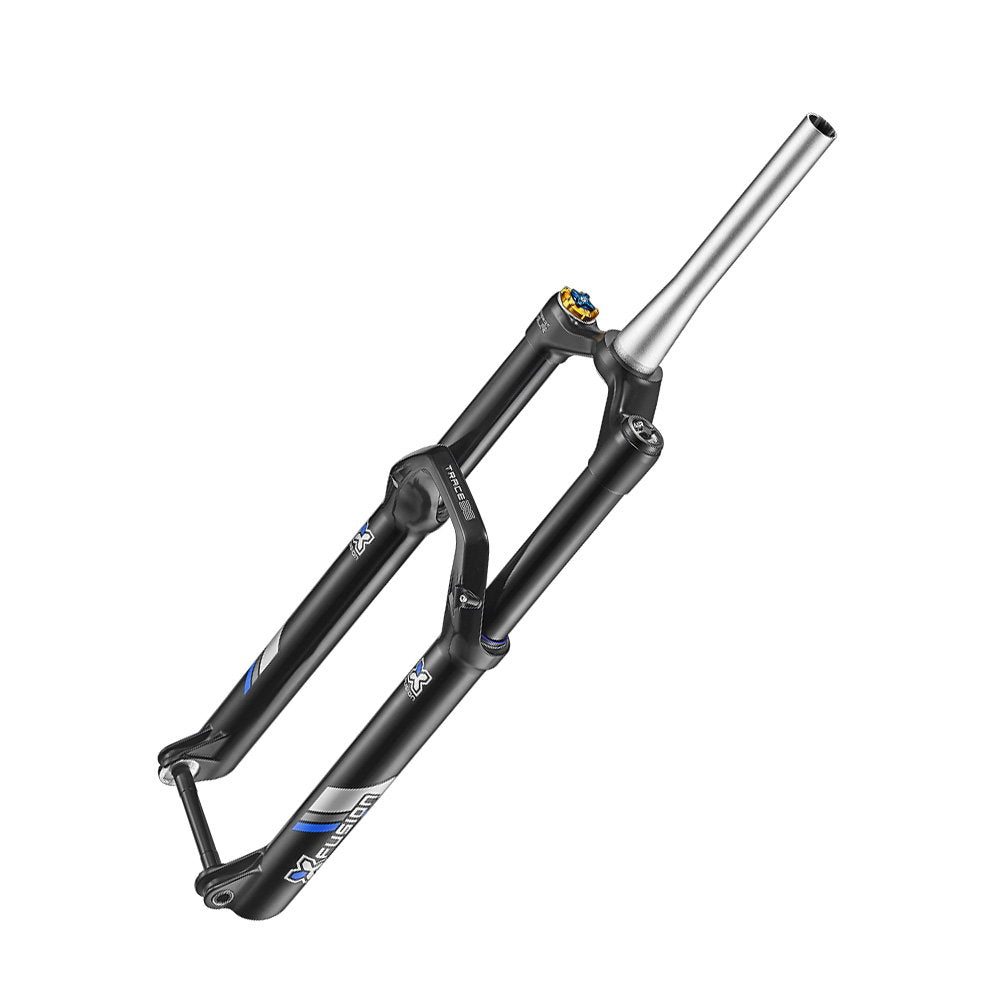

X-Fusion Trace 36. The perfect 29" Trail & Enduro fork.
Developed for the new progression of 29er Super Enduro bikes with 170mm travel and 36mm stanchions, the X-Fusion Trace 36 29" HLR Boost fork offers a stout chassis with smooth and efficient damping.
The Trace36 HLR Boost fork is available with the Roughcut HLR bladder cartridge damping system, riders will no longer have shy away from the most technical bits of trail but will be looking for what they can conquer next.
The Roughcut Damper is a fully bled bladder and cartridge based damper which features high and low speed, independently adjustable compression and rebound damping adjustment.
Nvolve Wiper seals reducing seal drag and increasing durability.
Specification
Weight: 2110g.
Wheel Size: 29 Inch.
Travel: 170mm (ITA 140/160/170).
Stanchion: 36mm.
Spring: Air.
Damper: Roughcut HLR.
Adjustments: High and Low Speed Compression, Rebound, Air Pressure
Steerer: Tapered.
Axle: Bolt-On Boost 110x15mm.
Colour: Flat Black.
Axle to Crown: 581mm (170mm).
Offset: 44mm.
Rotor Size: 180-203mm (X-Fusion adaptor only).
OWNERS MANUAL
AIR & COIL SPING CHART
Geometry
| HLR damping systems are on our performance line. They offer external rebound adjustment & external high and low speed compression adjustment | |
| Brake house guides for simplistic and easy brake line mounting. | |
| Revised All CNC Aluminium Damper with New Mid-Valve for Improved Control. | |
| C-Clip and slot on air rod to adjust fork travel. | |
| New locking axle for all 15mm forks. | |
| New ultra durable, low friction wiper seals for all forks. | |
| X-Fusions Roughcut HLR is an HLR damping system with single wall bladder system that completely separates the oil in the damper from air outside the cartridge. | |
| One piece aluminium crown steerer assembly. |
