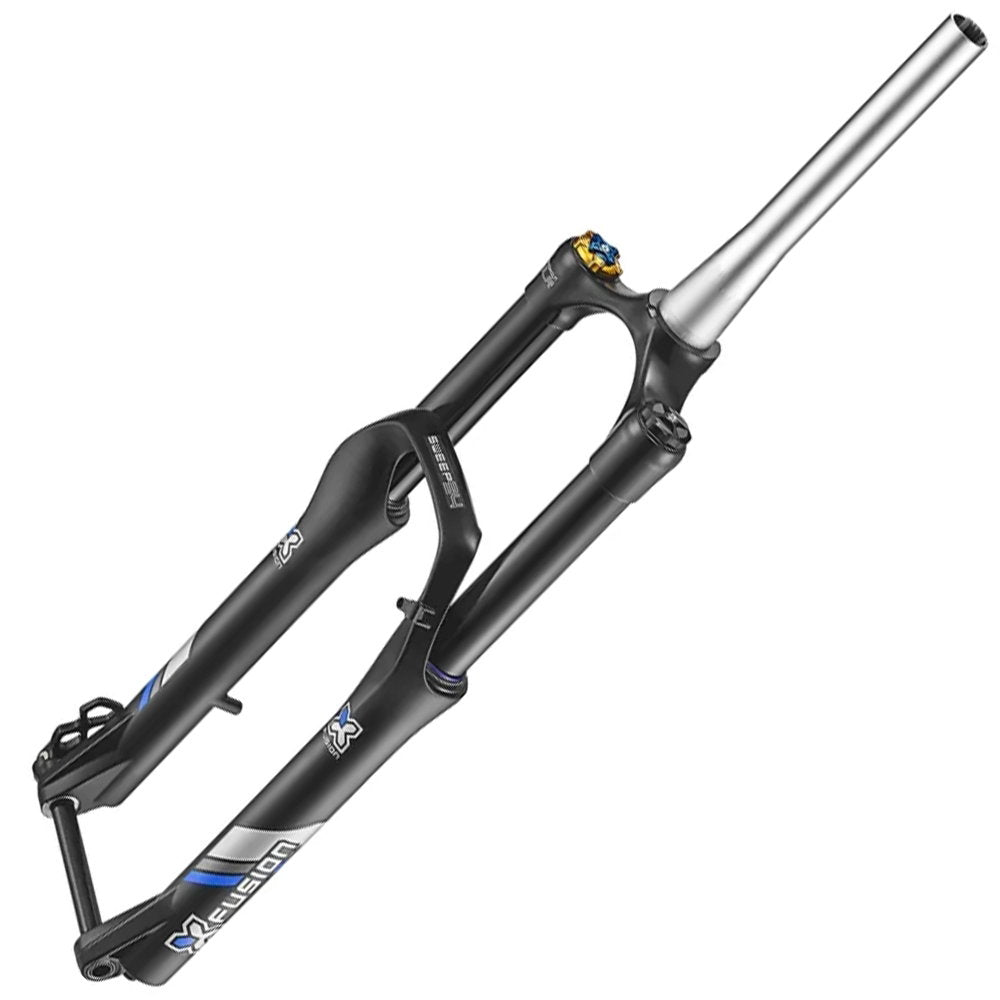

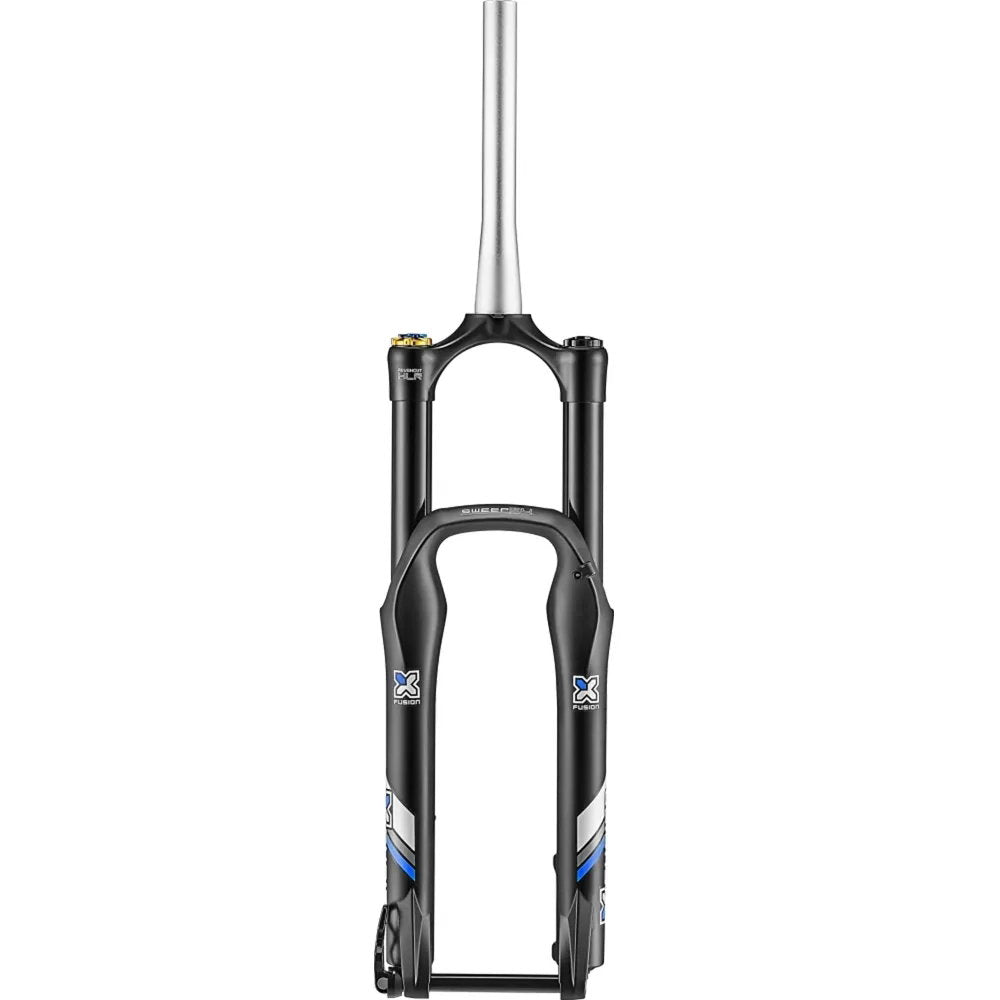

The Sweep Boost series is the 27.5" Boost version with wider clearance for 2.8" tyres. Spawning from the Sweep series that was developed to bridge the gap between lightweight trail forks and high performance all-mountain forks using a 34mm chassis. The Sweep has been given a dedicated offset of 46mm that you will now find on all 27.5" forks. The Sweep Boost is available with the Roughcut HLR/RCP bladder cartridge damping system in a svelte, but stout chassis allowing you to dominate the trail in any direction.
The Roughcut Damper is a fully bled bladder and cartridge based damper which features high and low speed, independently adjustable compression and rebound damping adjustment.
Nvolve Wiper seals reducing seal drag and increasing durability.
2.8 maximum tyre compatibility on Boost version.
Specification
Weight: 1905g.
Wheel Size: 27.5".
Travel: 160mm (ITA 100/120/140/160mm).
Stanchion: 34mm Aluminium.
Spring: Air.
Damper: Roughcut HLR.
Adjustments HLR: High and Low Speed Comp, Rebound, Air Pressure.
Steerer: Tapered.
Axle: Bolt-On Boost 110x15mm.
Axle to Crown: 551mm @ 160mm of travel.
Offset: 46mm.
Max Rotor Size: 180mm/203mm (XF adaptor only).
Features
- HLR damping: external rebound adjustment and external high and low speed compression adjustment
- Brake hose guides for simple brake line mounting
- Specific offsets for 26, 27.5 and 29 inch wheel platforms
- C-Clip and slot on air rod to adjust fork travel
- Locking axle for all 15mm forks
- Ultra durable, low friction wiper seals
- Roughcut HLR single wall bladder system completely separates the oil in the damper from air outside the cartridge
