The Wilier Rapida is built around a simple idea: that speed means something different to every rider. Not a number on a screen, but a feeling, fluid, personal, and experienced before it's ever measured.
- Balanced geometry for all riders
- Tyre clearance up to 36mm
- Full Monocoque carbon cockpit
Designed as Wilier's most accessible road entry point, the Rapida brings the brand's unmistakable identity and design philosophy to a wider audience without compromise.

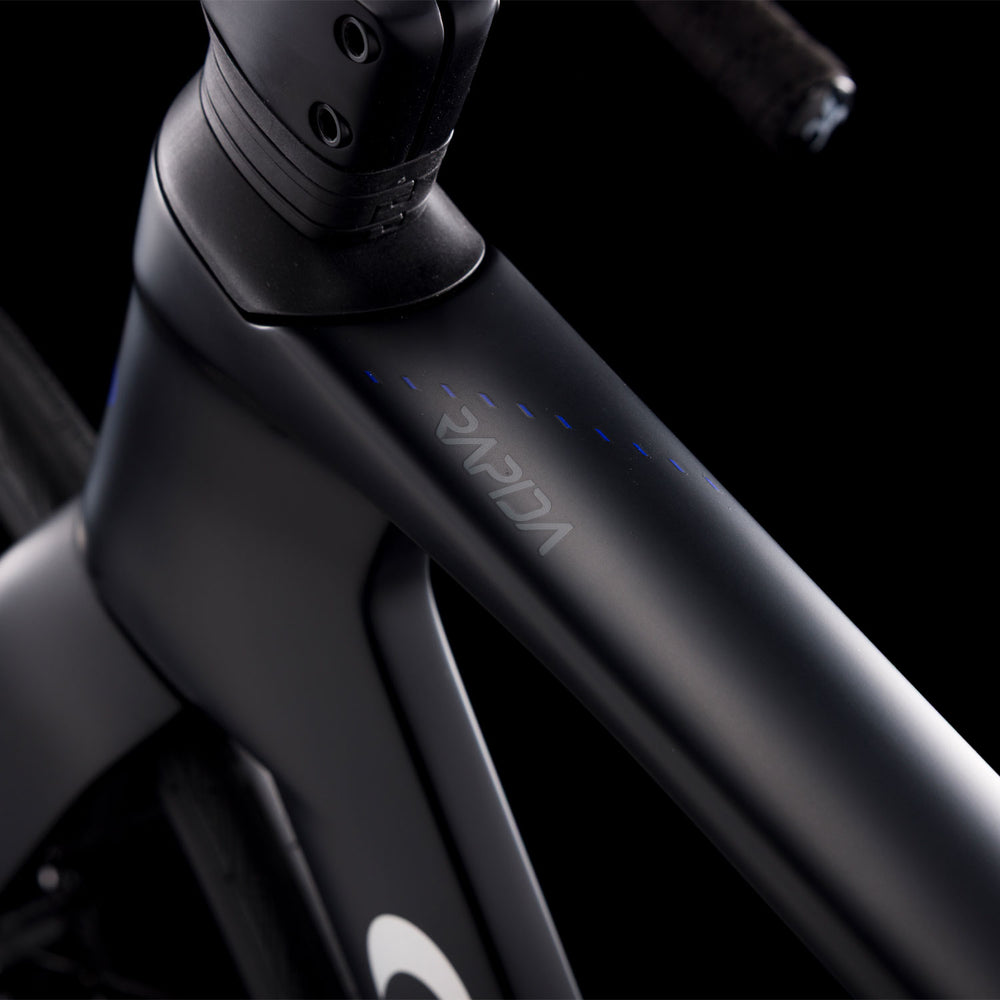

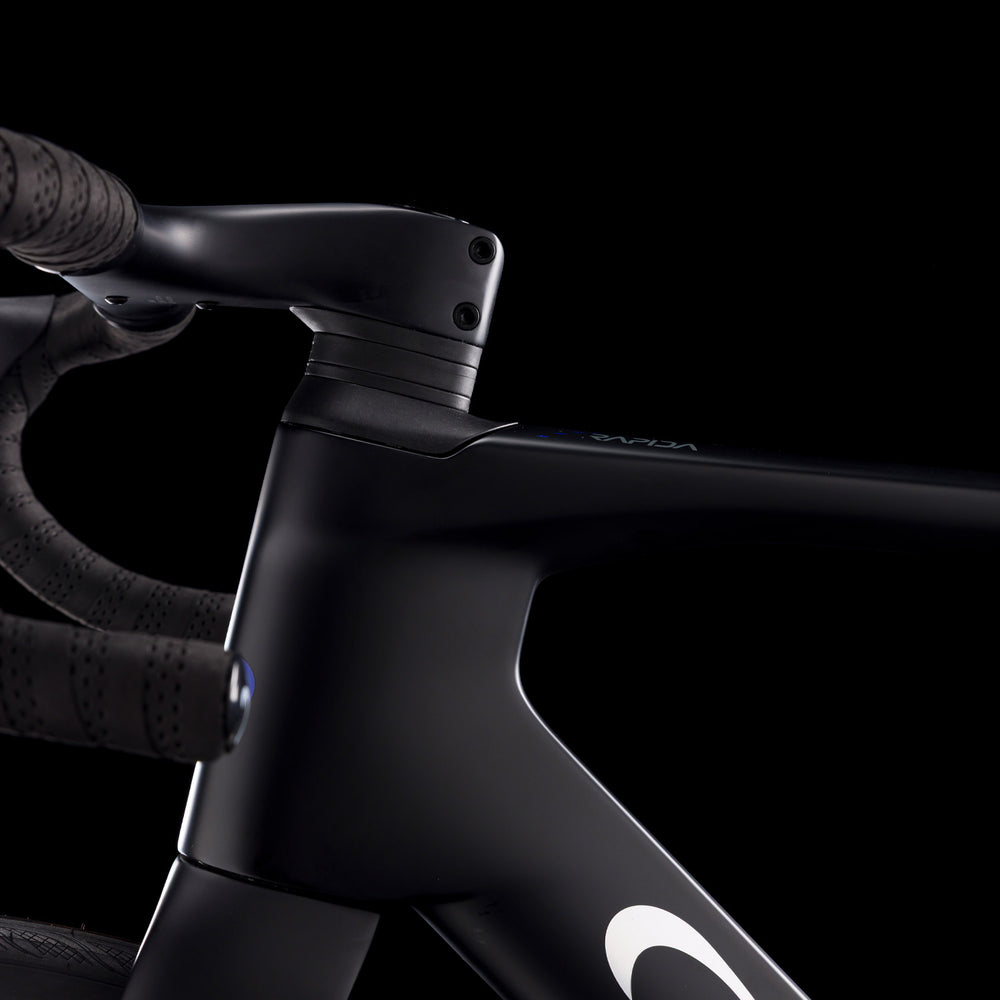

The included monocoque carbon cockpit with full internal cable routing keeps the lines clean and aggressive, and the NACA aerofoil profiles optimise aerodynamic efficiency whilst retaining the elegance that defines every Wilier.
Geometry: A Finely Tuned Balance
The exact point where speed and distance coexist. A precision-engineered balance, with a riding position that retains the brand’s racing character without penalising comfort on long days out. The stack height sits midway between our pure racing models and our endurance range: the result is a fast, stable and accessible bike, capable of ensuring efficiency and control on every ride.
Features & Benefits
- Monocoque carbon cockpit: Full internal cable routing for a clean, modern and purposeful silhouette
- NACA airfoil profiling: Aerodynamic shaping on frame, fork and seatpost for improved efficiency without sacrificing elegant design
- Balanced geometry: Positioned midway between Wilier's racing and endurance models, fast, stable and accessible for long days in the saddle
- Tyre clearance up to 36mm: Suited to smooth tarmac, rougher roads and light gravel use
- Removable front derailleur mount: Suitable for 1x and 2x setups
- UDH hanger: For a versatile and futureproof setup
- Carbon seatpost with integrated clamp: Maintains clean, uninterrupted lines throughout
Wilier R-Bar sizes:
- XS: 370/400 x 90
- S: 370/400 x 90
- M: 370/400 x 100
- L: 390/420 x 110
- XL: 390/420 x 120
- XXL: 390/420 x 120
Frame Specs
- Sizes: XS (43), S (46), M (49), L (52), XL (55), XXL (58)
- Compatible with electronic and mechanical disc groupsets
- Cable integration: Fully integrated
- Material: Carbon Monocoque NHU MOD
- Bottom bracket shell: BB86 86.5 x 41
- Handlebar: Carbon Integrated R-Bar
- Seatpost: Filante SL Carbon Custom Made -15mm
- Headset: Fully Integrated
- Tyre Clearance: Up to 36mm
- Thru axles: 126.5/172.5mm x 12mm
- Frame weight: 1210g
- Fork weight: 470g

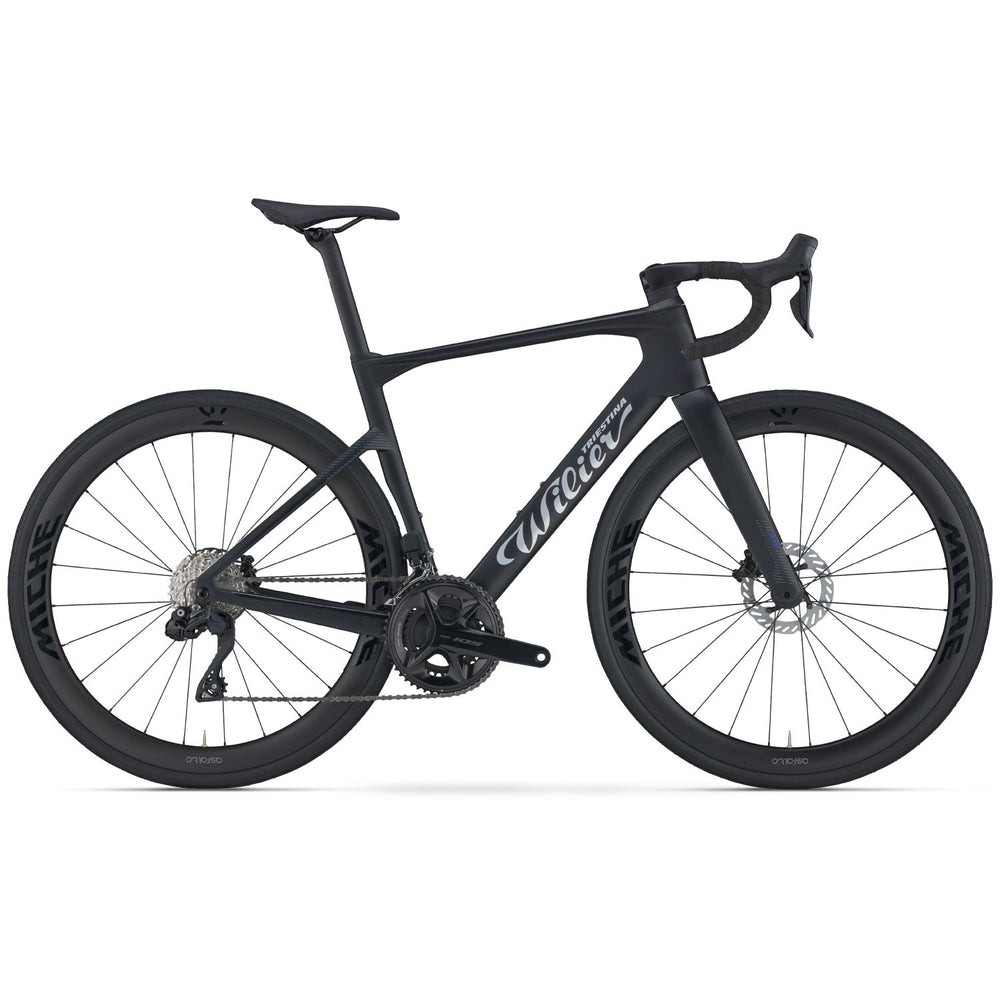

Bike Specifications:
- Components: Shimano 105 Di2 12x
- Chainset: Shimano 105 Di2 12x
- Disc Brakes: Shimano 105 Di2 12x
- Disc Rotors: Shimano 105 Ice Rotors 140/160mm
- Cassette: Shimano 105 12x
- Chain: KMC 12x Silver/Black
- Saddle: Prologo Dimension RS
- Wheelset: Miche Asfalto 45
- Tyres: Schwalbe Lugano II 700x28c
Spec may be subject to change due to availability

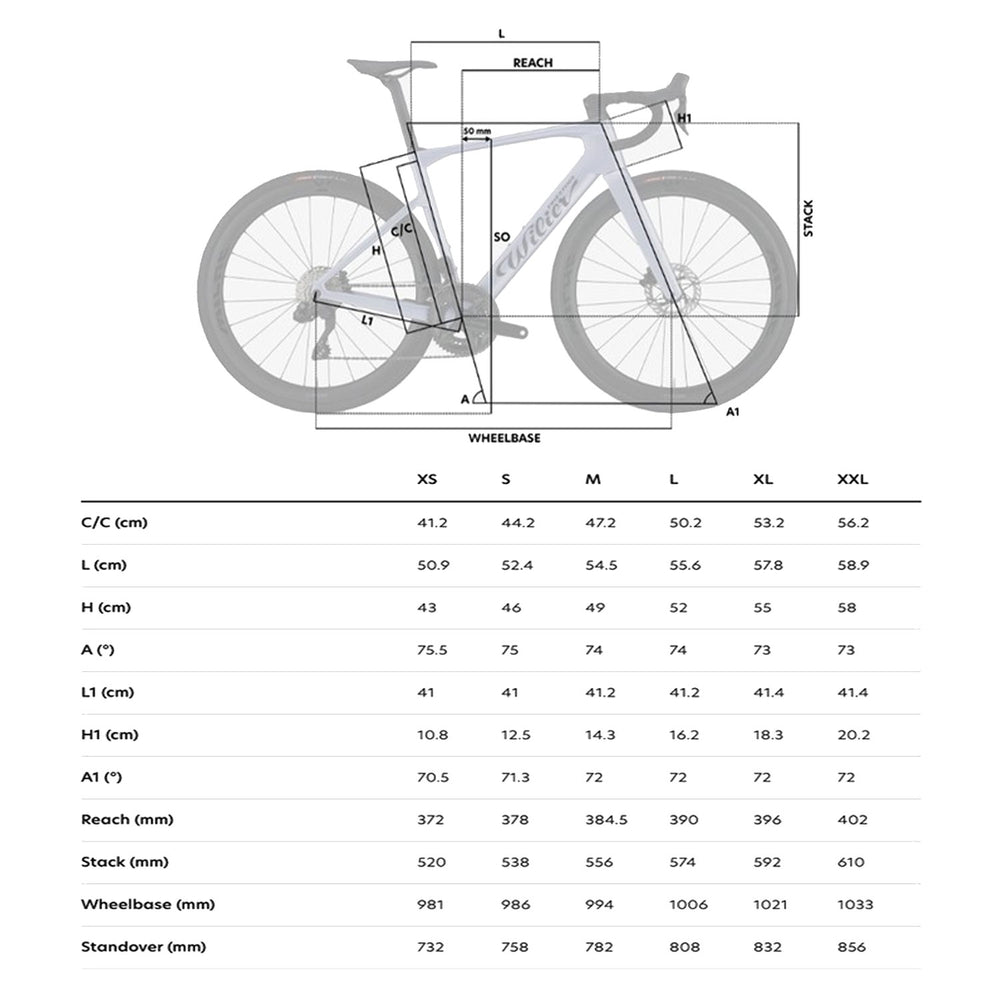

Geometry
| Size | XS (43) | S (46) | M (49) | L (52) | XL (55) | XXL (58) |
|---|---|---|---|---|---|---|
| Seat tube, centre to centre (C/C), cm | 41.2 | 44.2 | 47.2 | 50.2 | 53.2 | 56.2 |
| Top tube, horizontal (L), cm | 50.9 | 52.4 | 54.5 | 55.6 | 57.8 | 58.9 |
| Seat tube, centre to top (H), cm | 43 | 46 | 49 | 52 | 55 | 58 |
| Seat angle (A), ° | 75.5 | 75 | 74 | 74 | 73 | 73 |
| Chainstay (L1), cm | 41 | 41 | 41.2 | 41.2 | 41.4 | 41.4 |
| Head tube (H1), cm | 10.8 | 12.5 | 14.3 | 16.2 | 18.3 | 20.2 |
| Head angle (A1), ° | 70.5 | 71.3 | 72 | 72 | 72 | 72 |
| Reach, mm | 372 | 378 | 384.5 | 390 | 396 | 402 |
| Stack, mm | 520 | 538 | 556 | 574 | 592 | 610 |
| Wheelbase, mm | 981 | 986 | 994 | 1006 | 1021 | 1033 |
| Standover (SO), mm | 732 | 758 | 782 | 808 | 832 | 856 |
