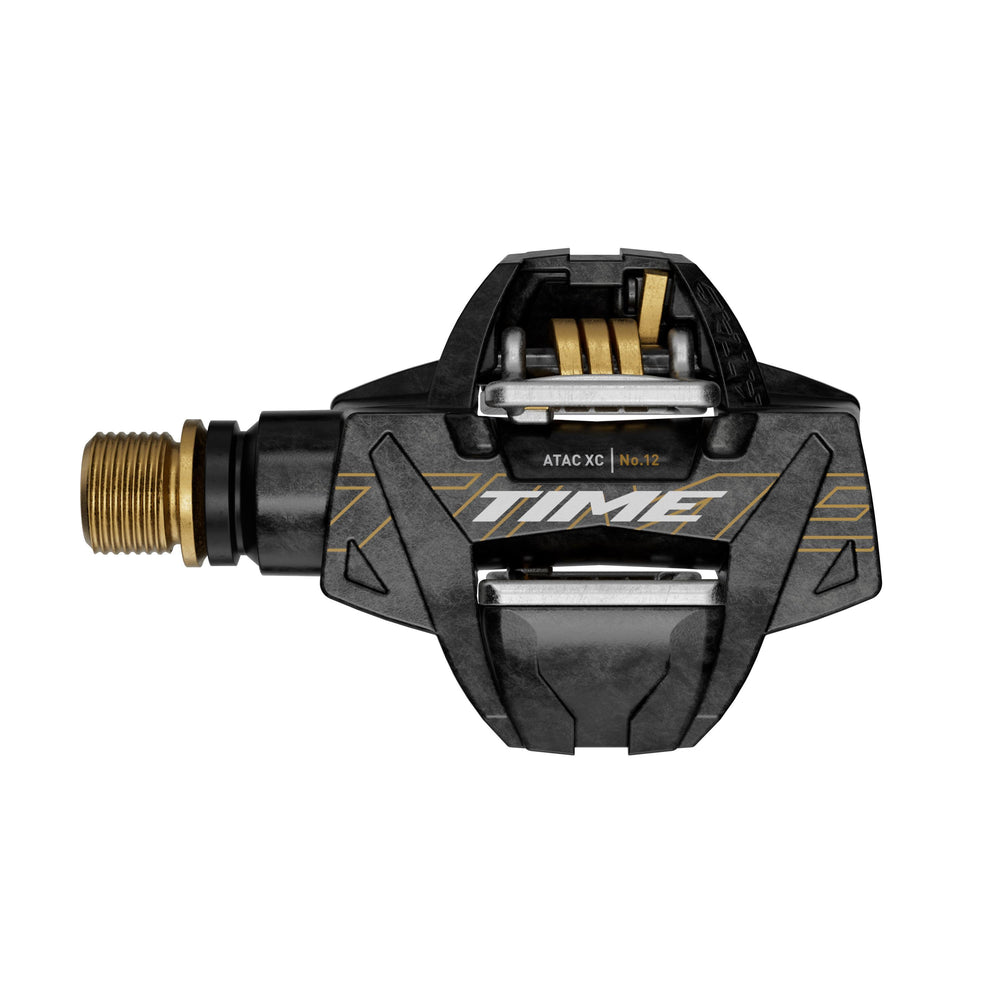

The ATAC XC 12 is our lightest off-road pedal, purpose-built for quick windup and trail speed. TIME’s premier XC pedal is also designed for your comfort thanks to an ergonomic design. It all starts with simple clip-in thanks to a wide-angle of positive cleat engagement. Once you’re in the clipped in, the features of ATAC XC 12 really kick in: Freedom of movement lateral and angular for reduced injuries and muscle fatigue. The pedal’s self-cleaning design clears mud and debris each time you step in. Light and strong with a titanium axle and carbon body, ATAC XC 12 offers easy and consistent engagement with tension adjustment to meet your pedal preference and needs. This pedal is ideal for gravel and cyclocross as well.
Features
- Ideal for XC, gravel, or cyclocross.
- Easy clip in and pedal engagement.
- Titanium axle and carbon body for light weight.
- Self-cleaning design to push out mud with step in.
- Tension adjustment.
- Cleats included with all pedal purchases.
Specifications
Axle component Titanium axle
Bearings Steel
Body component Carbon-filled
Cleats ATAC cleats
Pedal stack height 18.3mm
Angular freedom 5° to -5° with free cleats, 0° with fixed cleats
Contact surface area n/a
Distance pedal spindle / crank arm 54mm
Lateral freedom 2.5 mm or -2.5 mm
Release angle 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
Tension 3 different positions of the spring
Threading 9/16 - 20 inch
Platform Size n/a
Colour (Pedal )Carbon Gold
Accessories ATAC cleats
Intended use XC, CX, Gravel
Power Measurement Not Compatible
Weight (per pedal) 120g
