The Flow MK4 wheelset lets you do more. Since 2007, there's a reason the best riders in the world have come to us to ask for Flows. Corner harder, send it further, and carry more speed through any section of trail. Today's Flow MK4 gives you the control you need to push boundaries.
The Flow MK4 rim's patented BST-Asymmetric shape creates the most reliable tubeless seal. The rim's durable 6069 alloy construction and reinforced spoke bed, combined with the offset drilling of the asym design, builds into an incredibly durable wheel that brings added confidence to every ride. Strength and serviceability are long-standing priorities of every Stans wheel, and the Flow MK4 wheel takes those priorities further than ever before. The asym rim design allows for a single spoke length to be used on both the front and rear wheels. As with all Stans wheels, traditional J-bend spokes and lacing are used for their proven strength, ride quality, and serviceability.

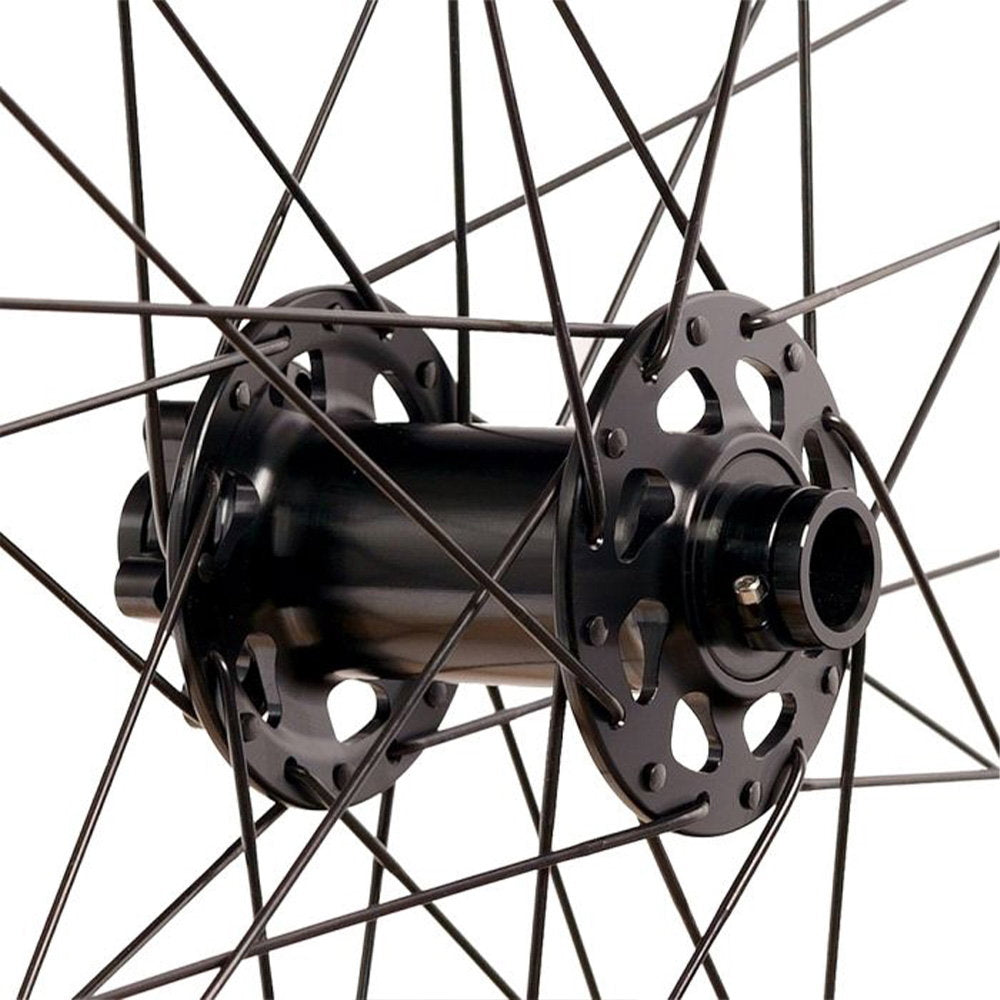

The M-pulse hubs at the heart of Flow MK4 wheels combine an absolutely bombproof magnetic locking engagement with incredibly smooth rolling. Based on the original innovative Project321 engagement system, the speed and durability of this system is unmatched. Unlike weaker pawl and spring designs, the M-pulse features six pawls with Neodymium magnets that offer virtually no resistance when coasting, but lock the pawl teeth into place far more reliably and consistently than springs. Each detail of the M-pulse hub was engineered to systematically eliminate weaknesses found in other designs. The 17mm axles are made of 7075 aluminium and roll on Enduro brand bearings, including a double-row freehub bearing tested to be far more durable than two individual separate bearings. The entire hub is also shielded, meaning no bearing seal is visible, offering superior protection for all conditions. With only 1.66of rotating required for the M-pulse hub to engage, power is always instantaneous. Multiple tooth engagement provides a greater surface area to distribute load to improve both durability and speed. The angle of the pawls was even optimized to distribute stress away from the rotating bearings. Beyond the strength and speed of engagement, M-pulse hubs feature adjustable preload, allowing a tremendous decrease in drag for less resistance and more speed.
Available with Shimano Micro Spline, HG, or SRAM XDR freehub, and 6-bolt or Centerlock brake style, with options to fit all popular axle configurations. Tubeless ready with rim tape installed.
Wide, light, strong, and tubeless, the original Flow redefined what a mountain bike rim could do. Today's Flow MK4 gives you the confidence to do even more.
WHAT'S INCLUDED:
Flow MK4 wheels include pre-installed tape for tubeless use and presta valves.
Low-profile 30mm internal width optimises tyre shape, traction, and control for 2.3-2.6in tyres
Durable 6069 aluminium with welded joint and reinforced spoke bed
BST-Asymmetric design combines Stans legendary easy tubeless inflation with a stronger, more balanced wheel build
M-pulse ultra-low drag magnetic pawl adjustable hubs with 1.66 engagement
Enduro bearings with double-row freehub bearing
Matched wheelsets use traditional J-bend lacing and share a single spoke length for easy serviceability
Connection program includes 5-year hub warranty, 3-year rim warranty, 1-year crash replacement
Specification
Rim Internal Width: 30.0mm
Rim Weight: 487g (27.5in)
Rim External Width: 33.6mm
Rim Depth: 18.9mm
Spokes: Sapim D-Light 2.0/1.65/2.0
Front Wheel Weight: 820g
Nipples: Sapim Double Square Alloy Black
ERD: 561mm, 3.0mm offset
Hub: M-pulse
ETRTO: 584x30.0
Hole Count: 32-hole
ISO: 27.5inx33.6mm
Rim Material: 6069 Aluminium Alloy
Tape: 33mm
Hub Colour: Black
Max Spoke Tension: 130kgf (1275N)
Rim Colour: Black
Max Rider Weight: 250lbs (113 kilo)
Brakes: Disc
Max Pressure with 2.30in Tyre: 39psi
Max Pressure with 2.60in Tyre: 34psi
Valve: Presta
