Crest rims are part of the history of mountain biking. Introduced in 2005, the Crest's design evolved directly from Stans earliest ideas, including the legendary 355 rims. Stan wanted a simple and durable rim that would work well without a tube and weighed less than everybody else's rims. The Crest achieved those goals. With a more durable and lighter 6069 alloy and an asymmetric rim shape that balances spoke tension, today's Crest MK4 has technology that's lightyears ahead of the early design, but the spirit of the original Crest lives on: make it light, make it serviceable, make it resist flats, and make it go as fast as possible.The BST-Asymmetric rim design of the Crest MK4 allows for a stronger wheel while offering the easy inflation and Stans trademark unmatched airtight seal. The Crest MK4 rim is optimised for 40mm Gravel tyres and up to 2.3in mountain tyres, making it a great, versatile choice for a wide range of bikes and riding styles.The durable but forgiving ride of the Crest MK4s 6069 alloy construction and lightweight, low-profile rim shape offer an unbeatable ride quality uniquely suited to Gravel and short-travel XC riding, and like all rims that bear the Crest name, its built for speed.The Crest MK4 combines the heritage of Stans legendary tubeless design with todays best materials and a stronger asymmetric design. Roll faster with more comfort and more security on your next Gravel or XC ride with the Crest MK4 rim.
25mm rim width optimised for Gravel and XC tyres up to 2.3in
Light and durable 6069 aluminium with welded joint and reinforced spoke bed
BST-Asymmetric design combines Stans legendary easy tubeless inflation with a stronger, more balanced wheel build
3-year rim warranty with 1-year crash replacement
Specification

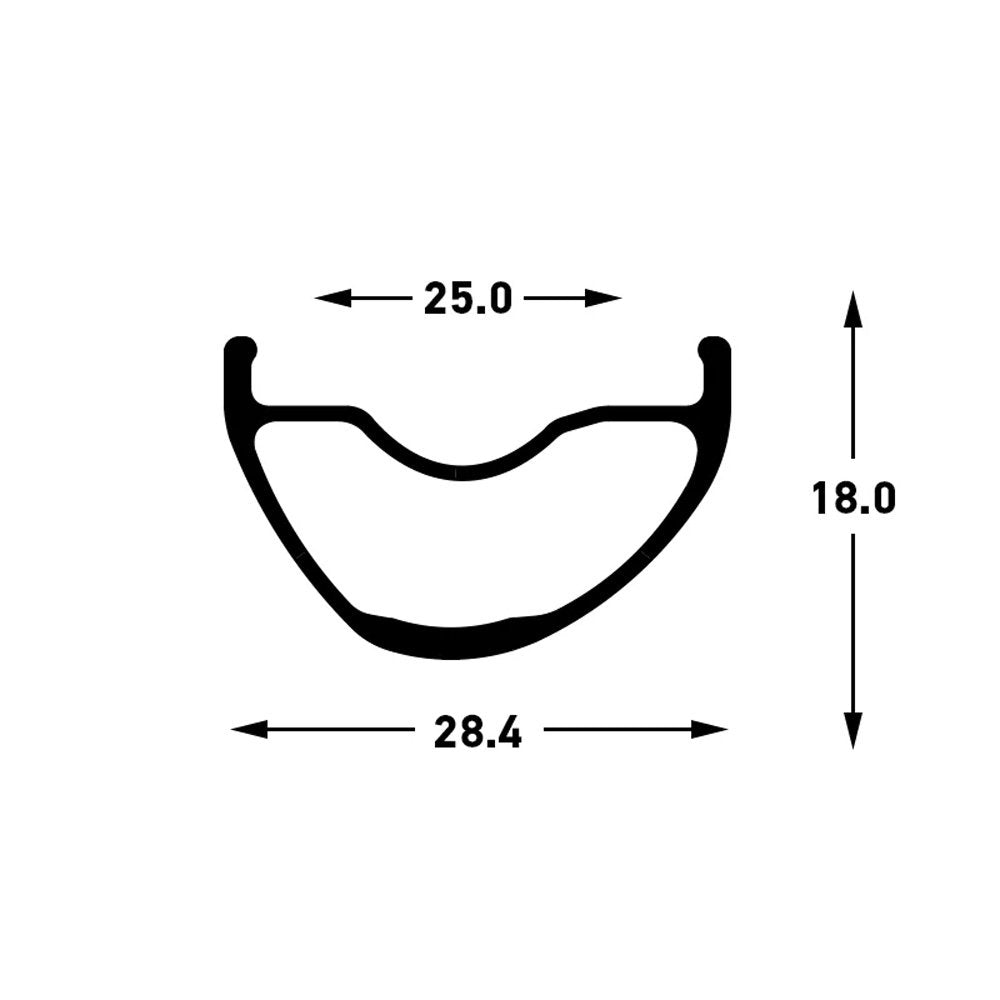

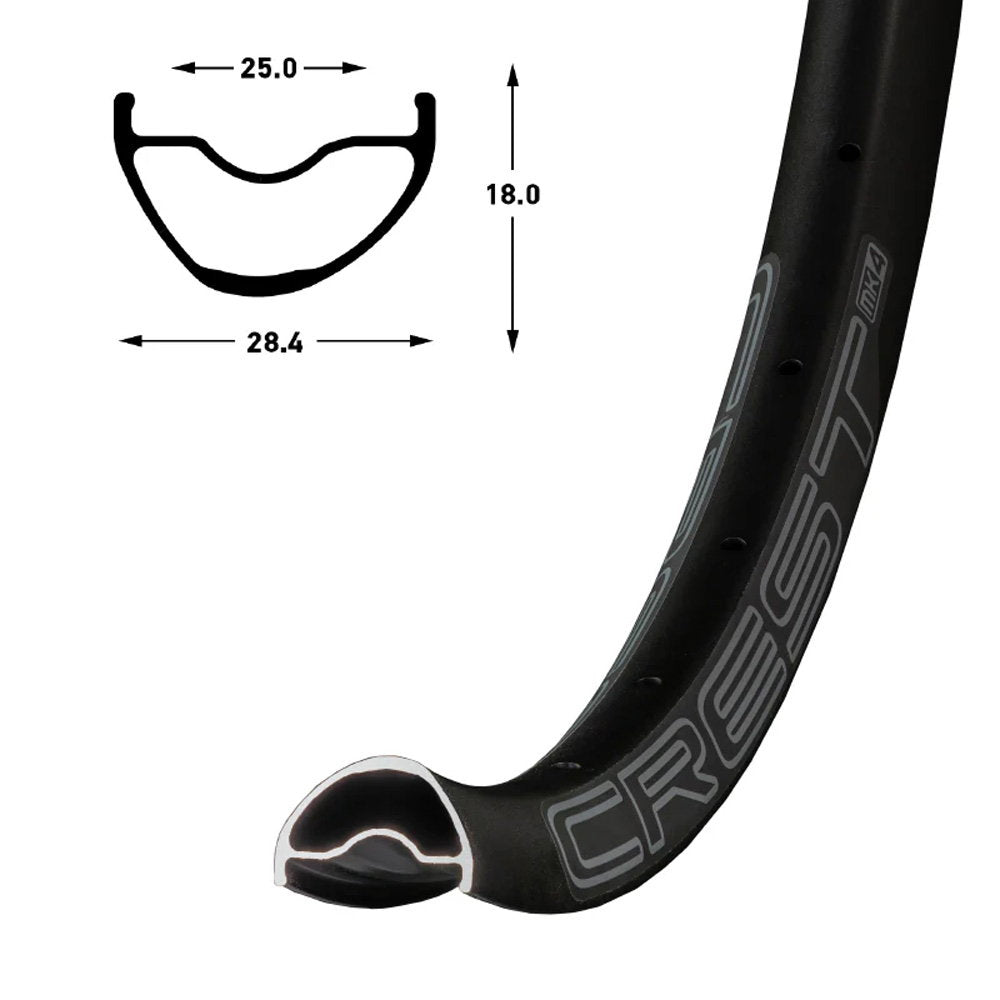

Rim Internal Width: 25.0mm
ETRTO: 507x25.0 (24in)/ 559x25.0 (26in)/ 584x25.0 (27.5in)/ 622x25.0 (29in)
Rim External Width: 28.4mm
ISO: 24inx28.4mm/ 26inx28.4mm/ 27.5inx28.4mm/ 29inx28.4mm
Rim Depth: 18mm
Tape: 27mm
Hole Count: 24-hole(24in), 28-hole or 32-hole (26in, 27.5in, 29in)
Valve: Presta
Rim Colour: Black
Max Spoke Tension: 115kgf (1130N)
Material: 6069 Aluminium Alloy
Max Pressure with 40c Tyre: 55psi
Brakes: Disc only
Max Pressure with 2.00in Tyre: 46psi
ERD: 486mm, 1.5mm Offset mm (24in)/ 538mm, 1.5mm Offset mm (26in)/ 563mm, 1.5mm Offset (27.5in)/ 601mm, 1.5mm Offset (29in)
Rim Weight: 323g (24in)/ 357g (26in)/ 374g (27.5in)/ 399g (29in)
