When you're looking for a lightweight Gravel and XC wheelset built to roll fast and last forever, the aluminium Crest MK4 is your wheelset.
"Crest" is the name Stan gave one of his original rim designs, and today it belongs to one of the most advanced rims made. Built of 6069 alloy and featuring a reinforced spoke bed and welded seam, the 25mm wide Crest MK4 rim is made to handle both the higher pressures of 40mm gravel tyres, as well as the lower pressures of 2.3in mountain bike tyres. The asymmetric design of the Crest MK4 rim improves spoke angle to create a stronger wheel, while still offering the easiest to inflate and most reliable airtight tubeless seal found only on Stan's patented Bead Socket Technology rims. Built for people who ride, by people who ride, the Crest MK4 wheelset relies on the proven strength of traditional J-bend spokes. As part of Stan's commitment to make easily serviceable wheels a rider can own for many years, all MK4 series wheels that are the same diameter share a single, very common, spoke length. Front and rear and both sides all use a single length, making replacing damaged spokes as easy as possible.

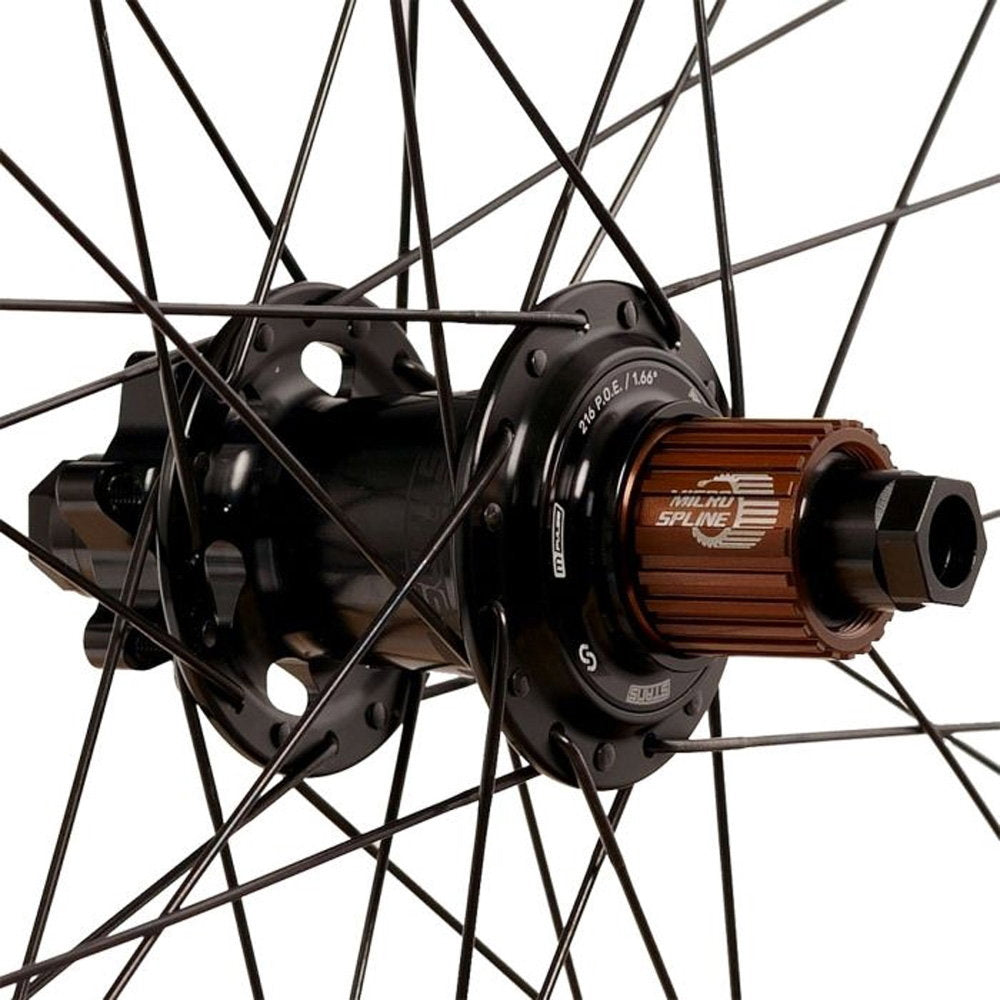

A legendary rim deserves a legendary hub, and the Crest MK4's M-pulse hubs deliver. Designed in partnership with Project321, and CNC machined in their Bend, Oregon shop, M-pulse freehubs use an innovative Neodymium magnetic pawl design that offers an incredibly positive and reliable engagement with virtually no drag. Unlike traditional pawl and spring designs that create unnecessary friction when not engaged, the magnetic pawls of the M-pulse hub are at their strongest when engaged while minimising drag when disengaged. Multiple teeth on the pawls distribute load to increase strength and durability even more, while a full set of Enduro bearings and 7075 alloy 17mm axle allow the M-pulse to handle more than twice as much force as Stan's previous hub designs. The shielded design of the M-pulse hubs also protects the bearings from direct exposure to the elements for even longer bearing life. But the real beauty of the M-pulse hubs is their low rolling resistance and engagement speed. An easily adjustable bearing preload feature makes it fast and simple to fine-tune M-pulse hubs for reduced friction and less resistance. All this in a hub that engages with only 1.66° of rotation for instant acceleration.
Available with Shimano Micro Spline, HG, or SRAM XDR freehub, and 6-bolt or Centerlock brake style, with options to fit all popular axle configurations. Tubeless ready with rim tape installed.
With a lightweight asymmetric tubeless rim laced to one of the most reliable and fastest-rolling hubs made, the Crest MK4 sets the bar for Gravel and XC wheelsets.
WHAT'S INCLUDED:
Crest MK4 wheels include pre-installed tape for tubeless use and presta valves.
25mm rim width optimised for Gravel and XC tyres up to 2.3in
Light and durable 6069 aluminium with welded joint and reinforced spoke bed
BST-Asymmetric design combines Stan's legendary easy tubeless inflation with a stronger, more balanced wheel build
M-pulse ultra-low drag magnetic pawl adjustable hubs with 1.66° engagement
Enduro bearings with double-row freehub bearing
Matched wheelsets use traditional J-bend lacing and share a single spoke length for easy serviceability
Connection program includes a 5-year hub warranty, 3-year rim warranty, and 1-year crash replacement
Specification
Rim Internal Width: 25.0mm
Rim External Width: 28.4mm
Rim Depth: 18.0mm
Spokes: Sapim D-Light 2.0/1.65/2.0
Nipples: Sapim Double Square Alloy Black
ERD: 601mm, 1.5mm Offset (29in)
Hub: M-pulse
ETRTO: 622x25.0 (29in)
Hole Count: 32-hole
Rim Material: 6069 Aluminium Alloy
Tape: 27mm
Hub Colour: Black
Max Spoke Tension: 115kgf (1130N)
Rim Colour: Black
Brakes: Disc
Max Pressure with 40mm Tyre: 55psi
Max Pressure with 2.00in Tyre: 46psi
Max Pressure with 2.30in Tyre: 39psi
Valve: Presta
