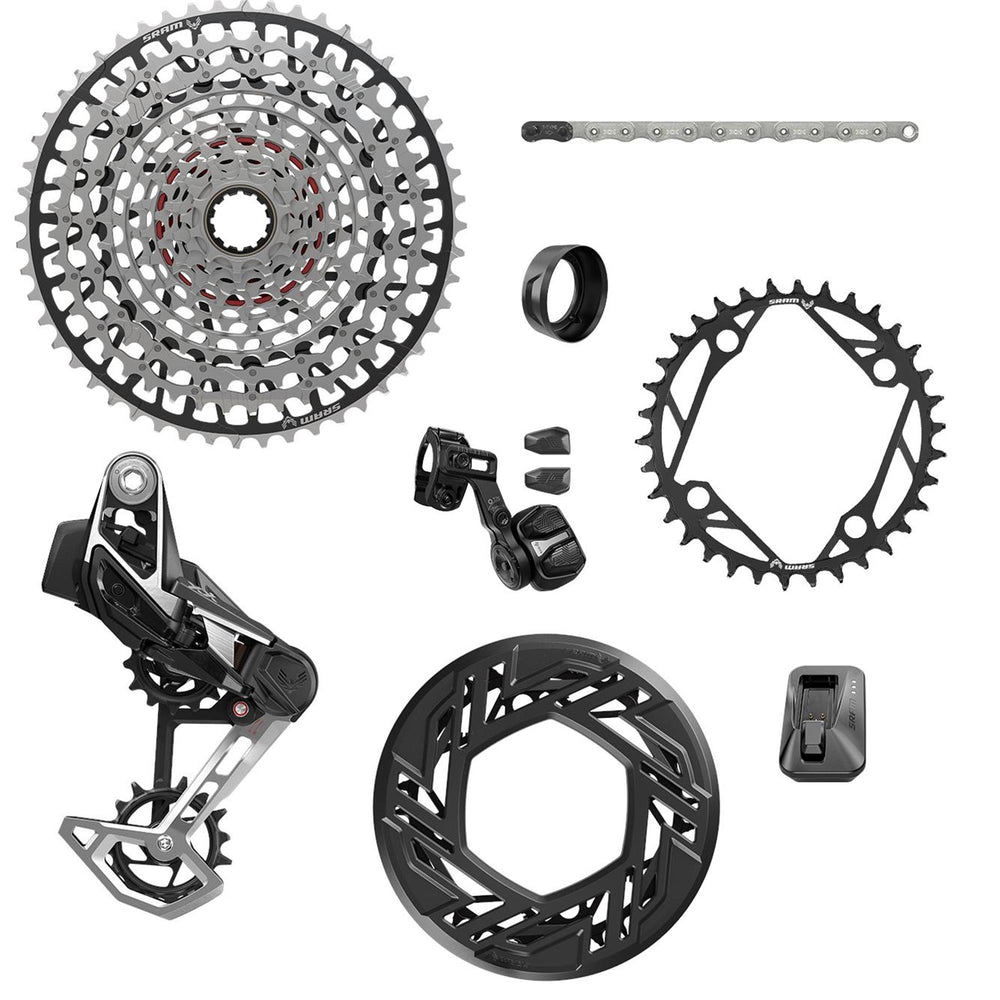

The XX Eagle AXS E-Bike Transmission Groupset delivers the perfect balance of robustness and weight savings, giving riders the strength needed for long enduro days without unnecessary bulk. Built around the next generation of Eagle Transmission, the system takes a fully synchronised, holistic approach to shifting—every component working together to create a smoother, more stable ride experience across demanding E-MTB terrain.
Shifting under load is a major advantage of the XX cassette. Thanks to a combination of X-SYNC technology and precise cassette mapping, the drivetrain delivers clean, uninterrupted shifts even during peak power outputs from both the rider and the motor. The XX ISIS cranks—available for Bosch and Brose systems—are derived from proven designs, now updated with new T-Type chainrings and supplied with a clip-on guard for added protection on rugged trails.
The XX Eagle Transmission Flattop Chain is engineered specifically for Eagle Transmission. Its distinctive flat-top shape maximises shifting performance, durability, and chain stability while giving the bike a modern aesthetic tailored to high-performance E-MTBs. The AXS Pod Ultimate controller finishes the system with its intuitive “click and fire” two-button interface, giving riders a more precise and personalised control experience across all AXS components.
Features
• Bosch and Brose variants
• Available with 165 mm crankarm and 36T chainring
• Includes clip-on guard
• Bashguard compatible
• XX Eagle Transmission derailleur
• 10–52T XX Eagle Transmission cassette
• XX Transmission Flattop chain
• Pod Ultimate controller
• Power meter variant available
• AXS battery and charger included
Specifications
Rear Derailleur: XX Eagle AXS T-Type
Shifter Right: Pod Ultimate Concave
Crank: XX Bosch ISIS / XX SRAM-Brose ISIS
Crank Arm Length: 165 mm
Chainring: 34T 104 / 36T Direct Mount
Guard Included: Yes – Aeroguard
Chain: XX T-Type 126
Cassette: XS-1297 T-Type 10–52
Battery Included: Yes – 1
Charger Included: Yes
Tool Included: No
