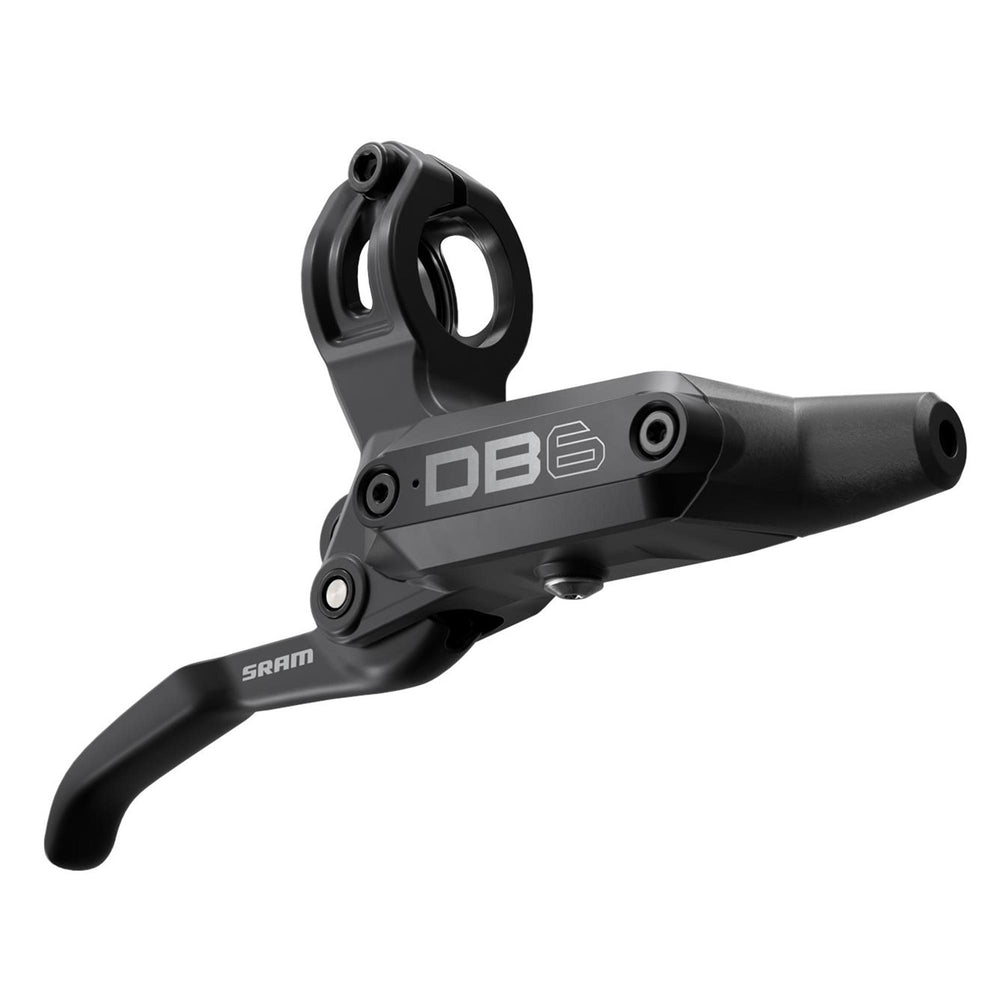

Pairing heavy-duty power with a modern integrated cockpit, DB6 brakes lets you focus on the ride. The low maintenance Mineral Oil system uses all new lever architecture which features easy adjustment access and ergonomic comfort. The right and left specific stealth lever body design brings the hose parallel to the bar, allowing for an organized cockpit that pairs perfectly with mechanical Eagle Transmission. Consistent heavy-duty power is no surprise, as DB6 shares the same proven caliper architecture as DB8.
Features
- Stealth lever architecture pairs perfectly with mechanical Eagle Transmission shifters.
- Left and right specific levers feature tooled lever reach adjust.
- Split ring clamp compatible with SRAM MMX-compatible shifters and Dropper Lever.
- Code-like heavy-duty power.
- Uses existing SRAM Large brake pads.
- Designed for use with Maxima Mineral Oil only.
- Designed for use with SRAM Mineral Oil Bleed Kit only.
SPECIFICATIONS
- Application (DB) MTB
- Brake type Hydraulic
- Blade material Aluminium
- Color (DB) Diffusion Black Anodized
- Rec MMX clamp (not included) n/a
- Orientation Left, Rear
- Pad type (Disc) Steel-backed organic
- Bracket (Disc Brake) Direct mount DIR
- Hose length (mm) 2000mm
- Rotor (AM only) n/a
- Pistons 4
- Piston material Phenolic Plastic
- Rotor type recommended 1-piece CenterLine
- Clamp Included (DB) Yes – Single Bolt Clamp
- Weight (g) 364
- Weight Based On Rear, Stealth-a-majig, DIR, 1800mm, w/pads & clamp(no mounting hardware, no pad spacer, no rotor/bolts)
