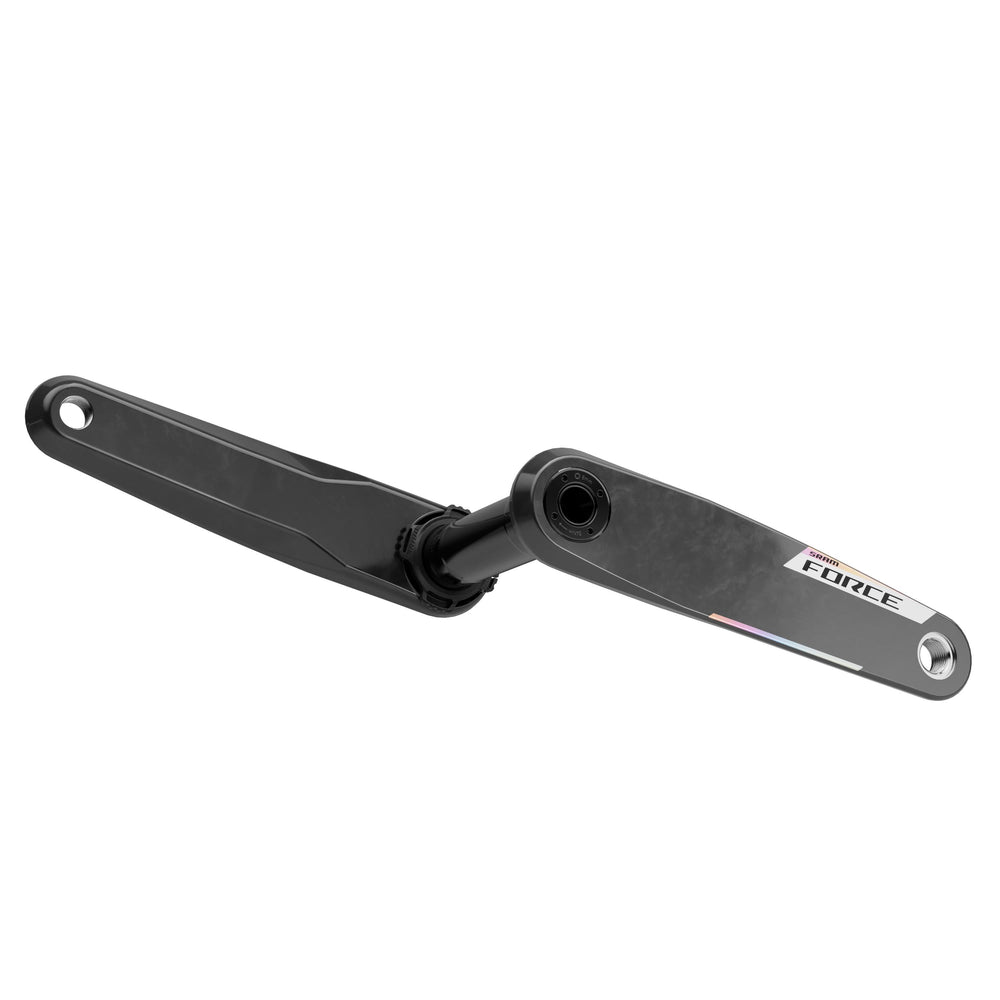

SRAM Crank Arm Assembly FORCE E1 DUB (BB/Chainrings not included)

Form and function. The design of the Force crankarm is a wonder of carbon; light and stiff to effortlessly propel you forward. Available in lengths from 160 to 175 mm and in standard and Wide Q-factor so every rider can achieve their proper fit. The 8-bolt interface will fit any SRAM AXS spider or integrated chainring, with or without power. The light, stiff, and durable DUB spindle interface also fits nearly any frame.

Features

• 8-bolt interface compatible with power and non-power AXS spiders and integrated chainrings
• DUB bottom bracket adds durability and simplicity
• Carbon fiber arms with gloss finish

SPECIFICATIONS

Speeds 12, 13
BB Compatibility All SRAM Road DUB BBs
Crank arm length 160mm, 165mm, 170mm, 172.5mm, 175mm
Chainline 44.7mm, 47.5mm
BB Spindle Interface DUB
Bolt Circle Diameter (BCD) Direct Mount (DM)
Crank arm material Carbon
Colour (Crank arm) Black
