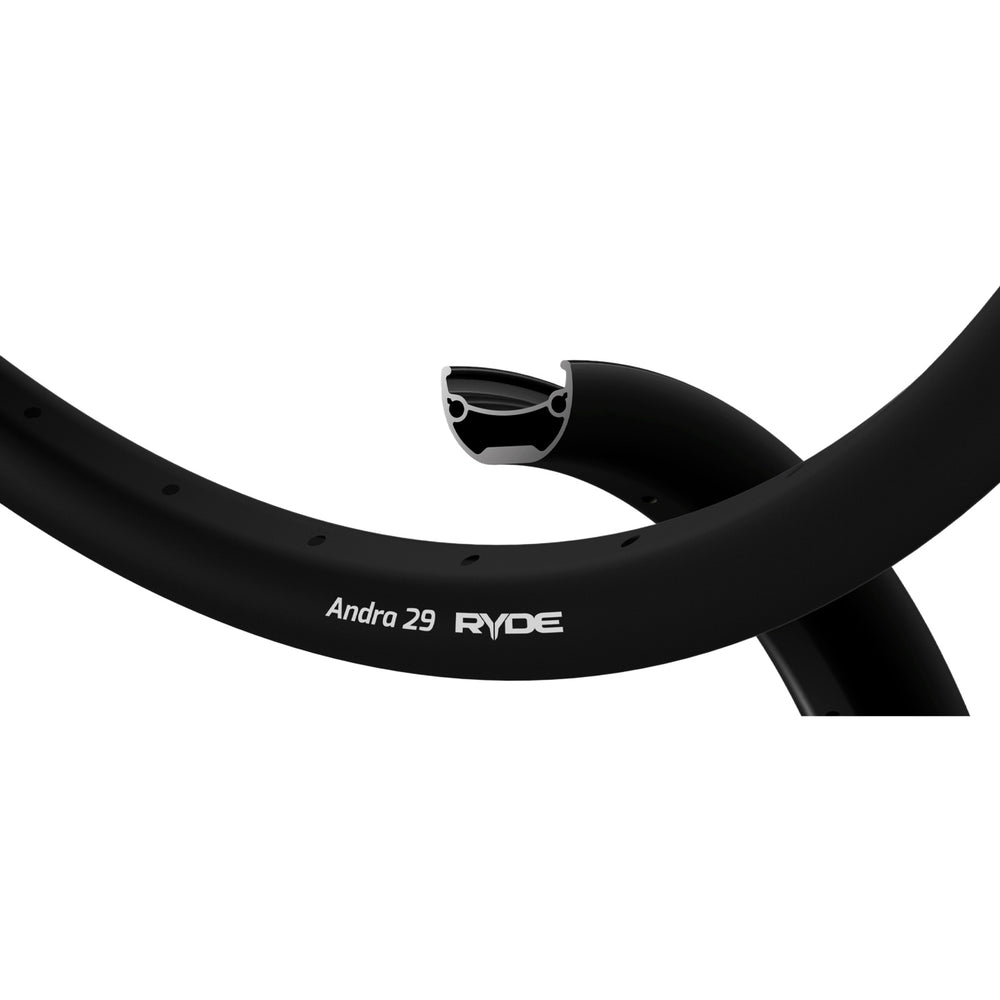

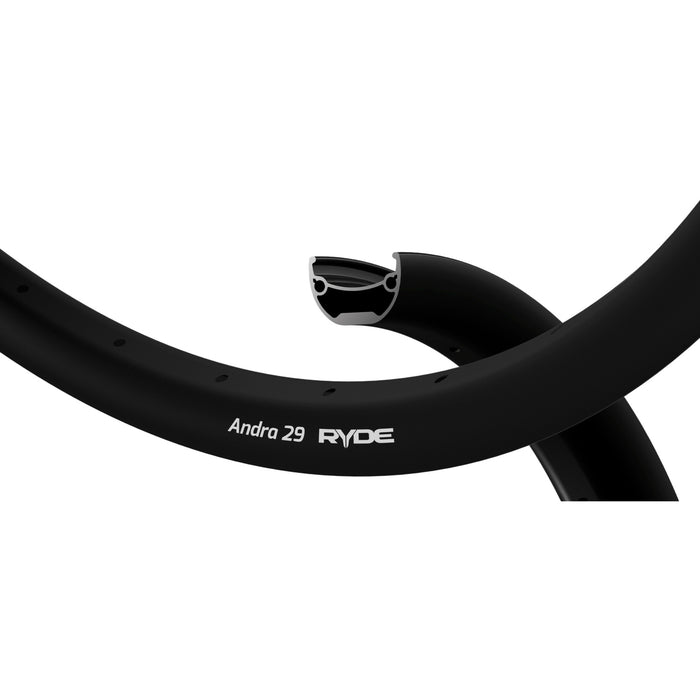

The Andra 29 Disc was developed to stand loads up to 150kg.

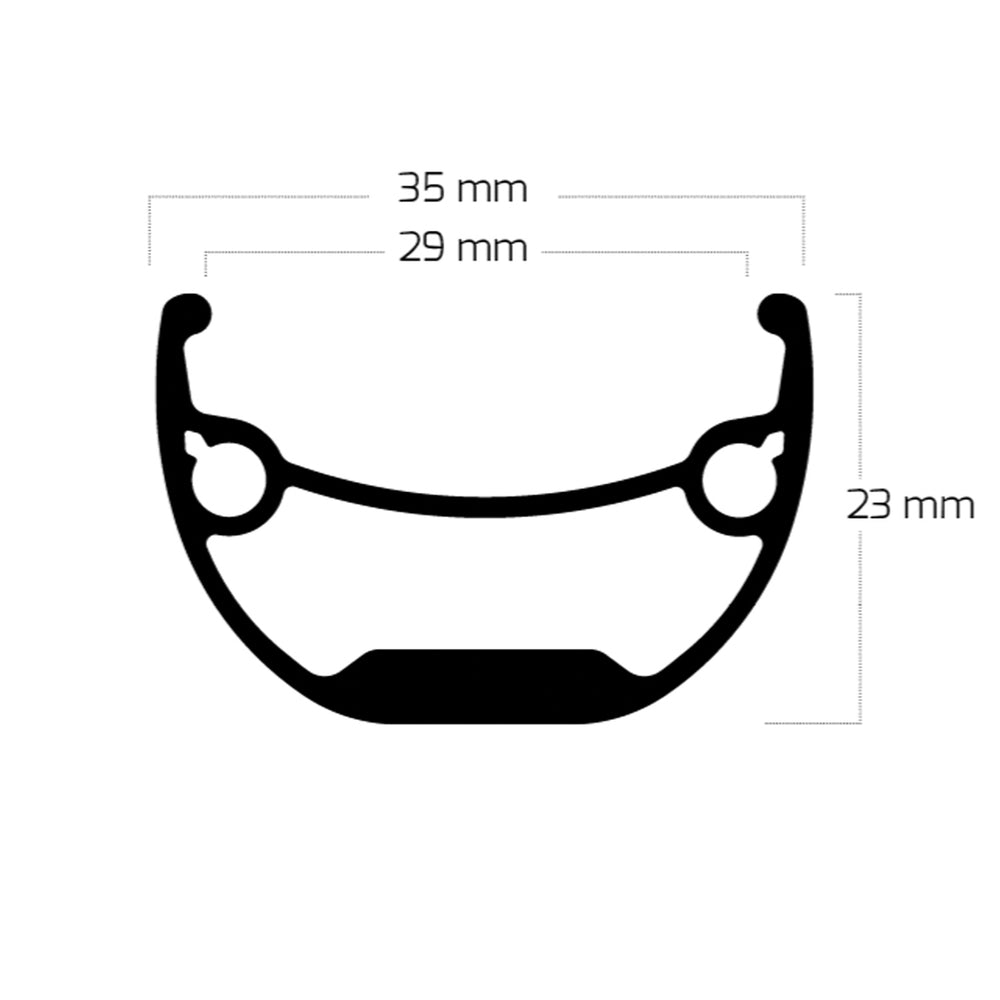

With 29 mm internal width, this is the disc version of the Andra 29, a rim ideal for the most modern e-cargo bikes and wide tires trends. The thick, wide nipple bed allows different drilling patterns, perfect to be used with electric hubs. Even 2mm offset drilling is available.
ANDRA SERIES
The Andra rims can be ordered in many different wheel sizes and with the drilling angle for the spoke holes optimized for the hub and application. All Andra rims are built to withstand and carry more load than regular rims and can ideally be used for not only regular e-bikes, but also transport bikes with or without motor support.
SPECIFICATIONS
- SHAPE: double wall
- JOINT: pin
- TIRE USE: tube
- HOOK TYPE: crotchet
- BRAKE TYPE: disc brake
- ETRTO: conform
- SIZE (MM): 622
- WEIGHT (GR): 927
- ERD (MM) (ID -2mm): 597
- ALUMINIUM GRADE: 6106T6
- SURFACE TREATMENT: powder coated
- DIA. SPOKE HOLE NIPPLE BED (mm): 5,5
- DIA. SPOKE HOLE TIRE BED (mm): 9
- ANGLE RAD/AXI: 8/2 degrees
- ZIG ZAG (MM): 2
- NIPPLE HOLE TYPE: ID
- VALVE HOLE Ø (MM): 8,5
- PATTERN: french
- MAX. SPOKE TENSION (N): 1400
- TIRE WIDTH (MM): 47-71
- AXLE LOAD (KG): 150
- SPOKE: 14G
Suitable for E-Bikes
