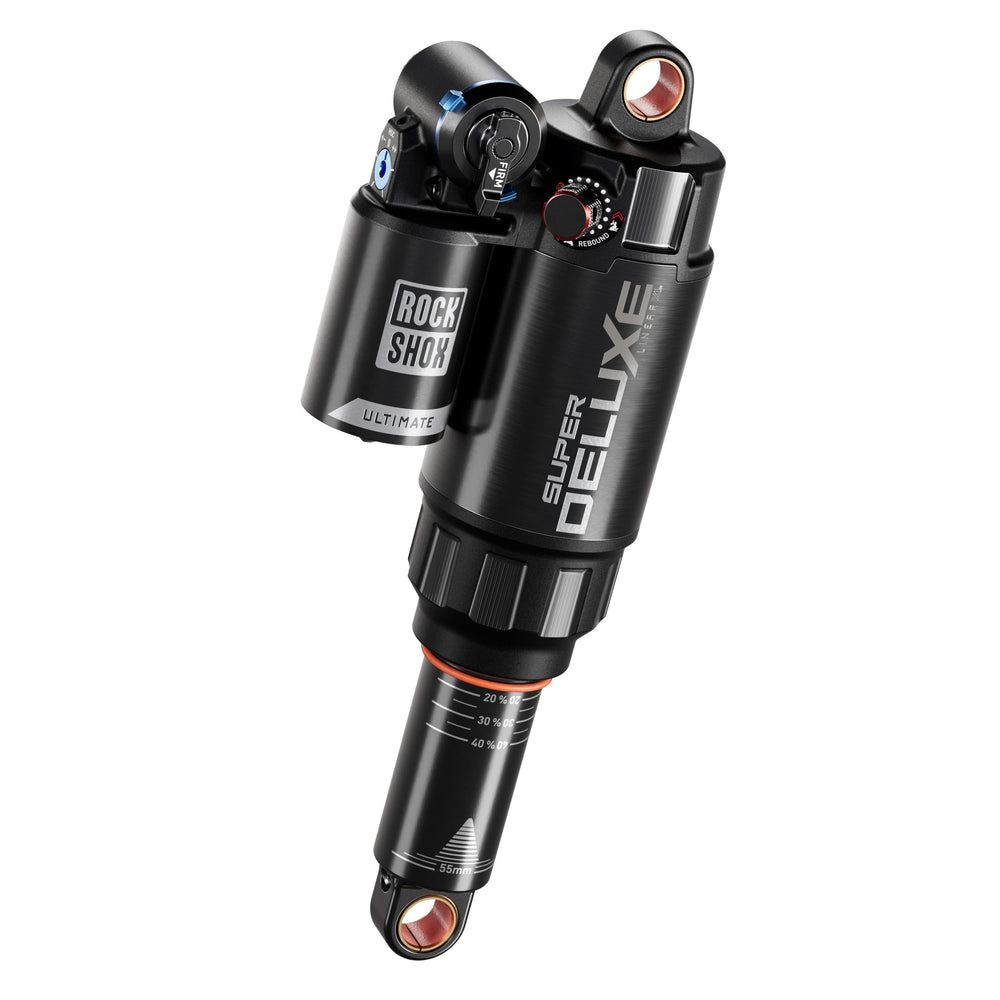

Super Deluxe Ultimate combines race-proven performance with a highly tunable platform, making it adaptable to a wide range of frames and riding styles. Built for everything from downcountry to enduro, it delivers consistent control and responsiveness across varied terrain.
The LinearXL air spring provides a predictable, coil-like feel with improved support through the stroke and a revised bottom-out system for confident end-stroke control. The updated RC2T damper features intuitive high- and low-speed compression adjustment, while a redesigned main piston tune aligns performance with Charger 3.2 characteristics for improved mid-stroke support. With increased maximum pressure capacity and refined internal damping, Super Deluxe Ultimate delivers smooth, controlled performance for a broad range of rider weights and conditions.
Features
• LinearXL air spring delivers consistent ride feel with adjustable progression using o-ring tokens
• RC2T damper provides independent low- and high-speed compression adjustment without cross-talk
• Numbered compression adjuster allows quick and intuitive setup changes
• Base valve reduces IFP forces for improved small-bump sensitivity and traction
• Main piston compression tuning enhances mid-stroke support
• Jounce bottom-out bumper with optional hydraulic bottom-out reduces harsh impacts
• Removable rebound knob doubles as high-speed compression adjuster
• Increased maximum pressure supports higher system weights
• Wide rebound adjustment range with 15 clicks for consistent control
• Optional bearing adapter available for standard eyelets
Specifications
Damper type: RC2T, RC2T Hydraulic Bottom Out
Rebound tune: R25, R55
Compression tune: C26, C30, C34, C37
Lockout force: X45
Shaft eyelet: Standard, Trunnion
Body eyelet: No bushing, No bushing – 90° rotation, Standard
E-bike approved: Yes
Bottom out: Hydraulic Bottom Out, n/a
Weight: 530 g
Weight reference: 210×55, no hardware installed
