Praxis BB M30 MTB 73mm BB30/PF30 R-Collet

The Praxis Works M30 bottom bracket converter is designed to be a proper bottom bracket BB for installing Praxis M30 cranks (with a 30/28mm stepped spindle) in either BB30 or PF30 MTB frames. High-grade Enduro 2437 bearings are fully sealed and are a fantastic replacement BB for your Praxis cranks. Our patent pending design keeps the cartridge bearings outboard of the frame right on for greater rigidity and free of frame/c-clip tolerance issues that other conversion bb systems deal with.

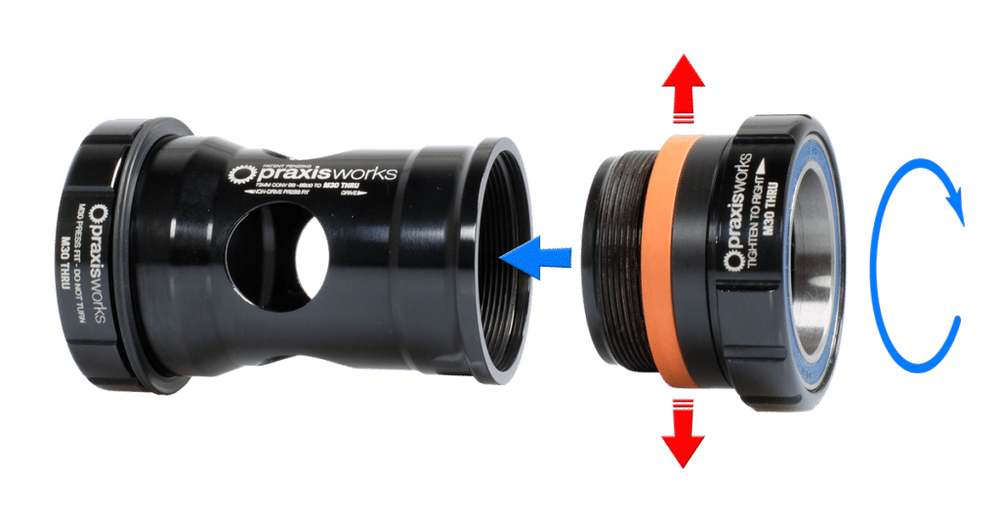

Simply press in the longer non-drive-cup, then the shorter drive cup threads into it. As the drive cup threads in, our trademark Collet system expands to a precise limit evenly dispersing pressure for a super tight fit. With both cups connected and our collet set exactly to spec, there is no chance the bearings can come out of alignment or wiggle/walk out of the frame. This bb converter design also uses a compressible o-ring on the non-drive side cup to compensate for frame shell width discrepancies.

TECHNOLOGY

For M30 spindle based cranks only.

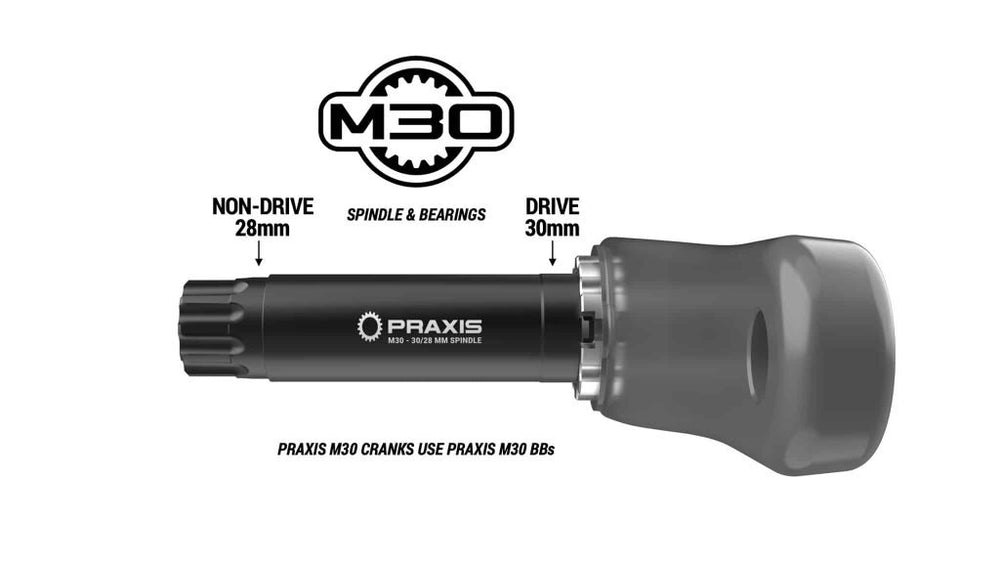

30mm Drive bearing / 28mm Non-Drive bearing.
Patent Pending Outboard Bearing Design.
Collet style non-drive cup expansion for wiggle-free press.
Non-Drive O-Ring compensates for frame width discrepancies.

VIP NOTES

Not for BBRight, 386EVO, Cannondale BB30A/PF30A or Specialized OSBB Aluminium frames.
Frame shell cannot have any inner shell obstructions (like cable guides/screws) that prevent BB from installing.
73mm MTB version cannot be used for Road Cranks.
M30 BB tool for installation - sold separately.
MTB Guides - ISCG05 Good, ST Mounted Good, ISCG03 Not Good.

WARRANTY

Praxis Works warrants components to be free from defects in materials or workmanship for a period of 2 years after original purchase. Howe'ver, there are limitations as nothing lasts forever so please read our

Warranty Page

Specification

For M30 spindle based cranks only.
Forged & machined heat-treated 7075 T6 Aluminium.
Enduro 2437 steel cartridge bearings.
73mm MTB.

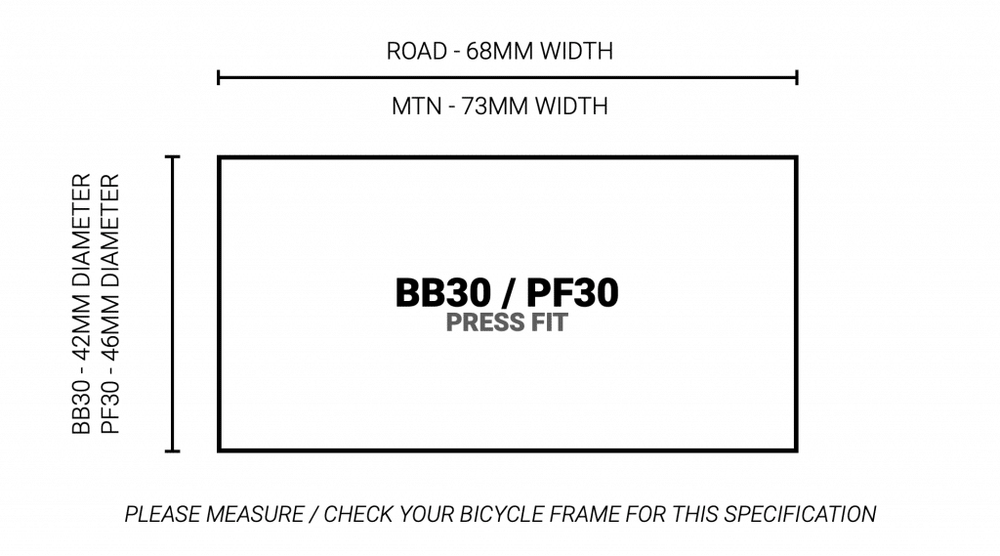

For BB30 or PF30 frames.
INSTRUCTIONS HERE
