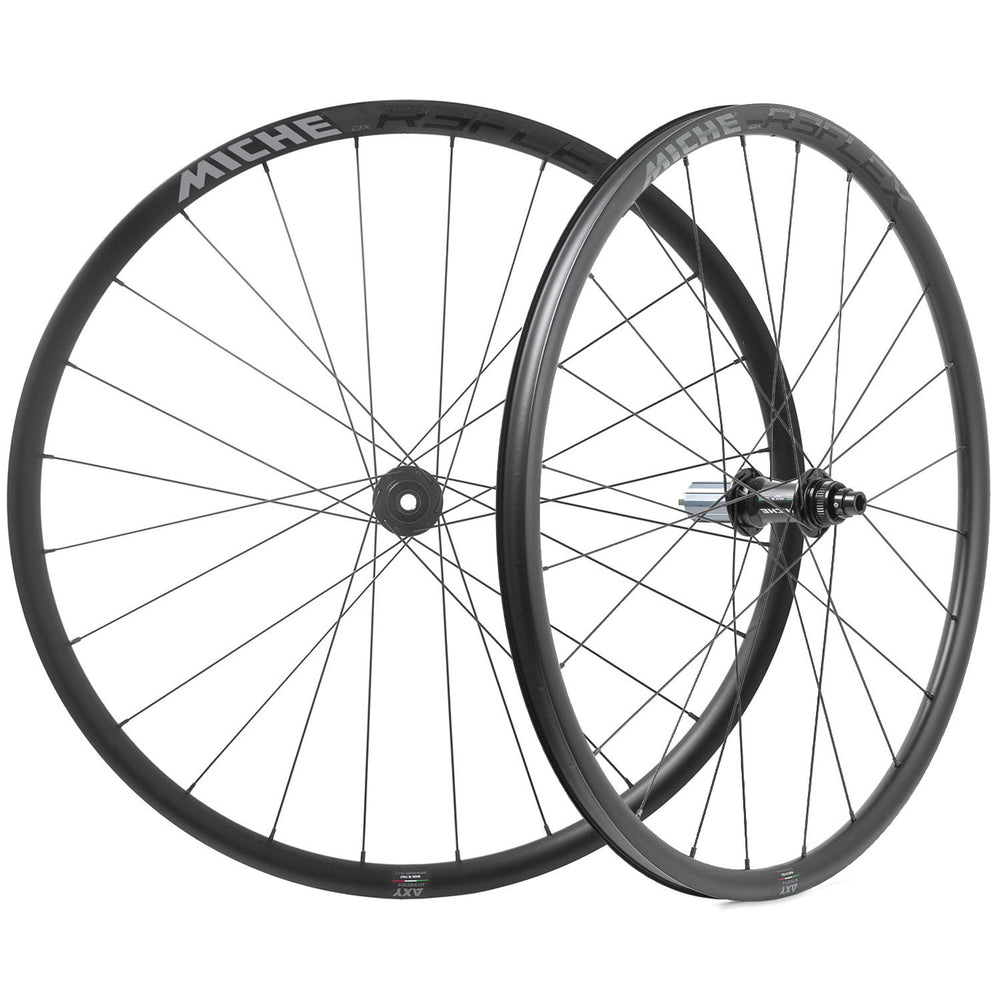

Reflex Wheels Program offers wheels sets ideal for everyday use. They are developed and built with aluminum rims, with light-alloy CNC machined hubs bodies and high-smoothness bearings to ensure maximum smoothness and a long life running. The choice between rim-brake and disc-brake widens the range's choice and versatility. The DX Reflexes for disc brakes are also tubeless compatible.
Anodised alloy rims with a 15C section optimised for use with tires from 23mm to 28mm, CNC machined for perfect parallelism of the braking areas. Stainless steel spokes with radial pattern front wheel and 14x2 pattern rear wheel for the best traction loads distribution.
Alloy hubs, forged and CNC machined. Rear hub smoothness can be easily adjusted through a special ring, even with the wheel mounted, same as for the higher range wheels.
Hubs made of forged alloy, CNC machined with a conical shape and medium flange for better performance and lightness, spokes pattern 12+12 with double-butted spokes to ensure better stiffness and responsiveness of the wheels. Simplified adjustment of the rear hub smoothness - also with the wheel mounted - through a special ring nut. To fix the brake disc rotor, use only the original Shimano lock ring for thru axle with 27mm hole.
Hubs
- Front And Rear Body: AL 6061 T6
- Axle: AL 7075 T6
- Bearings: Miche Sealed Cartridge 2 front 4 rear
- Disc system: Shimano Centre-Lock (Lockring not included) / Optional ISO 6 Hole with adaptors
- Freewheel body: AL 7075 T6
- Compatibility: Shimano/SRAM, Campagnolo
- O.L.D: 100mm / 142mm
- Type: TX12/TX12 (QR adapters available separately)
Rims
- Material: Lightweight Alloy
- Rim height: 25m Asymmetric
- Width: Outer - 22mm ETRTO 622x18C
- Clincher
Spokes
- Material: Sapim Stainless Steel Black
- Shape: J-Bend, round 2mm
- Nipples: Sapim Brass Black
- Spoke Count: 12 + 12 front and rear
