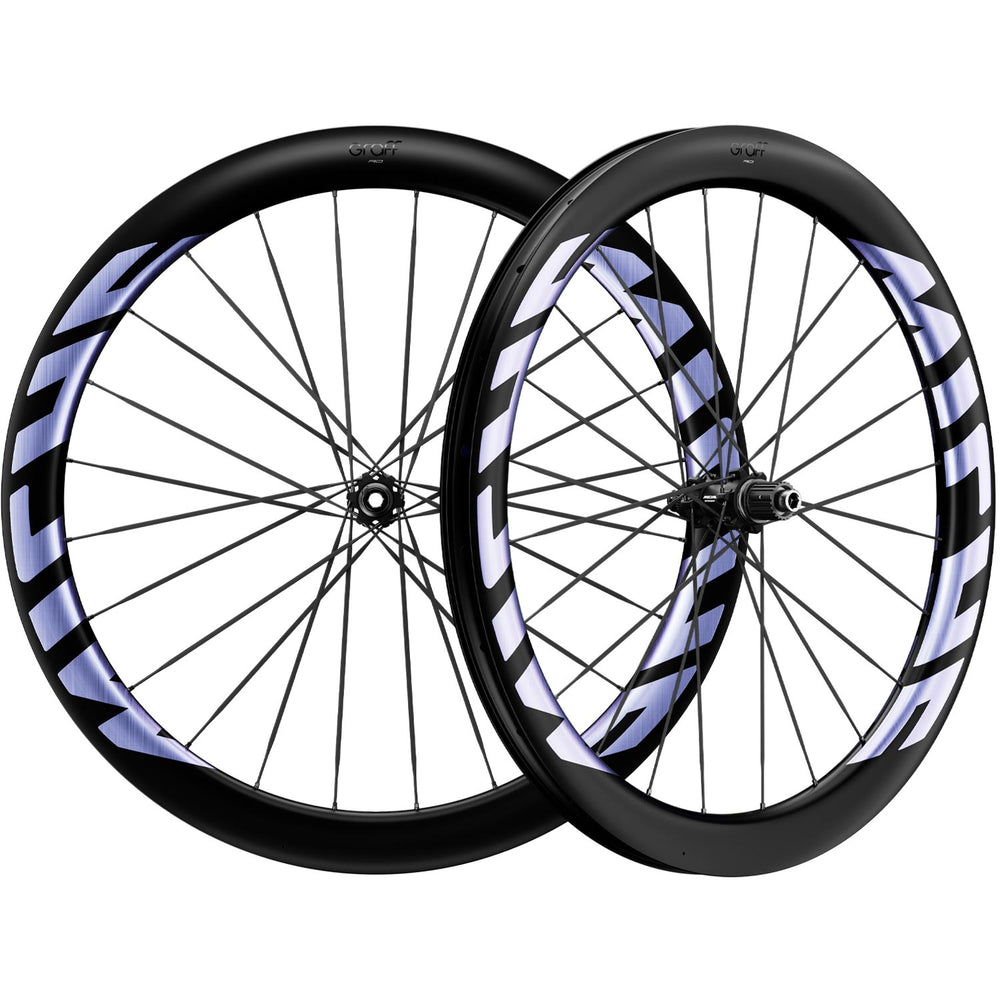

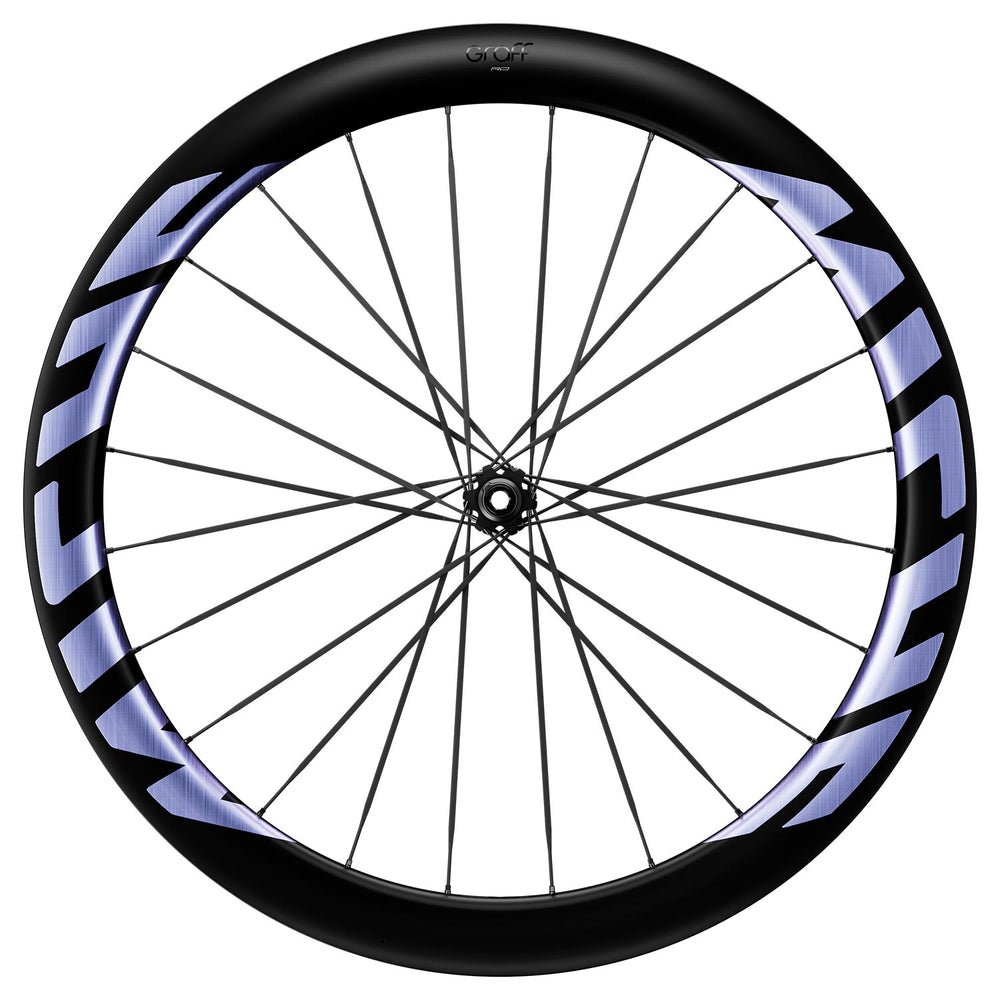

The Miche Graff RD is a Race Division carbon gravel wheelset engineered for competitive gravel riders who demand genuine aerodynamic performance, low weight and the durability to handle the most demanding off-road conditions at speed.

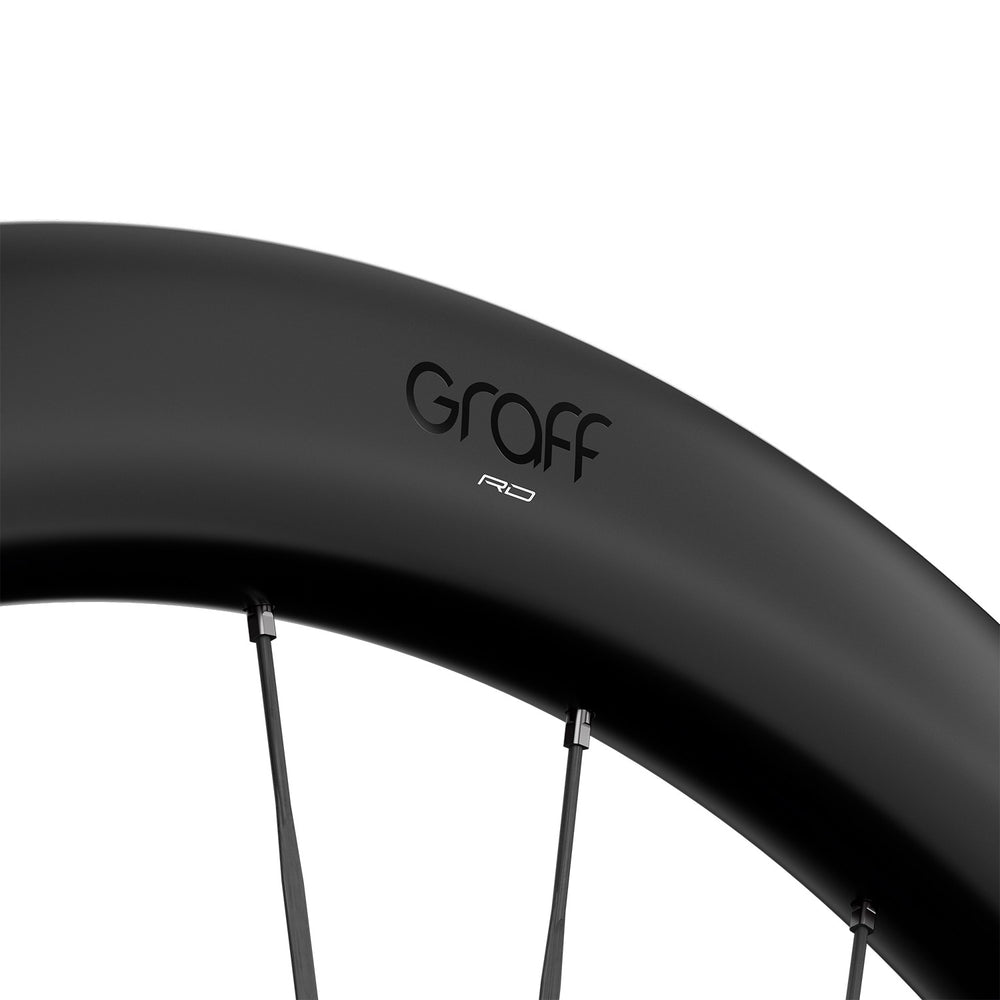

Developed in collaboration with professional gravel athletes and validated across events including The Traka, Unbound Gravel and the UCI Gravel World Series, the Graff RD was built from the ground up to meet the demands of modern gravel racing. The 52mm hookless carbon rim features a redesigned NACA airfoil profile with a 30mm internal width, wind tunnel tested with 47mm and 50mm tyres across yaw angles from -20 to +20 degrees. The results confirm a reduction in aerodynamic drag of up to 6.92% at 30 km/h compared to the previous Graff Aero 48, consistently across every configuration tested. The reinforced shoulder section provides meaningful impact resistance against stones, roots and rough terrain impacts that gravel racing demands, while the hookless design keeps rim weight low without compromising structural integrity.
Vonoa carbon spokes in a 4x1mm aero profile and 12+12 configuration are carried over from the Deva RD road wheelset and refined specifically for gravel use, where lateral loads and vibrations are significantly greater. The result is a wheelset that weighs approximately 75g less than the Graff Aero 48 while improving the stiffness-to-weight ratio for more direct power transfer and precise handling. Every Graff RD is designed and manufactured entirely at Miche's facility in San Vendemiano, Italy.
Technical Specifications
- Weight: 1455g (Tubeless ready +20g Valve Included)
- Compatibility: Shimano HG, Shimano MicroSpline and Sram XDR, Campagnolo N3W
- Tyre Type: Tubeless

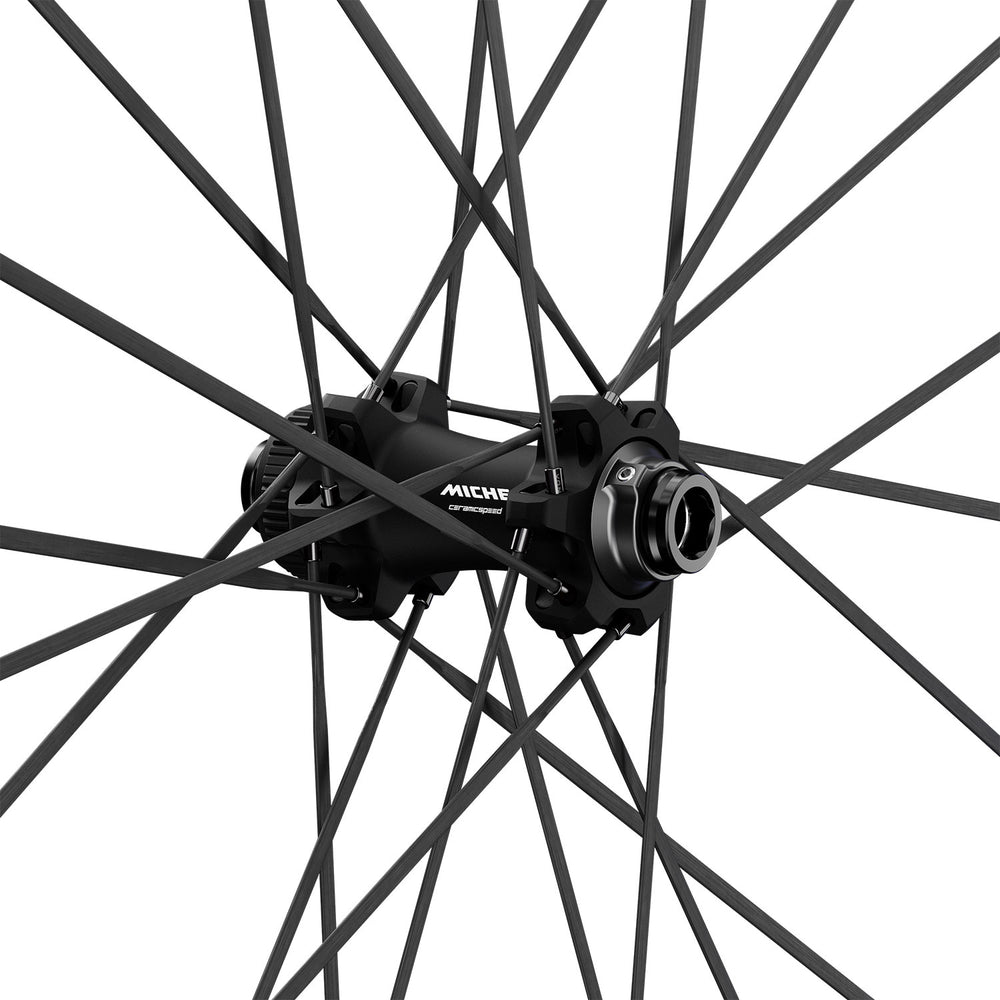

- Hubs: AL 7075 T6 CNC
- Bearings: CeramicSpeed Alpha
- Rim Profile: 52mm

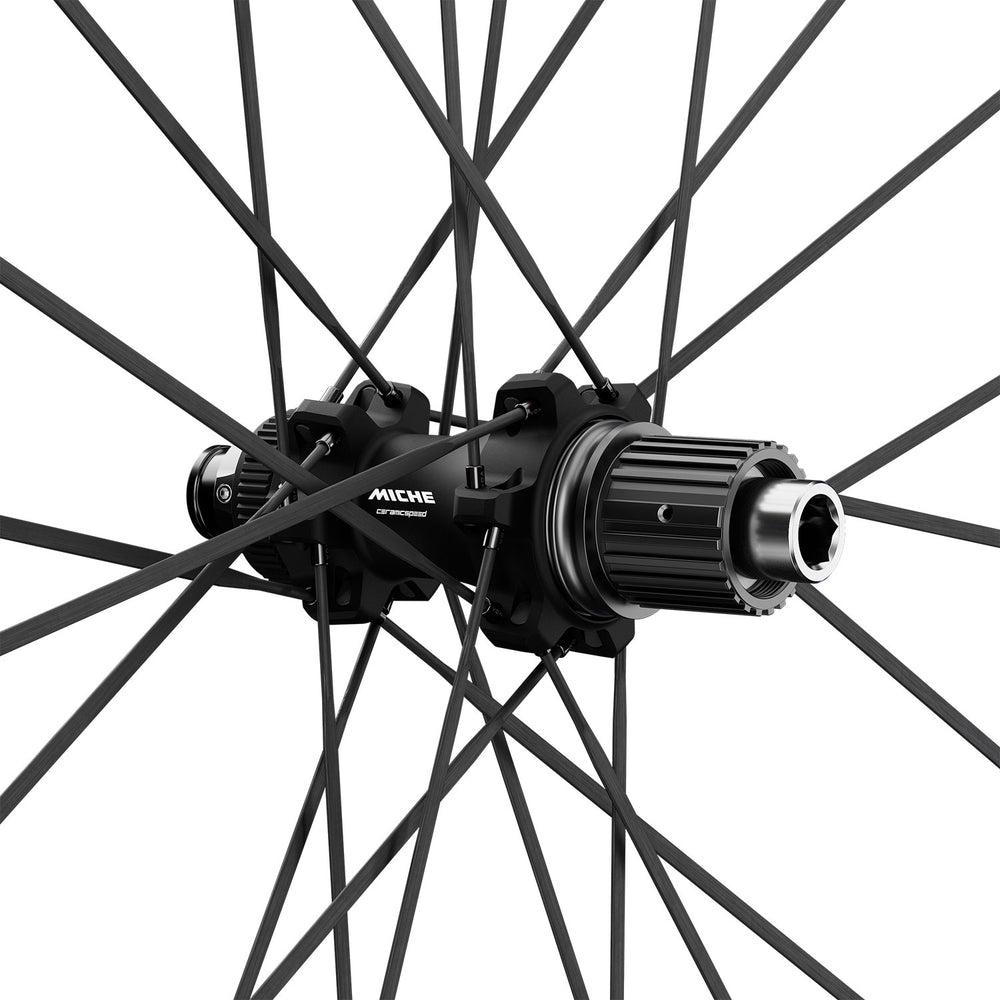

- Transmission: RES 30 Rapid Engagement System
- Braking System: Centre Lock Disc
- Rim Material: T700/ T800 Carbon Fibre
- Spokes: Vonoa Carbon Spokes 4x1mm Aero Profile
- Nipple: AL 7075 T6 / Black
- Max Load Weight (Bike & User): 108kg
What's in the box?
- Wheel bags
- Instruction manual
- Brake rotor RD Lock ring
- CeramicSpeed Alpha bearings: Hand assembled in Denmark with Class 1 silicon nitride balls, up to 400% smoother, 128% harder and 58% lighter than steel bearings
- 52mm NACA airfoil carbon rim: Wind tunnel validated aerodynamic profile with up to 6.92% drag reduction over the Graff Aero 48 at 30 km/h
- 30mm hookless internal rim width: Supports 47 to 65mm tubeless tyres at lower pressures for improved comfort, traction and stability on rough terrain

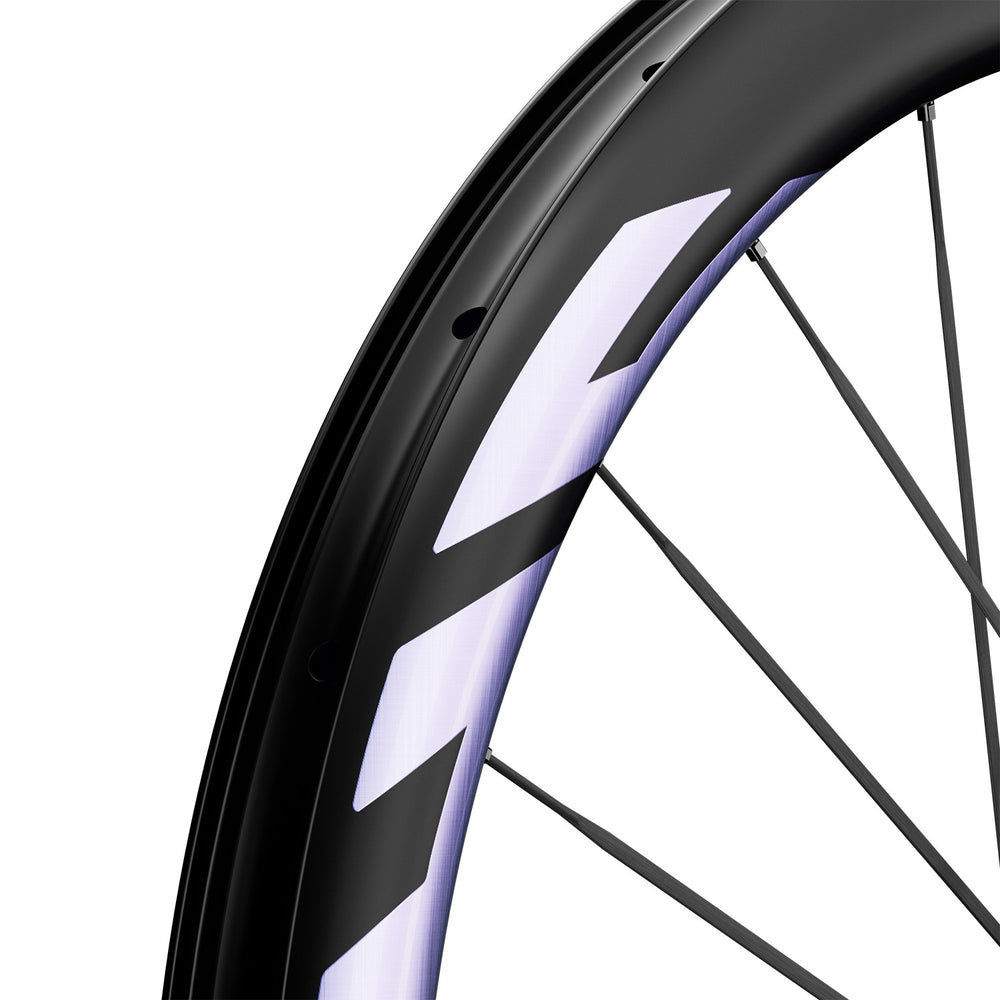

- Reinforced shoulder section: Completely redesigned for improved impact resistance against the lateral and radial forces of intensive gravel riding
- Vonoa carbon spokes, 4x1mm aero profile: 12+12 configuration delivering lateral stiffness, responsiveness and handling precision refined specifically for gravel use
- RES 30 Rapid Engagement System: Fast, reliable engagement for immediate power transfer out of corners and on technical terrain
- 1,455g wheelset weight: Lighter than Graff Aero 48 with an improved stiffness-to-weight ratio
- Tubeless ready: Supplied with valves, wheels bag and brake rotor lock ring
- Manufactured entirely in Italy: Designed and built at Miche's facility in San Vendemiano using high-precision machining processes
