From:  £1,150.00
Engineered for elite gravel racing, the Graff Aero 48 wheelset blends aerodynamic finesse with rugged reliability. Developed in collaboration gravel specialists plus Traka and Unbound winner Ivar Slik, these wheels are bui...Learn more
Colour: Black
Size: MS
Product Code: MCW936C
£1,150.00
£1,150.00
In stock online, dispatched today (order before 2 pm)

Click & Collect

Select Click & Collect at checkout and pick up your order at a convenient location

Walton

Available
Collect in 3 days
Map Marker icon Auckland House, New Zealand Ave, Walton-on-Thames KT12 1PL
Email icon walton@99bikes.co.uk
Phone number icon 01932 901437
Calculating...

Engineered for elite gravel racing, the Graff Aero 48 wheelset blends aerodynamic finesse with rugged reliability. Developed in collaboration gravel specialists plus Traka and Unbound winner Ivar Slik, these wheels are built to dominate across unpredictable terrain, where every watt, and every second counts.

The UD carbon rim features a 48mm depth and a 27mm internal width with a TSS hookless profile, made specifically for tubeless-ready tyres ranging from 35mm to 60mm. An optimised rim shape, paired with double-butted aero spokes, offer superior aerodynamic efficiency and ride stability - even at high speeds and on rough terrain.

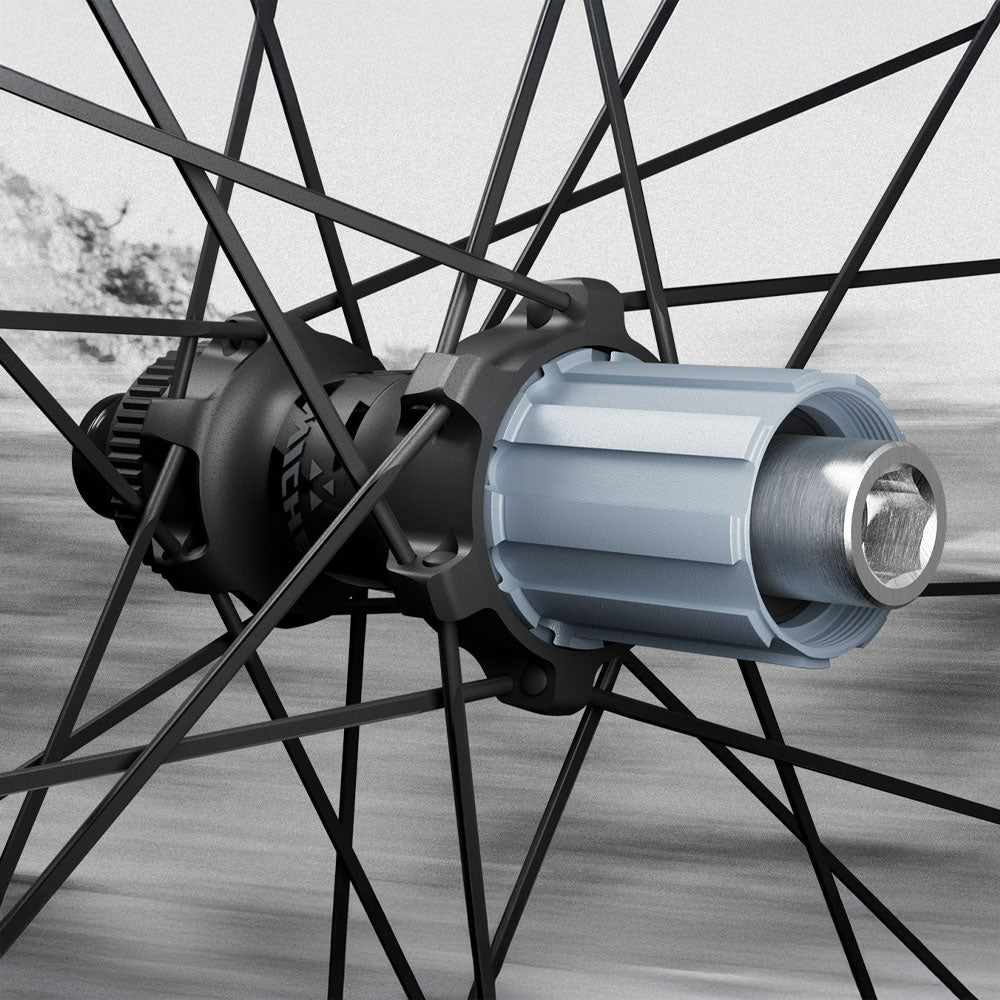

CX-Graff Hub

CX-Graff hubs are fitted with Miche's high-smoothness bearings for maximum fluidity and long-term durability. The 24-spoke lacing pattern (12+12) is engineered to optimise tension distribution and load absorption, tailored to the needs of competitive gravel racing.

Technical Specifications

  • Weight: 1525g (Tubeless ready + 12g)
  • Compatibility: Campagnolo N3W, Shimano HG - Microspline, SRAM XDR
  • Hubs: AL 7075 T6
  • Rim profile: 48mm
  • Rims: 622 x 25 TSS UD Carbon fibre
  • Spokes: Stainless steel black, aero, straight pull, double butted
  • Assembly: 24 - 25 Crossing
  • O.L.D: 100 - 142mm
  • Nipple: AL 7075 T6 / Black
  • Bearings: Miche 2RS
  • Axles: Front 12mm, Rear 12mm
  • Tubeless Ready
  • Max Load Weight (Bike & User): 108kg
  • ASTM Level: 2
