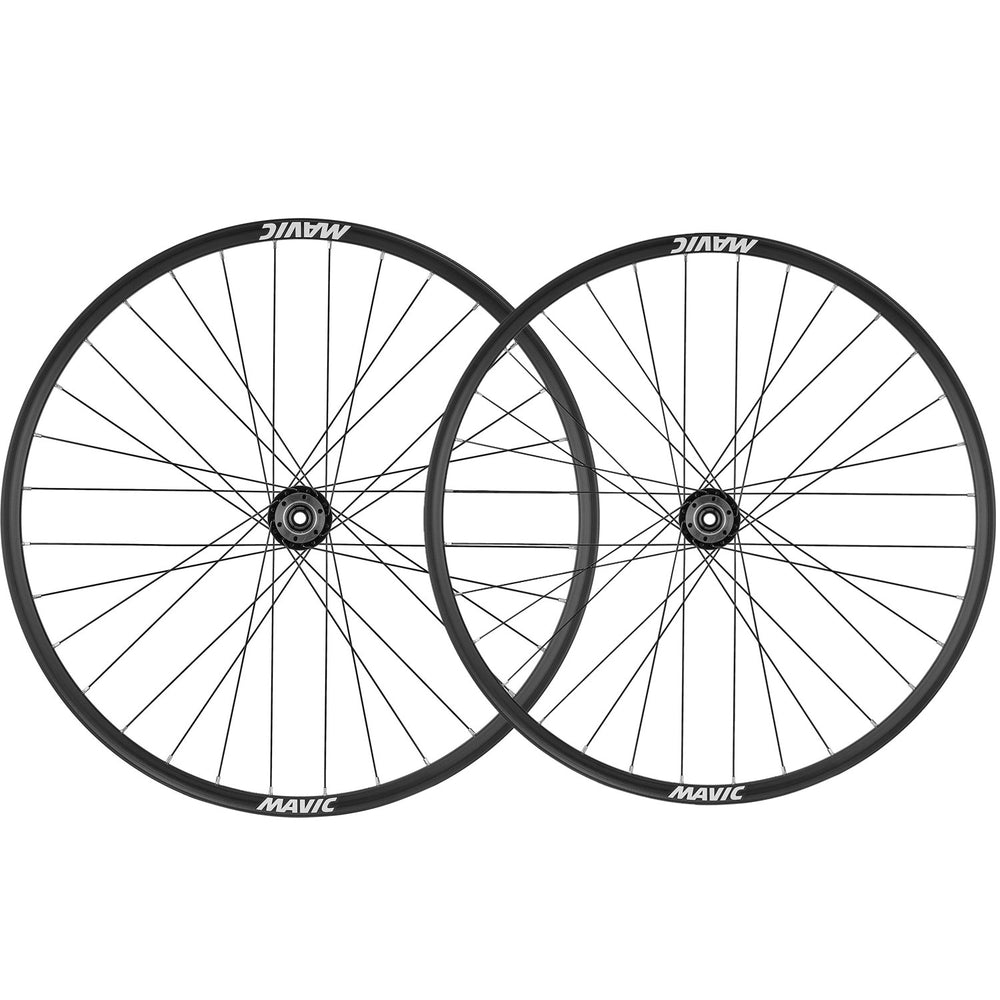

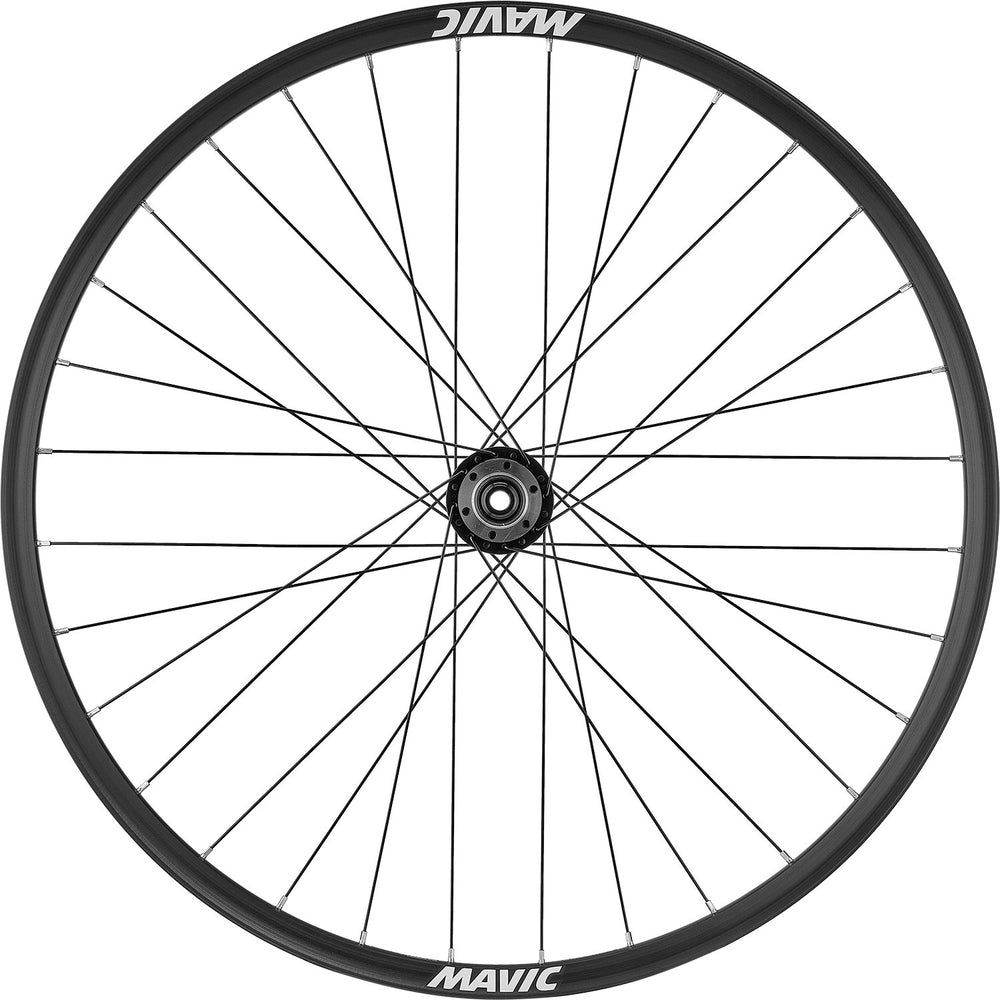

E-Access XR30: engineered for strength, longevity, and effortless performance, ready to tackle every ride with confidence.
Built e-bike ready with a reinforced steel driver and a robust 32-spoke design front and rear for unmatched strength and durability under high power.
Technical Specifications:
- Height: 18mm
- Internal Width: 30mm
- Front axle: 15 x 110mm
- Rear axle: 12 x 148mm
- Discipline: Road
- Spokes: Steel, Bent radius
- Rim Diameter: 700c
- Nipples: Steel
- Rim material: S6000 Aluminium
- Tyre compatibility: UST Tubeless Ready & Tube type
- Maximum weight: 180kg including bike
- Braking system: 6-Bolt only
- Bearings: QRM automatic setting - sealed cartridge
- ETRTO Size: 622x30TC
- Weight: 1400g
Understanding the different Mavic freehub body acronyms:
- HG or M11 – Shimano HG Road 11/12x (other speeds with spacer)
- MS - Shimano Microspline
- XD - SRAM XD
- XD-R - SRAM XD-R
- ED11 - Campagnolo 9/12x
- N3W - Campagnolo 13x
E-bike ready
Built e-bike ready with a reinforced steel driver and a robust 32-spoke design front and rear for unmatched strength and durability under high power (OK 175 Nm).
Durability
Designed for long-lasting reliability, these wheels feature sealed steel bearings, highly resistant alloy rims with eyelets, and reinforced spokes built to handle e-bike power. With a maximum load capacity of 180 kg, they provide consistent performance and strength for demanding rides, both on the road and in urban environments.
Tested like any other Mavic wheel
No matter the price tag, the Mavic brand sits proudly on this wheelset. The lab and field evaluation process included multiple tests of all components as well as complete wheels among the 57 our lab is equipped with. The only way this wheelset is now available for you : getting green lights all the way.
