The King is dead, long live the King the Kinesis Aithein is back to reclaim its place as the fastest bike in the Kinesis line-up. For 2023, our premium aluminium race frame is faster, more comfortable and more fun than ever before. Whether its racing the local crit or winning the sprint for the sign, the new Aithein is the bike to get you there quicker.
Using advanced aluminium construction techniques, we've created a lightweight frame that truly questions the need for a carbon bike. Thanks to the advanced manufacturing technique called Superplastic Forming (SPF), we've minimised weight whilst maximising stiffness and strength where you need it. The result is a high-performance frame that excels in transferring rider energy into forward momentum.
Now with more tyre clearance the new Aithein now features 30mm tyre clearance for speed and grip, allowing you to ride at full speed on every road surface on modern larger-volume tyres. To complement the frame we chose the excellent Futura Road fork from Columbus, known for its impeccable ride quality and unmatched vibration damping.
Flat mount brake attachment and industry standard 12mm thru-axles are used on the disc brake model with GWs excellent switch lever for a clean looking and dependable set up. No matter how you choose to ride, if you choose to ride fast, choose to ride Aithein!
ROAD.CC / Kinesis Aithein Disc Frameset
Conclusion"The Aithein Disc isn't just an excellent aluminium frameset, it's an excellent frameset full stop. If you want the stiffness and performance of a race bike without the associated twitchy handling, then the Kinesis is definitely one to consider." - road.cc Aithein bike test
Verdict
"Impressively stiff and efficient frameset, which showcases just how good aluminium can be." - road.cc Aithein bike test
Super Plastic Formed Alloy Frame
Constructed from tubes that are created with an advanced manufacturing technique named Superplastic Forming (SPF), which involves heating the alloy until exhibits superplasticity, and then creating complex tube shapes using gas pressure.

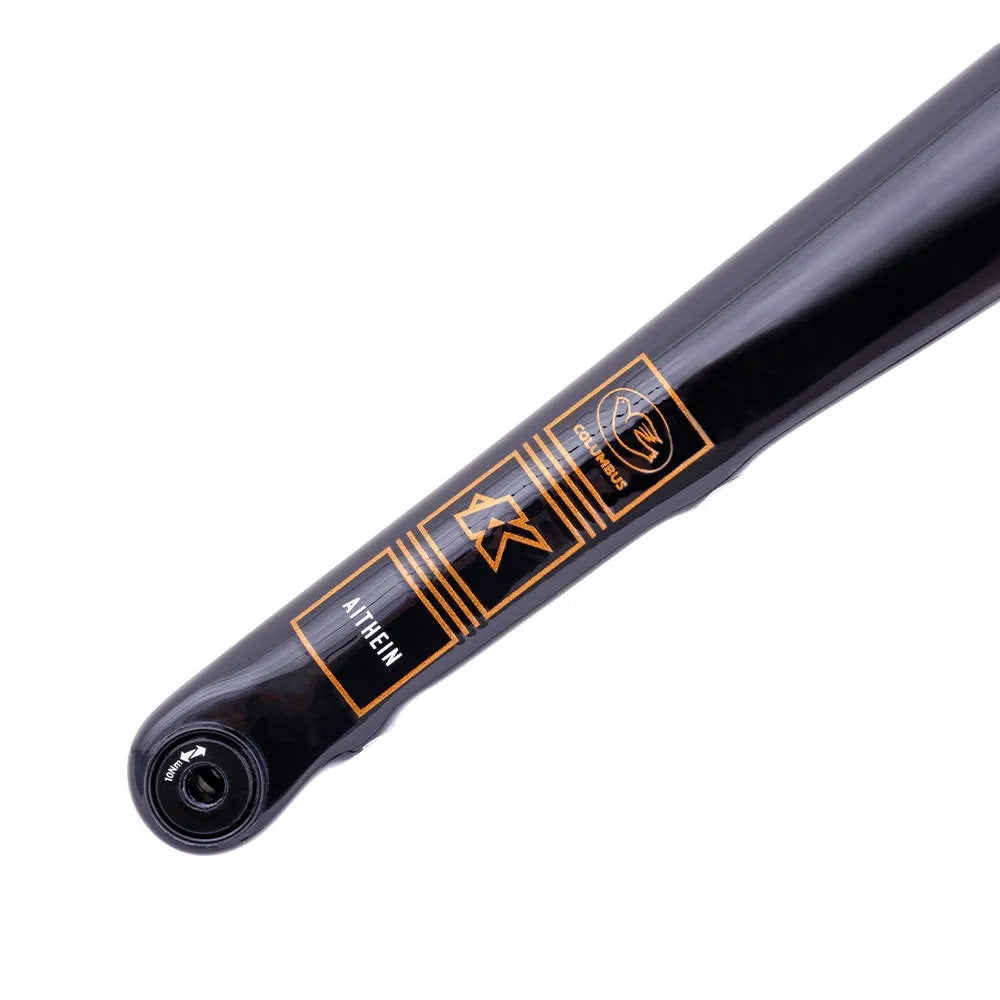

Columbus Futura Road Disc Fork
T700S and HFM Carbon Fibre Monocoque construction, 45mm rake, 440g fork. Stiff with high vibration damping for a smooth ride.
30mm Tyre Clearance
It is becoming widely accepted that wider tyres offer more speed, more grip and more comfort on real world surfaces. The Aithein Disc will take up to 30mm tyres so you can choose the right tyre for you and your riding conditions.
Kinesis Rider Fit Geometry
Geometry adjustments have been made to ensure a better fit across a greater range of rider dimensions. As a result there is more consistent handling across sizes, less toe overlap, and more intuitive sizing.
68mm Threaded BB
Threaded BBs allow you to use reliable, creak free bottom brackets that withstand year round British conditions.
Adaptable Cable Ports
Thanks to interchangeable cable entry points you can run exactly the routing you need, ensuring there are no excess holes into the frame.
Wireless Electronic / Mechanical / 2x / 1x Compatible
The Aithein frame is designed to work with mechanical and all wireless electronic groupsets.
Specification

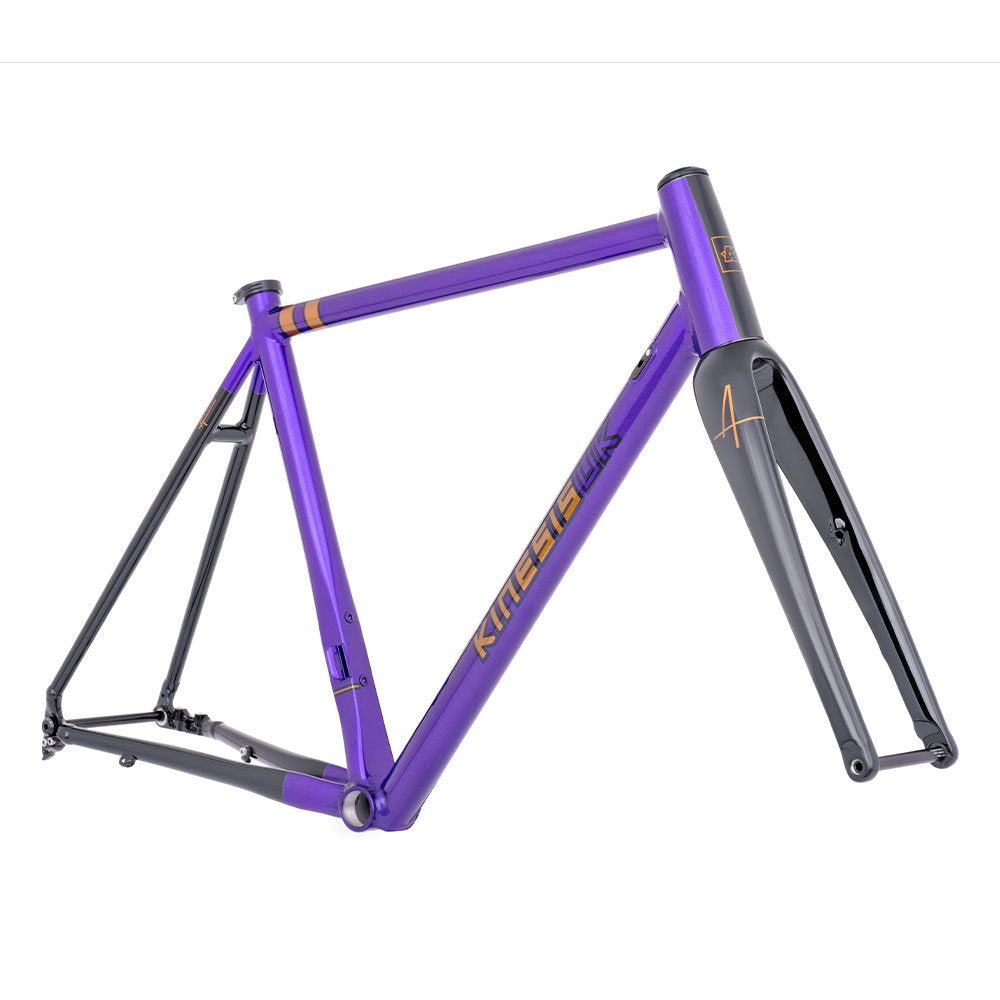

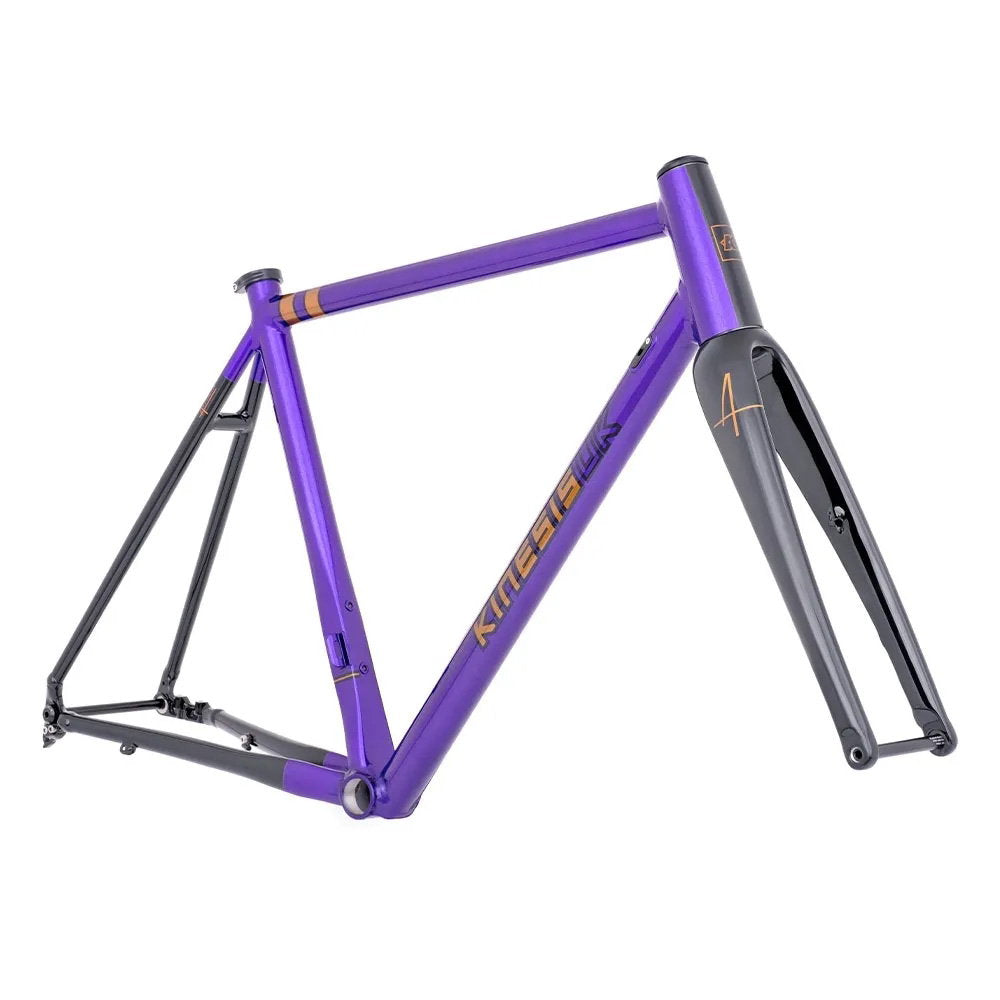

Super Plastic Formed lightweight aluminium frame.
Columbus Futura Road Disc carbon fork.

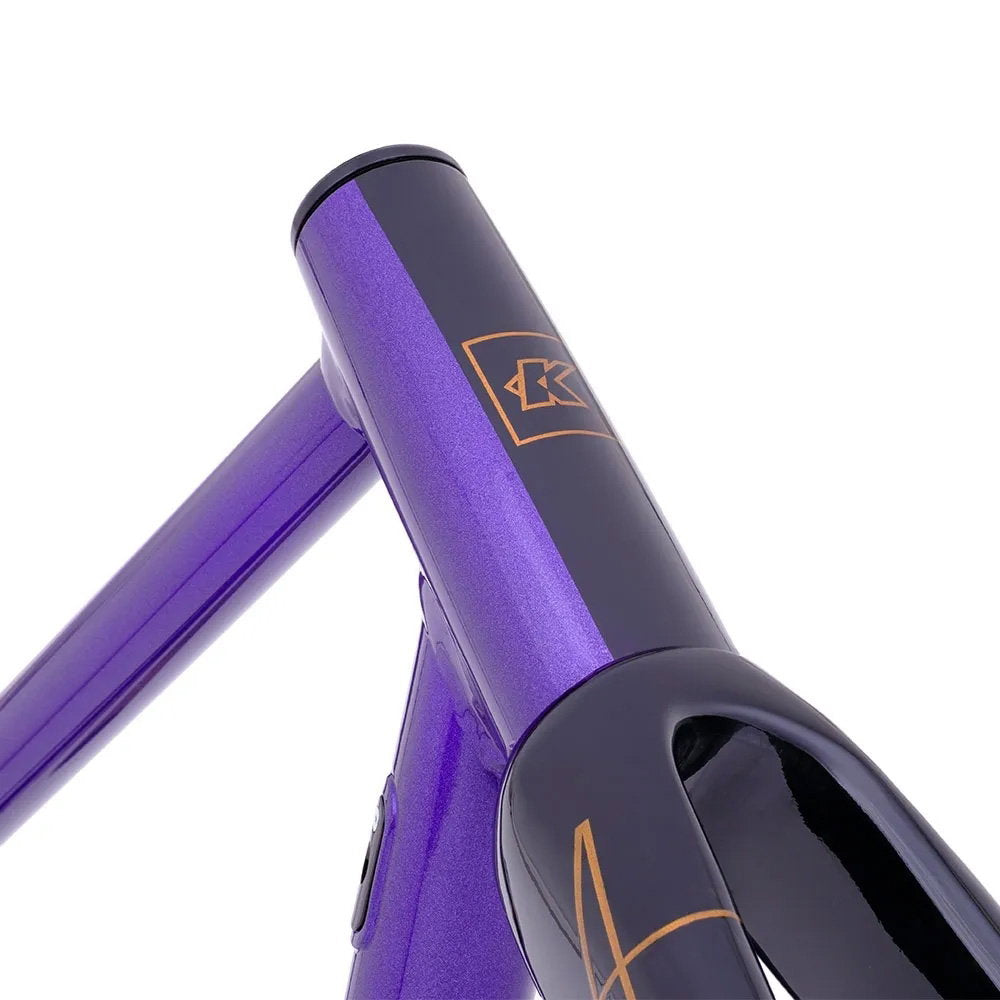

GW Tapered headset with ACB Bearings.

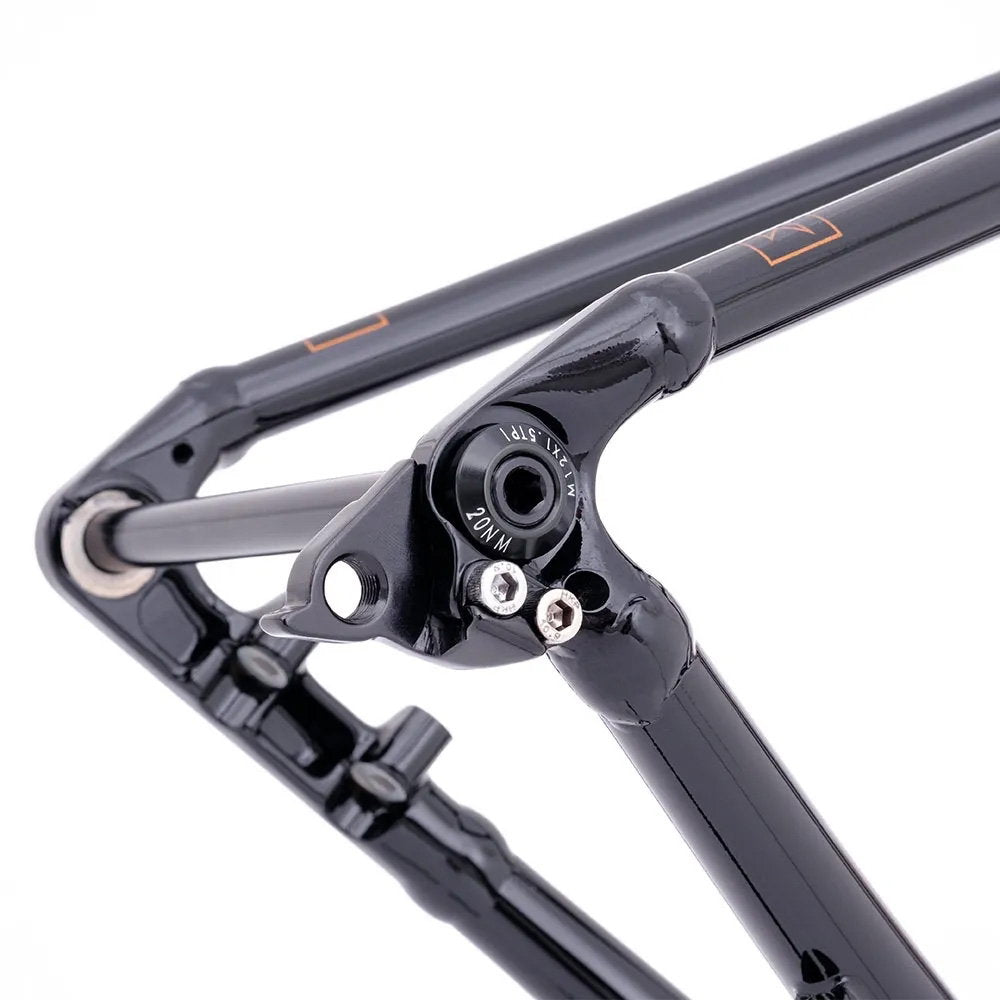

142x12mm Thru Axle rear spacing.
100x12mm Thru Axle front fork.
GW Switch Lever axles front and rear.
Clearance for up to 30c tyres (tyre and rim dependent).
Wireless Electronic / Mechanical / 2x / 1x Compatible.
Not compatible with wired electronic shifting
Front Mech clamp size needed: Braze-On.
68mm threaded BB.
31.6mm seat post required.
Two bottle cage mounts.
22mm long flat mount disc brake bolts required for the frame.
Colour: Deep Purple.
Sizes: 47 / 50 / 53 / 56 / 59cm.
Warranty: 5 years (for all frames purchased after Jan 1st 2019 warranty page page for full details).
Frame supplied with fork, headset, seat clamp, front & rear through axle, frame ports and cable guides.
Frame Weight (with Seat Clamp, Mech Hanger and all cable guides: 1.60kg (53cm).
Due to the frame design and positioning of the front mech mount this model Aithein Disc is not compatible the following Shimano front mechs FD-5800, FD-6800 and FD-9000
Geometry
| Frame Size Seat Tube | XS (47*) | S (50*) | M (53) | L (56) | XL (59) | ||
| Seat Tube Length C-T | 450 | 490 | 530 | 560 | 590 | ||
| Top Tube Length Effective | 516 | 535 | 551 | 566 | 586 | ||
| Head Tube Length | 124 | 140 | 162 | 184 | 208 | ||
| Head Tube Angle | 72 | 72.1 | 72.4 | 72.7 | 73 | ||
| Seat Tube Angle | 75 | 74.3 | 74 | 74 | 73.5 | ||
| Bottom Bracket Drop | 72 | 72 | 70 | 70 | 69 | ||
| Chain Stay Length | 410 | 410 | 410 | 410 | 410 | ||
| Wheelbase | 967.6 | 979.6 | 992.2 | 1004.2 | 1016.7 | ||
| Stack | 525 | 540 | 559 | 582 | 605 | ||
| Reach | 375 | 383 | 391 | 399 | 407 | ||
| Front Centre | 573.6 | 585.5 | 597.4 | 609.3 | 621.5 | ||
| Offset | 45 | 45 | 45 | 45 | 45 | ||
| Fork Crown | 368 | 368 | 368 | 368 | 368 | ||
| *Semi-Sloping | |||||||
| Size Guide (cm) | 155 - 163 | 162 - 171 | 169 - 178 | 177 - 187 | 186 - 195 | ||
