The Range Plus Fork was designed for our Tripster AT Plus frameset to accommodate larger sized gravel tyres. It is now available to purchase separately to upgrade your bike.

With ample tyre clearance of 700c x 50mm the Range Plus is perfect for larger tyred gravel bikes. With 3 cargo mounts on the left and right legs (6 in total), the Range fork is extremely customizable and can easily accommodate bottle cages as well as luggage racks, perfect for all adventures. The Range fork also provides internal routing for both the front brake and a dynamo cable, creating a much tidier front end and reducing the risk of cable snag.

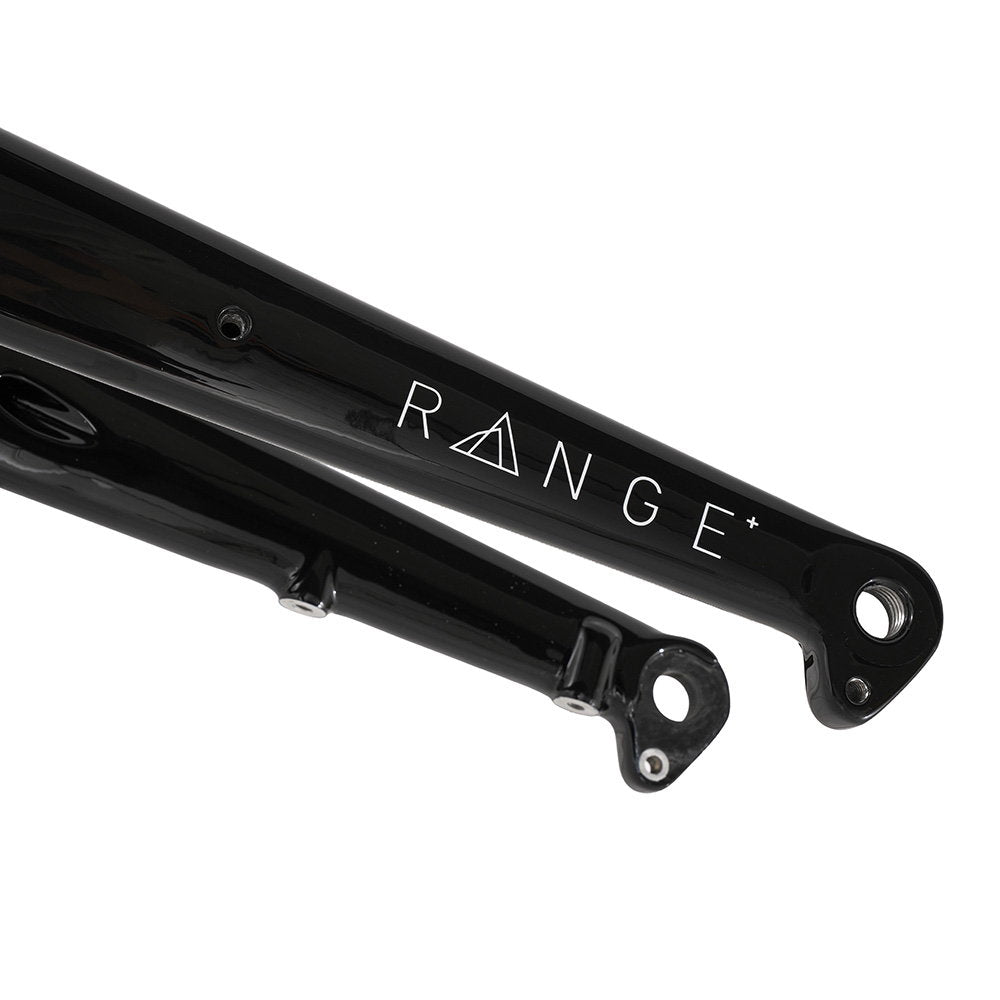

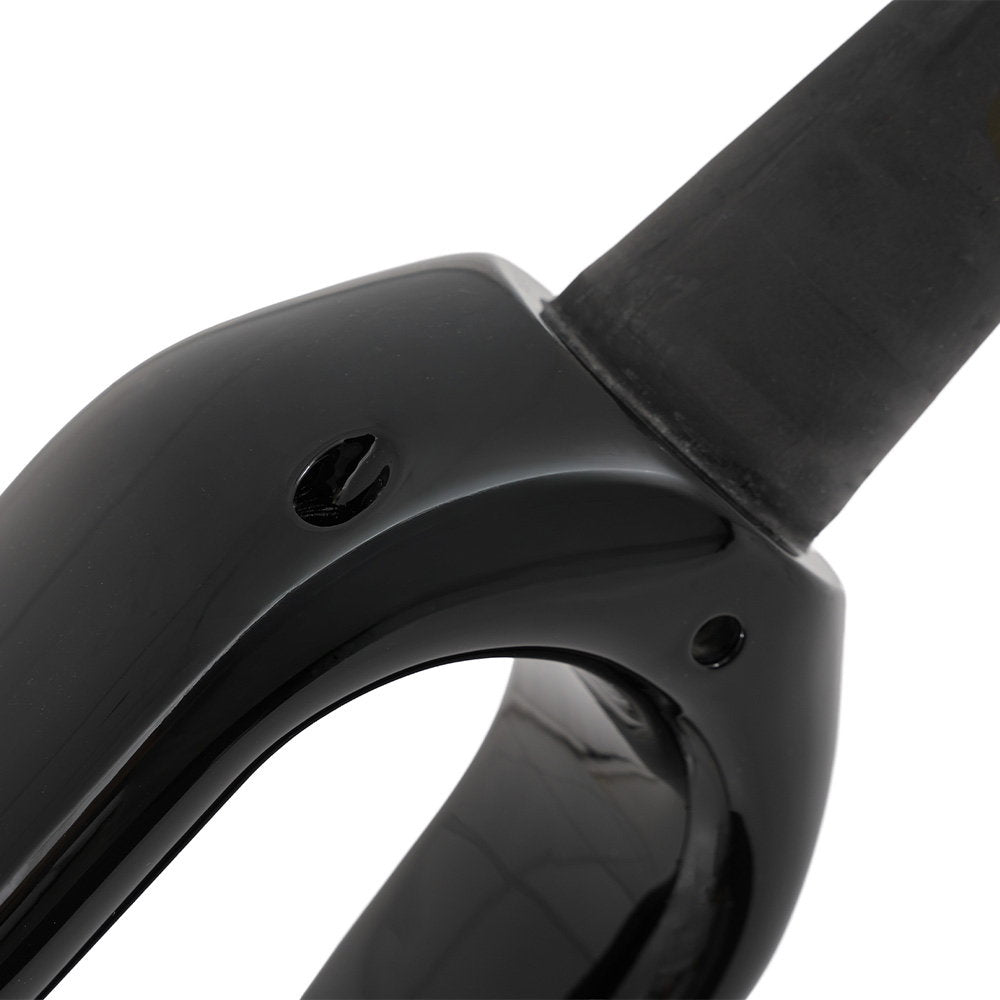

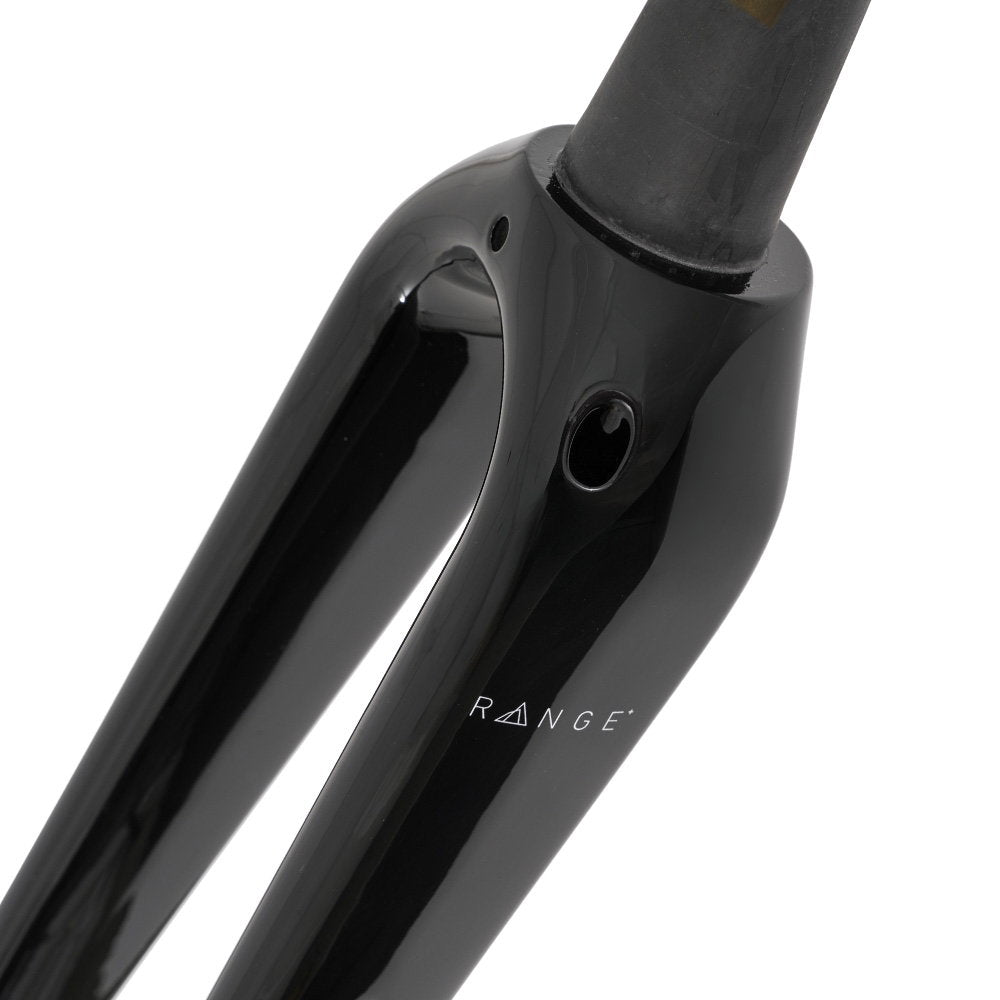

The Range Plus Fork has threaded dropout eyelet holes along with threaded holes on both the front and rear of the crown giving full versatility for mudguard and light mounting. The Range Plus Fork takes a flat mount brake caliper.

With full UD Carbon Fibre construction, the Range fork absorbs all vibrations, resulting in a smooth and comfortable ride whilst also being light at only 575g (full length steerer and no axle).

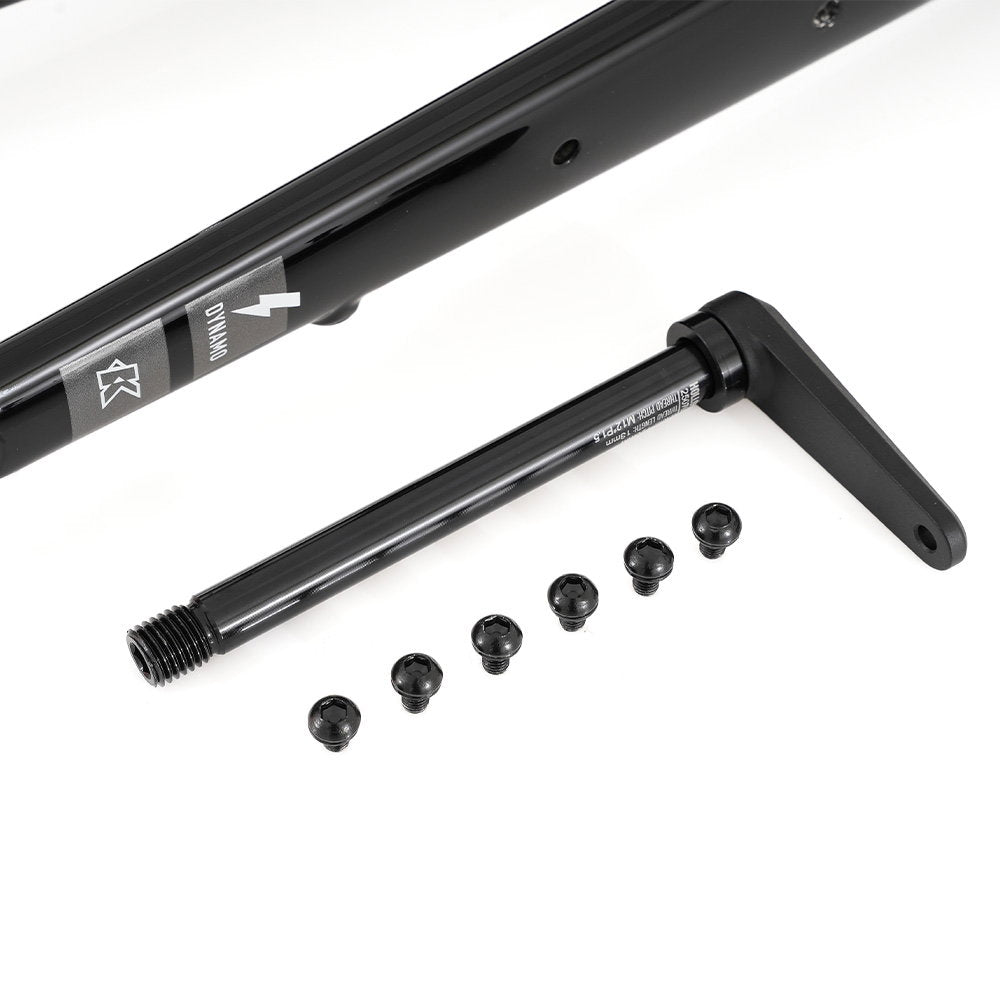

The Range Plus Fork is supplied with GW axle, GW Switch Lever, dynamo cable grommets and six cargo mount bolts. The supplied cargo mount bolts should only be used for blanking the holes. You will need longer bolts to fit a cargo rack and the length will depend on your rack. The minimum thread insertion depth with cargo rack fitted is 8mm and the maximum insertion depth is 10mm on the lower holes and 12mm on the upper holes.

To mount racks to your fork - we cannot recommend exact bolt lengths, as the length of bolt required for your rack can vary greatly depending on the thickness of the material used in the construction of your rack or mount. Please refer to the maximum thread insertion depths listed above. You must check that the bolt used will have the correct thread insertion depth when the rack is fitted. If bolts of too short a length are fitted, it may cause the threads to strip and the rack or mount to fail. If bolts of too long a length are fitted, you will damage the carbon inside the fork.

• Full UD Carbon Construction

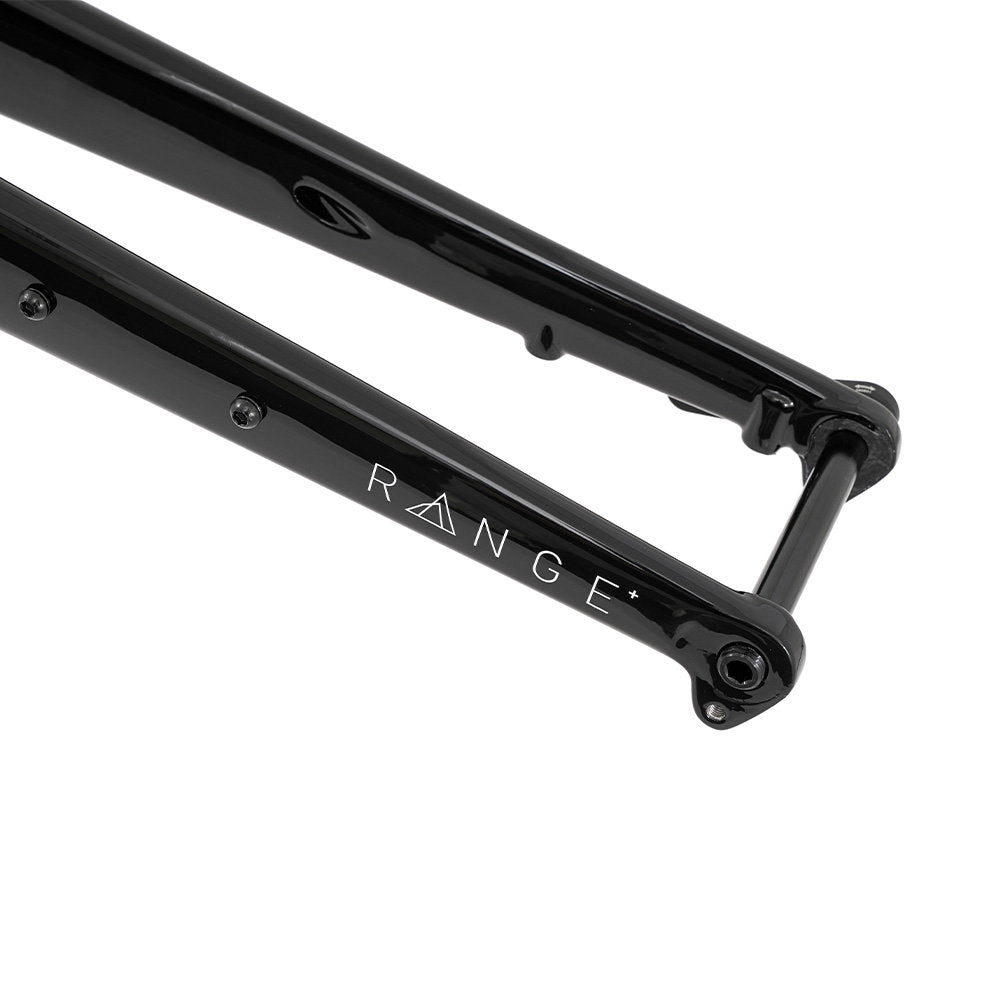

• 12mm GW Switch Lever Axle
• Three mounting holes on each fork leg
• Internal brake hose routing

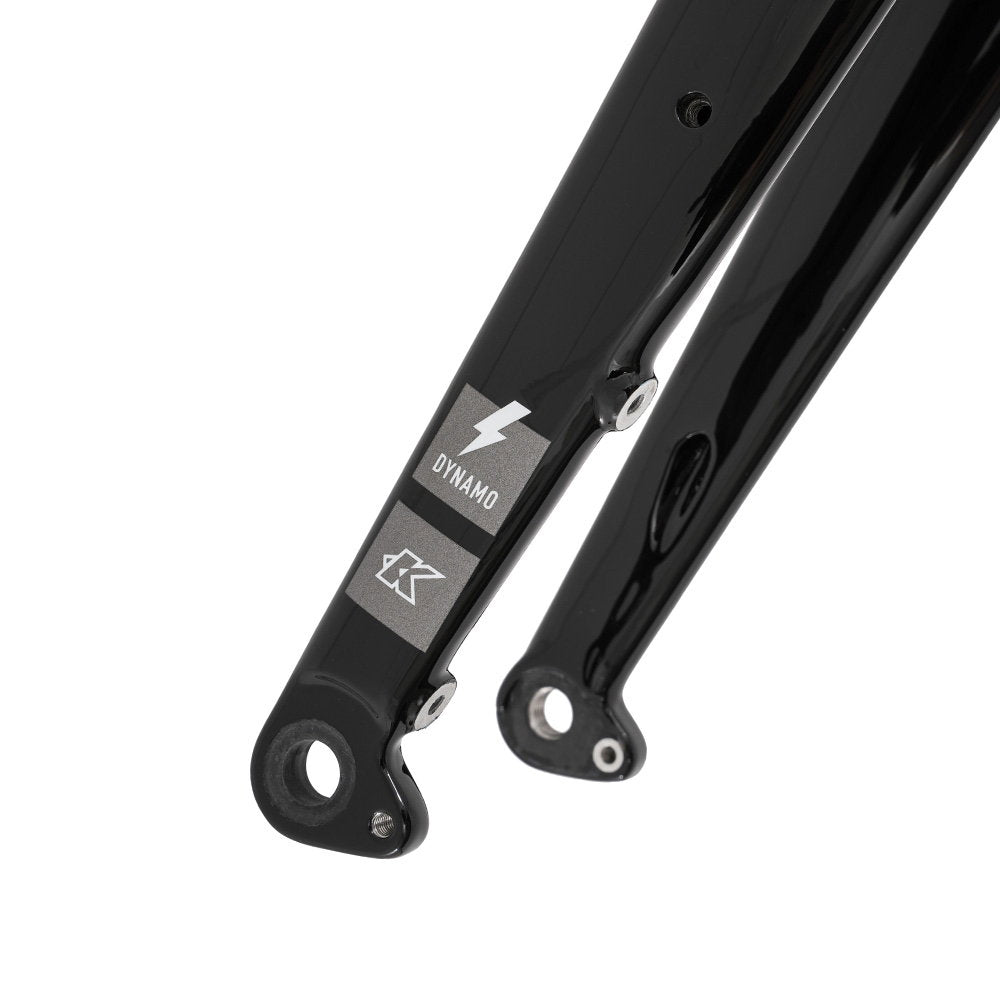

• Internal cable routing for dynamo lights
• Mudguard Eyelets
• 300mm Steerer
• Discreet Shimano Flat Mount

Specification

• Material: UD Carbon Fibre
• Steerer Size: 1.1/8" - 1.5" Tapered
• Wheel Size: 700c
• Rake: 50mm
• Weight: 575g (without axle)
• Crown Height: 420mm
• Max Tyre Width: 700c x 50mm
