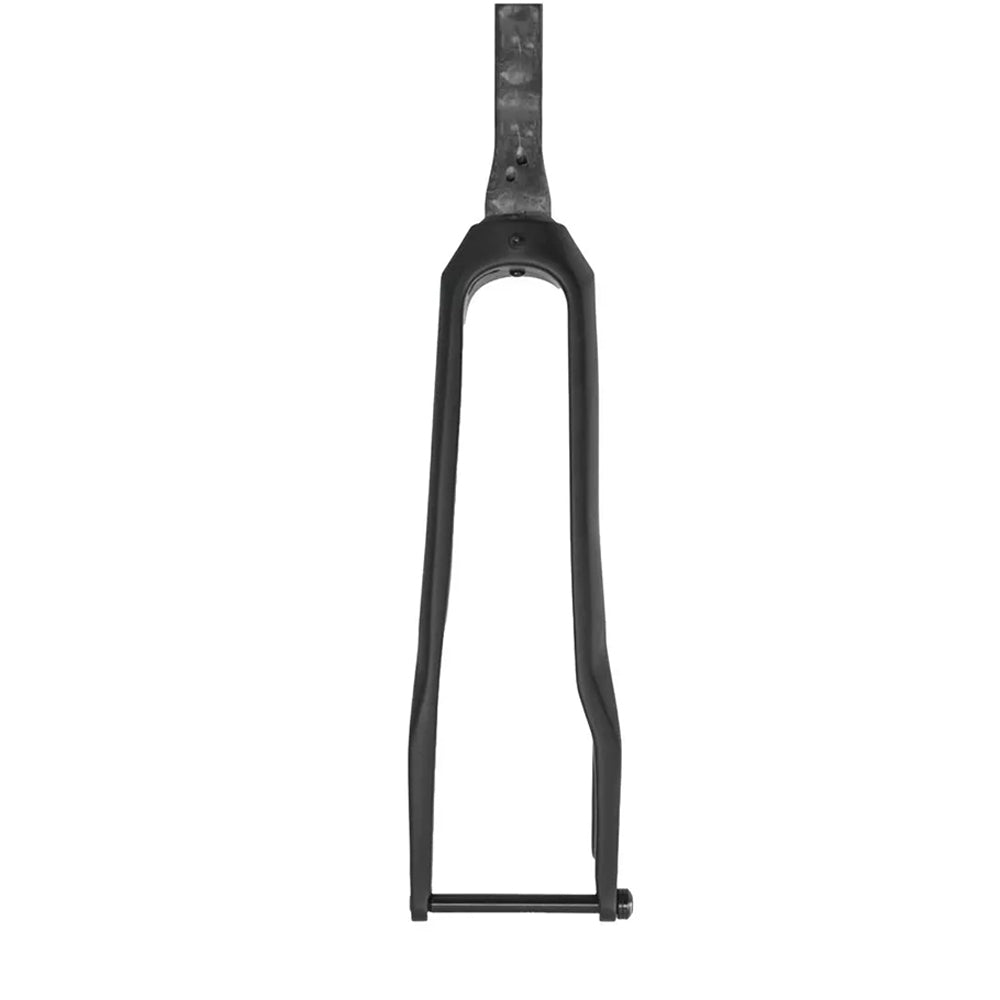

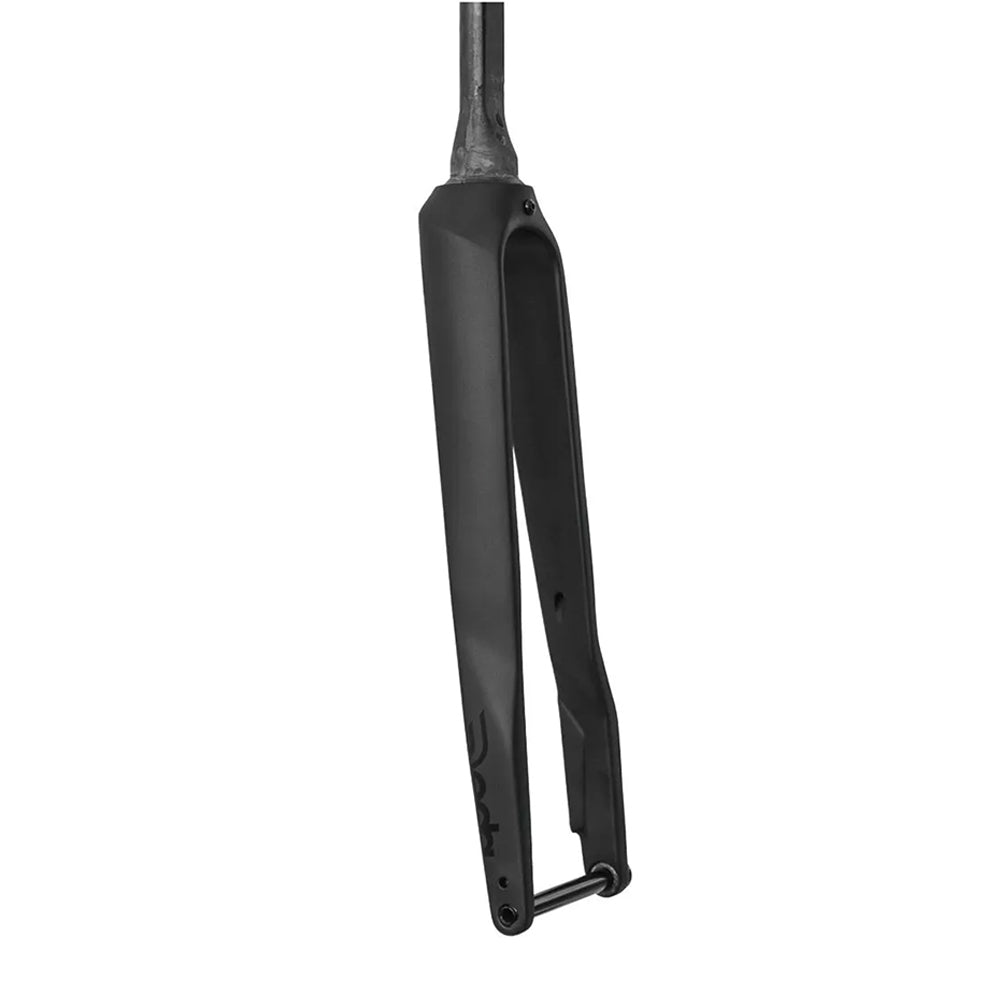

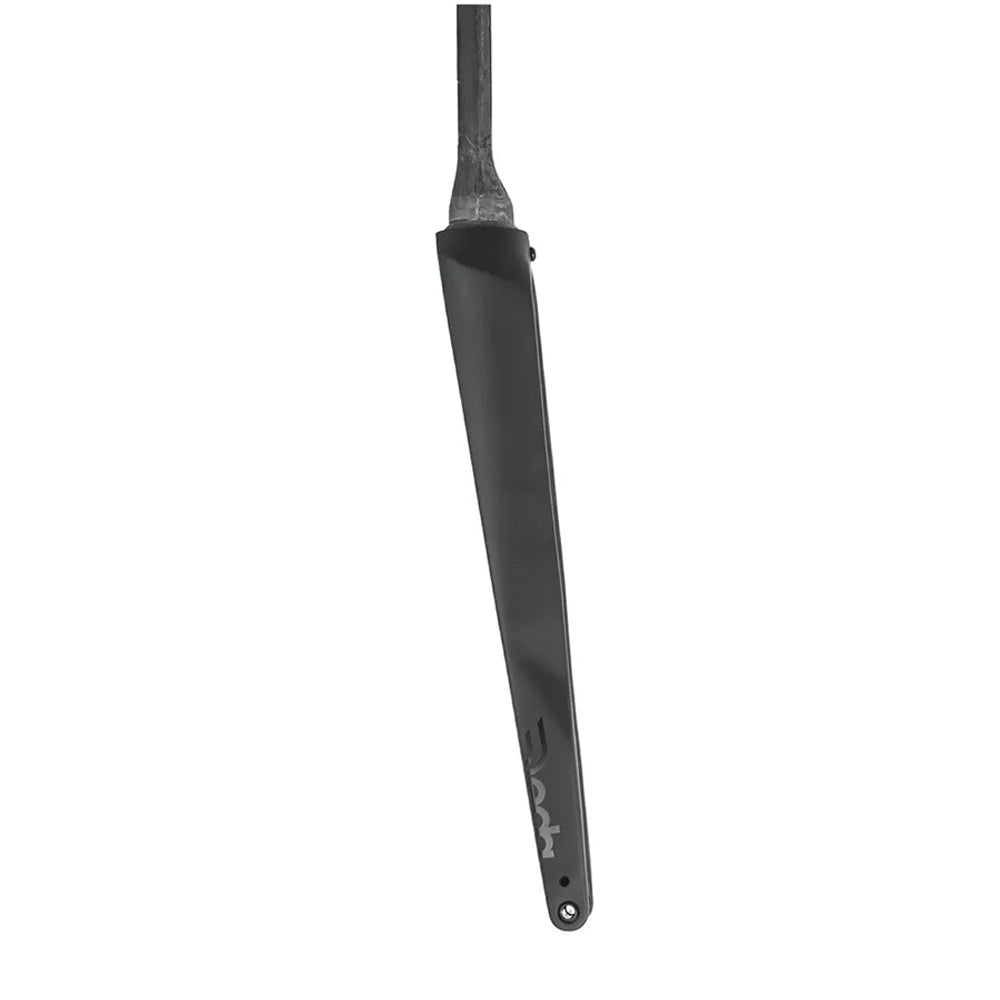

Perfect for all road use, the Gera EGD is incredibly light, weighing in at just 498g with straight blades for superior reactivity on fast gravel or paved roads.
This is Deda Elemanti's first Gravel fork. In addition, this is compatible with a 180mm disc rotor and designed for integrated cables due to the D shape fork steerer and DCR system. Compatible with most frames on the market, carbon or metal. This fork is fully carbon with an integrated 45 degree crown race.
Tyre clearance up to 45mm (28") or 50mm (27.5"). It is ready for dynamo hubs (i.e. SON) for optimal integration of the electric cables inside the fork.
Technical Specifications
- Material: Full carbon fibre UD finish
- Fork steerer: 1" 1/8 to 1" 1/2 with D-shape and integrated 45 degree crown race
- Steerer length: 350mm
- Axle crown length: 395mm
- Rake: 50m
- Axle compatibility: 100x12mm thru axle(Included)
- Crown diameter:56mm
- Disc brake rotor compatibility: Flat mount 160mm or 180mm
- Max fork load: 15k per side (5kg per eyelet)
- Finish: UD carbon with POB logo
- Tyre clearance: 7mm (28"x1.7"), 6mm (27.5"x2.0")
- Weight: 498g
Compatibility
- Frame: Any bicycle frame featuring an internal cable routing system and fitting Deda DCR headset
- Stem: All Deda Elementi stems are compatible or stems with a large opening between the fork steerer and stem body to allow the internal cable routing
- Wheel and tyre: 622x45 (28"x1.7"), 584x50 (27.5"x2.0"), depending on tyre/rim manufacturer
- Internal cable routing: Standard stem up to 3 cables (two brake housing cables and mechanical/electronic shifting cable) or with a DCR stem up to 4 cables (two brakes housing cables and two shifting cable
Accessories
- Thru axle (M12xP1.5x120)
- D shape custom expander
- Topcap
