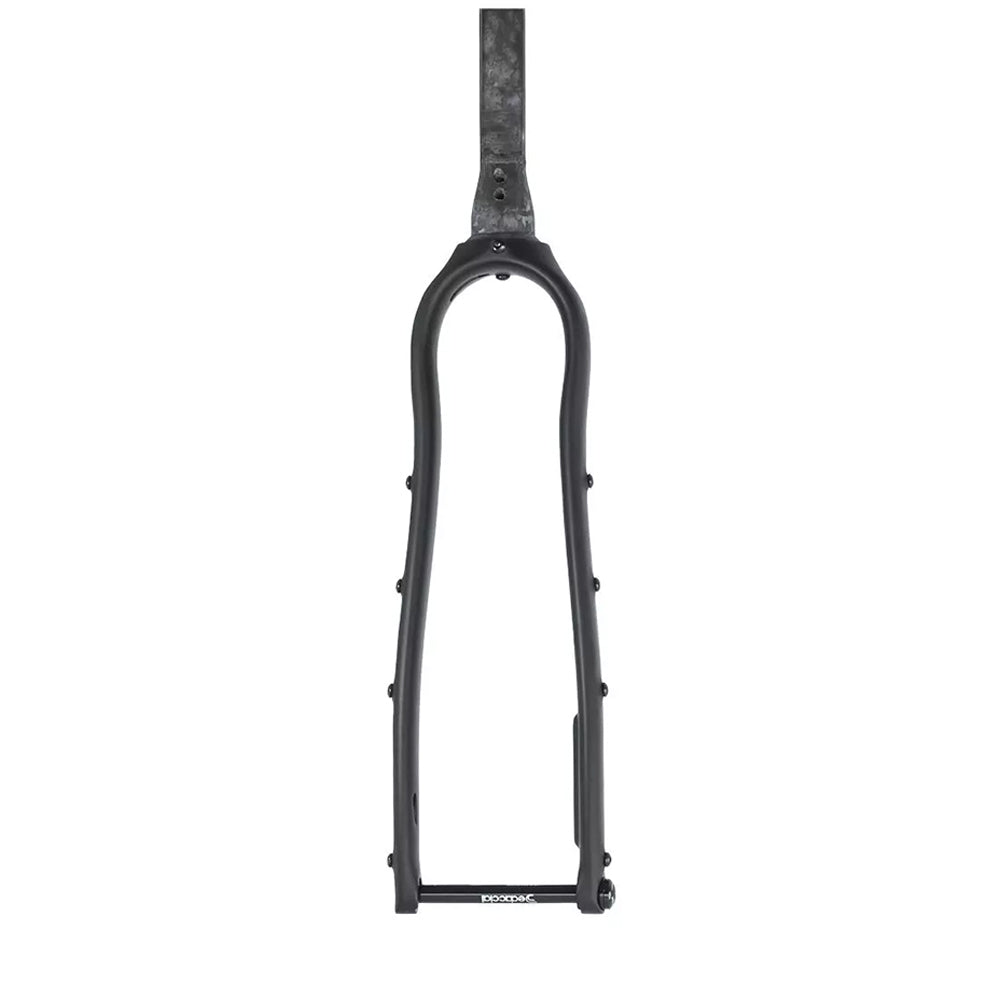

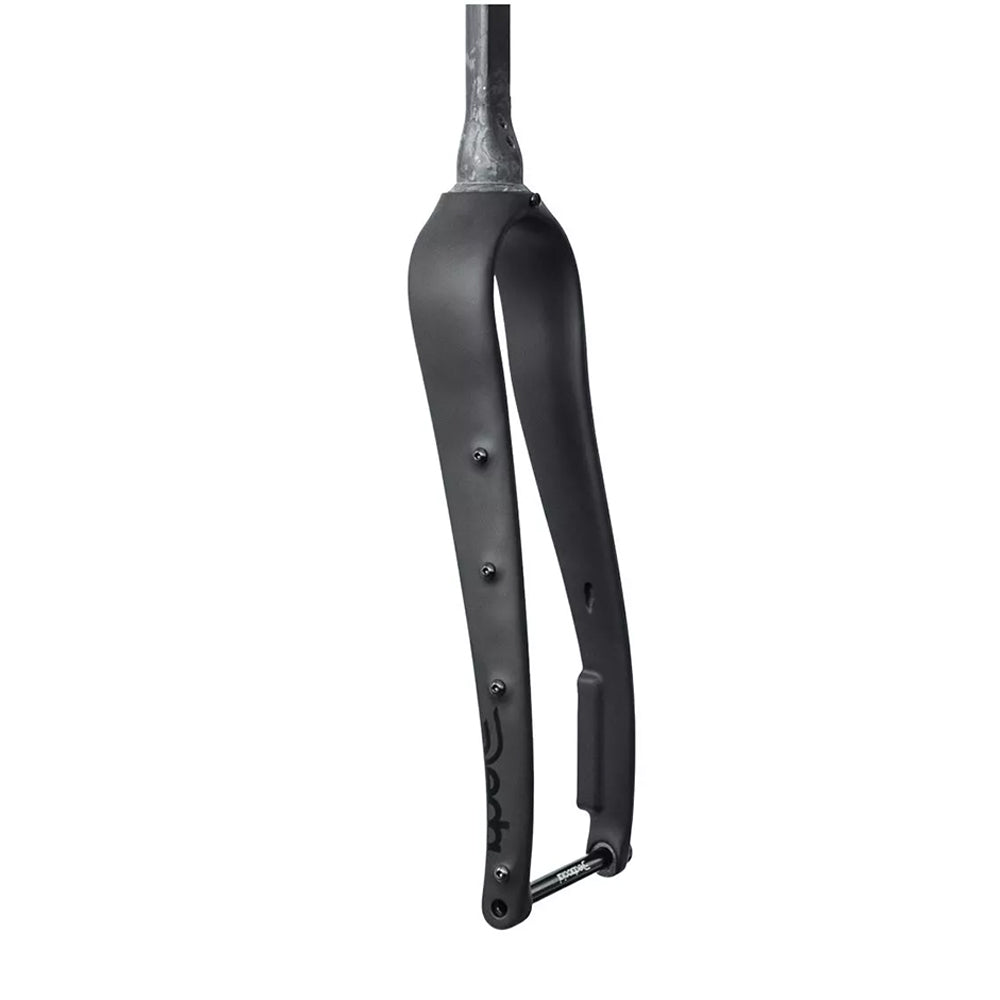

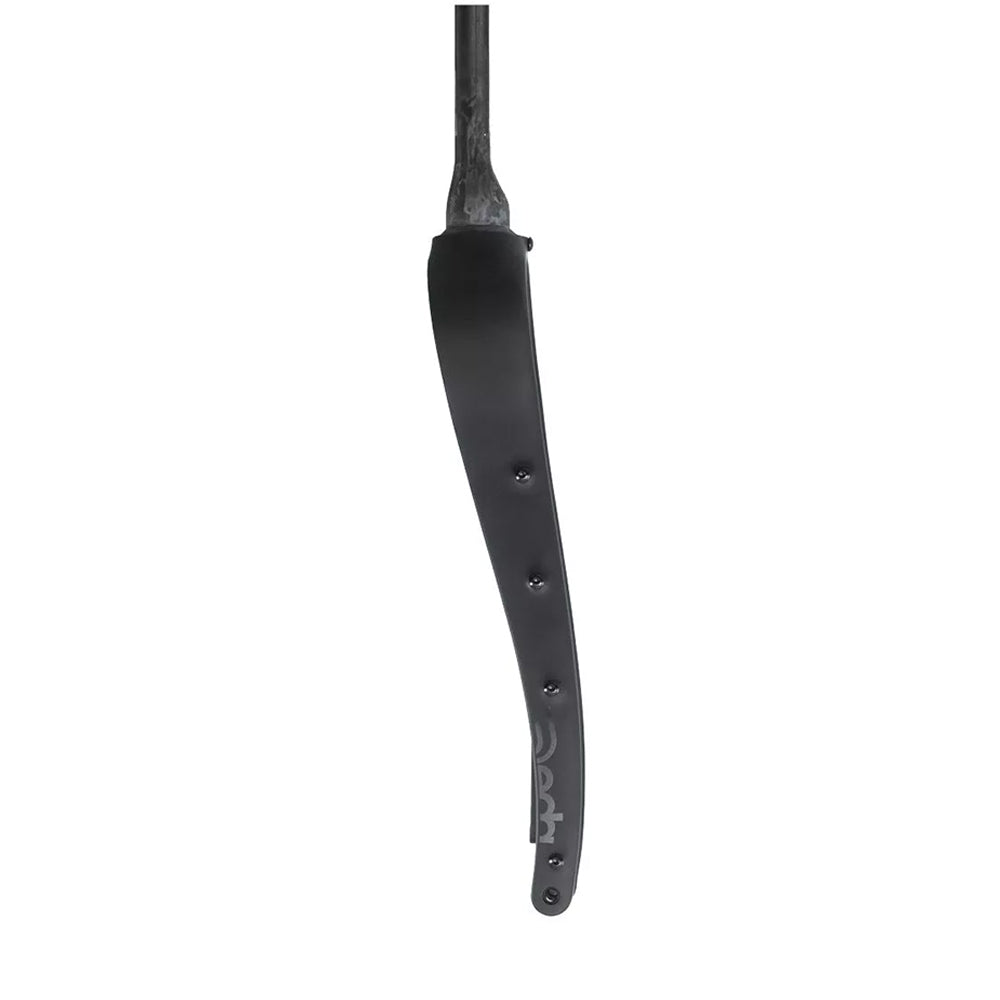

The Gera Curvy is the perfect gravel fork for adventure and bikepacking and all the details have been designed with this in mind.

This is Deda Elementi's first gravel fork, fitting a 180mm disc rotor to guarantee the best possible braking even under heavy load conditions. This fork has also been designed to allow the integration of the cables inside the frame thanks to the D shape fork steerer and DCR system. Compatible with most frames on the market, both carbon and metal.

Featuring a full carbon construction with an integrated 45 degree crown race. In addition, a triple cage mount features on both sides of this fork specifically for bikepacking front bags as well as inserts for fender mounts.

Tyre clearance up to 57mm (29") or 65mm (27.5"). Ready for dynamo hubs, such as SON, for optimal integration of the electric cables inside the fork.

Technical Specification

• Material: Full carbon fibre UD finish
• Fork steerer: 1" 1/8 to 1" 1/2 with D-shape and integrated 45 degree crown race
• Steerer length: 350mm
• Axle crown length: 395mm
• Rake: 50mm
• Axle compatibility: 100x12mm thru-axle (included)
• Crown diameter: 56mm
• Disc brake rotor compatibility: Flat mount 160mm or 180mm
• Max fork load: 15kg per side (5kg per eyelet)
• Finish: UD carbon with POB logo
• Minimum tyre clearance at fork blade: 10mm (29"x2.25"), 8mm (27.5"x2.6")
• Weight: 545g
• Note: Fender mounts, ready for SON dynamo hub

Compatibility

• Frame: Any bicycle frame featuring internal cable routing system and fitting Deda DCR headset
• Stem: All the Deda Elementi stems are compatible or the stems with a large opening between the fork steerer and stem body to allow the internal cable routing
• Wheel and tyre: 622x57 (29"x2.25"), 584x65 (27.5"x2.6"), depending on tyre/rim manufacturer
• Internal cable routing: Standard stem up to 3 cables (two brakes housing cables and mechanical/electronic shifting cable); with a DCR stem up to 4 cables (two brakes housing cables and two shifting cables)

Accessories

• Thru axle (M12xP1.5x120)
• D shape custom expander
• Topcap
