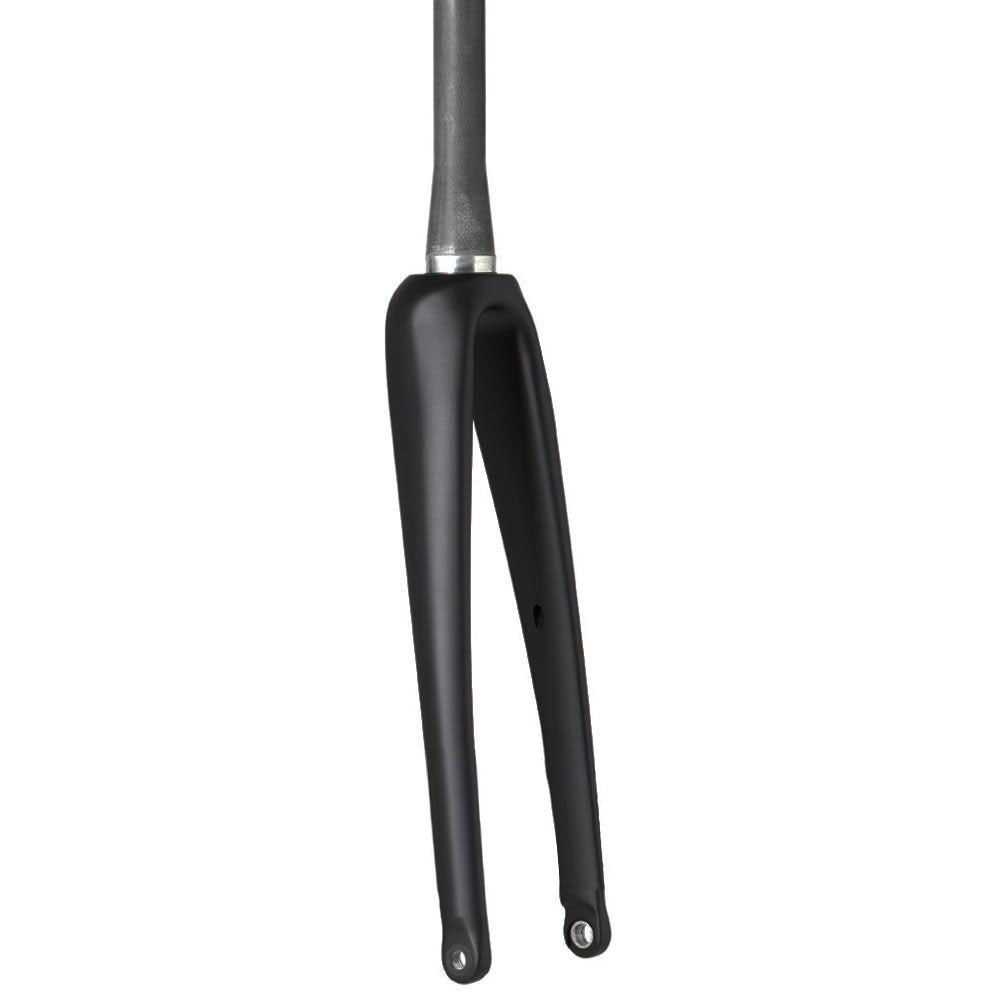

Columbus is happy to present a very special evolution of the famous Futura Disc carbon road-fork, specifically designed to host fully integrated internal cable-routing.
The 1-1/2” tapered steere maintains a 1-1/8” cylindrical shape at the top, to perfectly interact with the majority of the internal-routing stems available on the market. Moreover, the contiguity of the internal volumes of its monocoque body allows the front brake-cable to directly reach the disc-caliper at the end of the blade.
Finally, a further opening on the lower rear part of fork’s steerer guarantees the possibility to route toward the frame down-tube any additional mechanical and/or electronic cable for brakes and derailleurs.
Braking performance is dramatically improved by the disc brake system: with the capability to accept up to 160mm rotors, Futura Disc ensures unbeatable performance, even in the most challenging weather conditions.
The Futura's ultra-light monocoque carbon-fibre design, with its 1"1/2 oversized steerer, have been specifically reinforced to maximize stiffness and reliability during the braking phase, giving enhanced precision and performance to the riding-experience.
Characteristics:
- T700S & HFM Carbon Fibre Monocoque, Cabon dropouts with aluminium inserts
- Carbon Dropouts with aluminium inserts
- Finish: Raw Carbon
- For Flat Mount Calipers - max 160mm rotor
- Centre Lock AFS Fitment Only
- Steerer: 1"1/8 top 1"1/2 Bottom
- Axle to crown length: 368mm
- Tyre clearance: up to 28mm
- Internal cable routing
- Crown dia: 56mm
- Rake: 45mm
- Axle standard: 12mm Thru Axle (included)
- Weight: 440g (-/+10g)
