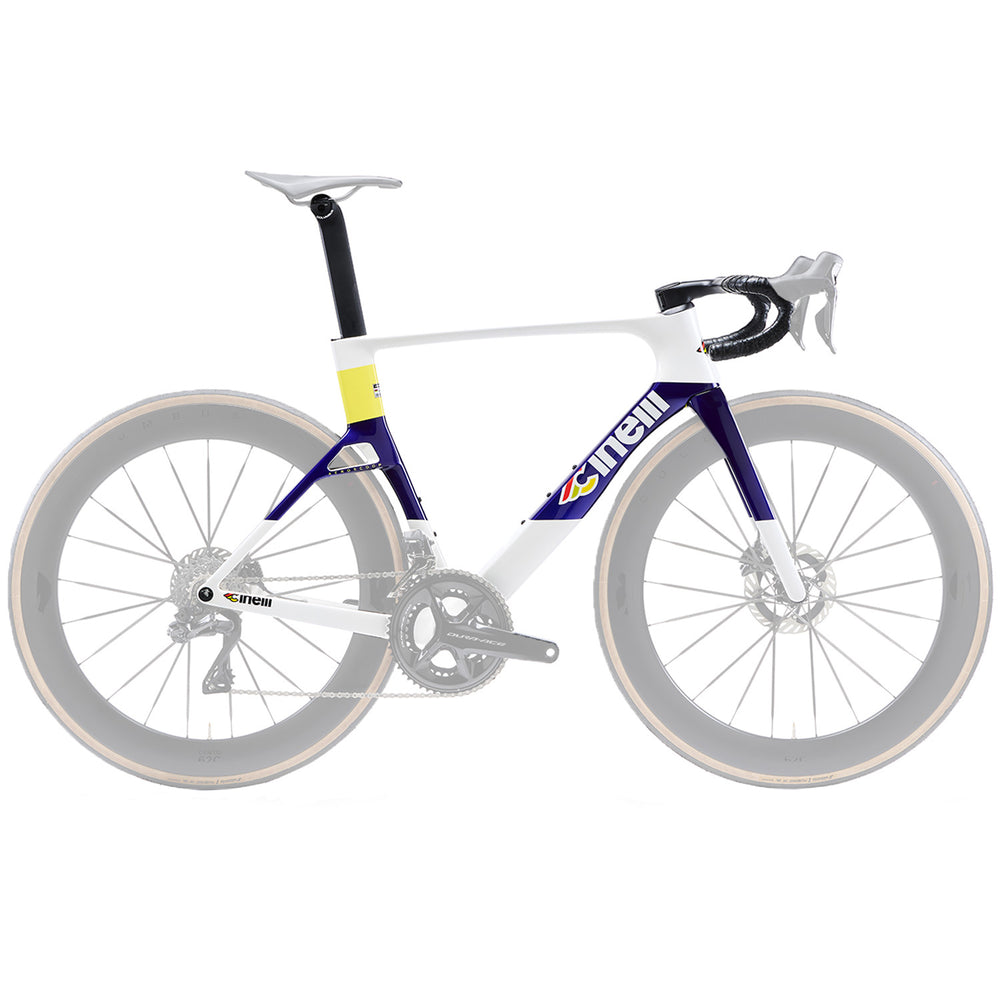

Cinelli Aeroscoop Frameset In Blue Beat

From:  £3,499.00
The Aeroscoop is Cinelli's most advanced aerodynamic carbon road bike, born from decades of Milanese design excellence and validated in the wind tunnel for race-winning speed and stability. It's a pure performance machine ...Learn more
Size: XL
Size guide icon Find my size
Product Code: CD248BXL
£3,499.00
Minus
1
Plus
£3,499.00
In stock with supplier, dispatched in 5 days

Click & Collect

Select Click & Collect at checkout and pick up your order at a convenient location

Walton

Special order
Ready in 5 days
Map Marker icon Auckland House, New Zealand Ave, Walton-on-Thames KT12 1PL
Calculating...
£3,499.00 + Add to cart

The Aeroscoop is Cinelli's most advanced aerodynamic carbon road bike, born from decades of Milanese design excellence and validated in the wind tunnel for race-winning speed and stability. It's a pure performance machine that blends aerodynamic optimisation and real-world handling.

Every surface of the Aeroscoop has been deliberately sculpted to minimise drag while maintaining predictable handling in crosswinds and at high speeds. The frame shape, tube junctions, and integrated cockpit were iteratively refined using prototype testing and extensive wind-tunnel validation, producing measurable reductions in aerodynamic losses without sacrificing stiffness where it matters. The result is a bike that accelerates quickly, holds speed efficiently on flats, and feels composed when the road throws turbulence at the rider.

The geometry is uncompromisingly race-oriented, ensuring an aggressive, performance-driven position for a wide range of riders. Generous 34mm tyre clearance brings modern control and comfort gains.

Technical Specifications:

  • Sizes: S (49), M (52), L (54), XL (56)
  • Frame: Carbon T700/T800/T1100
  • Cockpit: S (100x380), M (100x380), L (110x380), XL (120x410) Included
  • Fork: Full Carbon Monocoque  1 1/8" - 1 1/2" (Internal Cable Routing)
  • Cable Routing: Full Internal Di2/EPS
  • Brake Fitment: Flat Mount Disc
  • Axles: BT 12x100mm / 12x142mm
  • Bottom Bracket: T47x86 Threaded Ceramic Bearings included
  • Seatpost Dia: Aero (Included)
  • Headset: Included
  • Max Tyre Clearance: 700x34c
  • UCI Approved
  • Frame Weight: 950g
  • Fork Weight: 370g (uncut)
  • Wind-Tunnel Proven: Developed and validated through wind-tunnel testing and on-road prototype evaluation for quantifiable aerodynamic gains.
  • Improved Stiffness-to-Weight Ratio: Carbon layup and structural design tuned for crisp power transfer with minimised mass.
  • Pure Racing Geometry: Aggressive, performance-focused geometry
  • 34mm Tyre Clearance: Supports wider tyres for better comfort, grip, and rolling efficiency under race conditions.

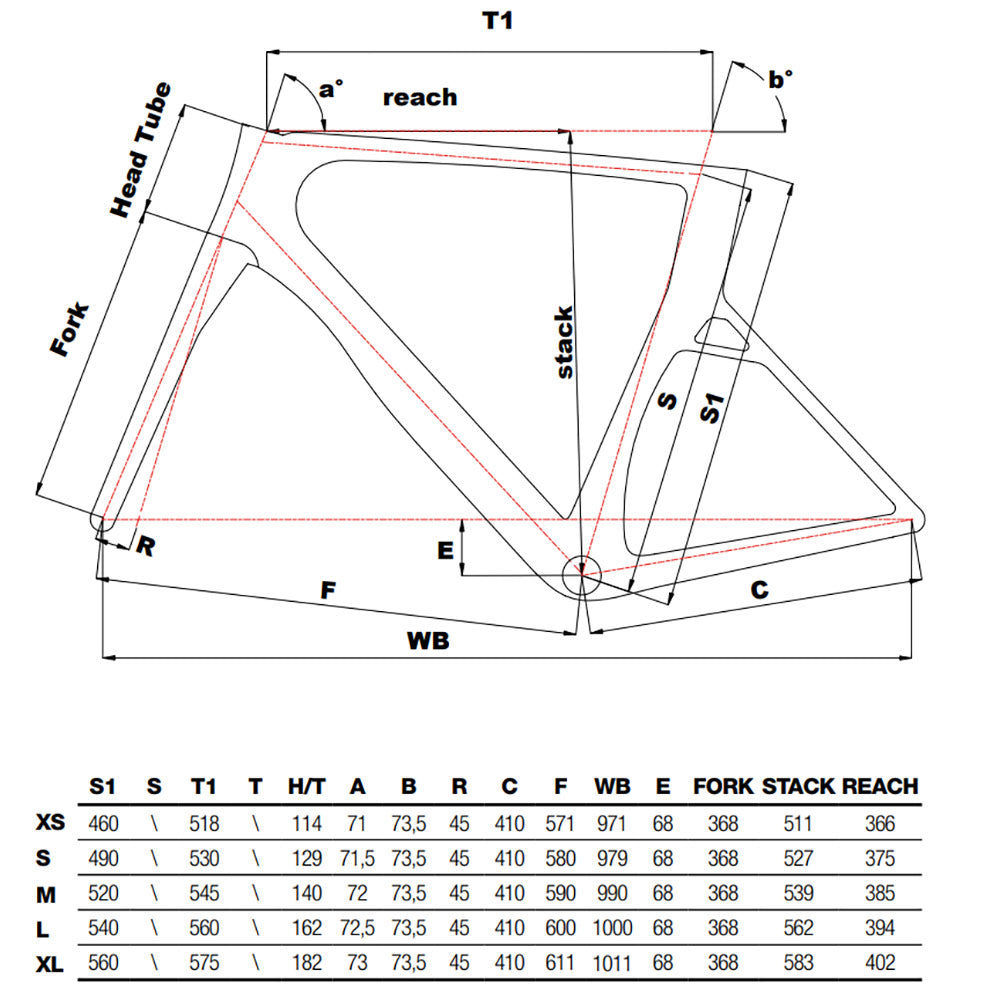

Geometry

Size S M L XL
Seat tube (S1) 490 520 540 560
Top tube, effective (T1) 530 545 560 575
Head tube (H/T) 129 140 162 182
Head angle (A, °) 71,5 72 72,5 73
Seat angle (B, °) 73,5 73,5 73,5 73,5
Fork rake (R) 45 45 45 45
Chainstay (C) 410 410 410 410
Front centre (F) 580 590 600 611
Wheelbase (WB) 979 990 1000 1011
BB drop (E) 68 68 68 68
Fork length 368 368 368 368
Stack 527 539 562 583
Reach 375 385 394 402

Measurements in mm unless marked. Source: https://cinelli-milano.com/products/aeroscoop-frame-kit
