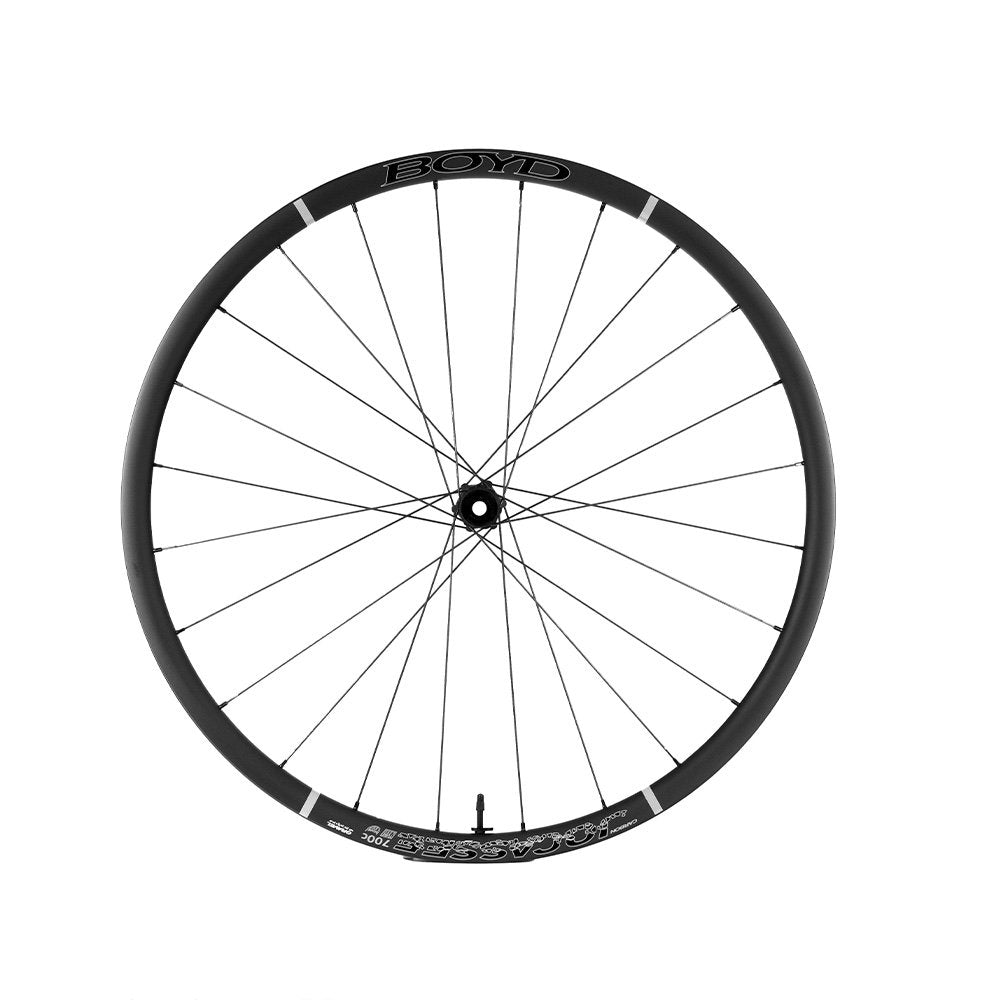

The Boyd Jocassee Carbon Gravel SL Wheelset is designed for your next gravel adventure. Featuring a layup with aerospace grade carbon fibre to enhance ride feel, while keeping the wheelset weight to just 1145g. The Jocassee keeps the strength high to inspire confidence when riding over any terrain.
The Jocassee Carbon Gravel SL is built to be the ultimate gravel adventure wheel. A very detailed rim layup and combination of aerospace grade carbon fibre allows for a rim that weighs just 322g, yet can handle the rough gravel roads or even singletrack. The offset rim bed allows for a more even spoke tension to keep your wheels in true and running strong. Modern gravel bikes are running larger and larger tyres. The 26mm internal width of the Jocassee pairs perfectly to larger tyres. Run lower pressure, ride rougher roads, go on a new adventure. The Jocassee was built to handle this.
The easy to service Grade 54 featuring a ratchet mechanism is built for handling high torque loads. Weatherproof seals, and shielded bearings means the wheels continue to perform, even when riding long miles in poor conditions.
Jocassee (Joe-Cass-EE) is a heritage preserve in the Northwest corner of South Carolina. Containing over 100 miles of gravel roads, Jocassee is a favourite of cyclists looking for a very difficult gravel ride. Founder, Boyd Johnson, started riding in Jocassee on a road bike with 25mm tyres in the early 2010s (not highly recommended at all!). Over time, gravel started to emerge as a discipline, people migrated to cyclocross bikes, followed by gravel specific bikes.
- Limited lifetime warranty.
- Aerospace Grade Carbon Fibre Rims.
- Enduro ABEC-5 LLU/LLB bearings.
- 7075-T6 Aluminium alloy axles.
- 6061-T6 CNC Aluminium hub shell.
- Centerlock Disc Brake Rotor mounts.
- 6.6 and 54 teeth of engagement.
- Tool free servicing.
- Easily replaceable parts.
- Multiple hub drivers available.
Grade 54 hubs
Straight Pull
A straight pull bicycle hub offers increased strength and improved wheel stiffness, enhancing overall performance and durability.
Maintenance
The Grade 54 hubs feature tool free maintenance and tool free swapping of end caps and freehub bodies. Spend more time riding, not working on your hubs.
54 Tooth Ratchet
A ratchet drive distributes load evenly across large, interlocking surfaces, delivering exceptional strength and durability under high torque. This design allows you to apply as much power as you want through the hub with confidence, knowing the mechanism is built to handle it without compromise.
Enduro Abec 5 LLU/LLB Bearings
Boyd's most advanced hub ever is engineered to deliver unparalleled performance, necessitating the use of the world's most advanced bearings. The Enduro ABEC 5 bearings provide exceptional precision and durability, ensuring that the hub operates smoothly under the most demanding conditions.
Specification
Spoke Count: Front 24h. Rear 24h.
Rim Type: Tubeless Ready Clincher.
Wheel Size: 700c.
Assembly: Handbuilt.
Lacing Pattern: 2-Cross.
Brake Type: Disc Brake.
Rotor Fitment: Centrelock.
Hubs: Grade 54 Hubs.
Bearings: Enduro ABEC-5 LLU/LLB.
Spokes: Pillar Wing 20.
Nipples: Pillar DSN double square alloy nipple.
Wheel Weights: Front 520g. Rear 625g. Set 1145g.
Rim External Width: 32mm.
Rim Internal Width: 26mm.
Rim Depth: 25mm.
Recommended Tyre Size: 36mm to 55mm.
Please Note: Tubeless Rim Tape and Valves pre-installed.
Grade 54 hubs
The Grade 54 hubs weigh: 85g Front|185g Rear
