The SV occupies the space between Racing and All-road, representing a new standard in road cycling. By combining race level performance with the adaptability and comfort that everyday riders demand. Resulting in a bike that doesn't force compromises and a machine that thrives on any road, with any rider, in any situation. The Diamante Seatpost, paired with a high stack and sloping geometry combination enhances comfort on rough terrain and helps reduce fatigue during long rides. The seatpost features an updated saddle clamp and increased length of 380 mm.

With a focus on enhancing aerodynamics, the front impact area has been reduced by 16% in comparison to the Diamante SV. The front wheel is seamlessly integrated into the downtube plus the confirmed optimal tyre width option is 32mm to achieve the minimum airflow disruption. The 86.5 mm BB width provides a wide base for the downtube and chainstays, while the deep headtube design (67.9 mm) further improves handling precision, especially at high speeds and torque.

Frame Specs

• Sizes: XXS (45), XS (48), S (51), M (53), L (56), XL (58), XXL (61)
• Fuga Handlebar: XXS (80x370), XS (90x370), S (100x370), M (110x370), L (120x370) XL (120x370), XXL (130x370)
• Compatible with electronic groupsets only
• Cable integration: Fully integrated
• Material: Torayca T1100 and T1000 intermediate module carbon fibre
• Bottom bracket: BB86 86.5 x 41
• Headset: Fully Integrate
• Tyre Clearance: Up to 35mm

• Thru axles: 100/142mm x 12mm (125x165mm)
• Frame weight: 780g
• Fork weight: 370g
• Handlebar weight: 300g
• Warranty: Covered under Basso's 5 year warranty
• Made in Italy

Bike Specifications:

• Components: Campagnolo Record Wireless 13x
• Chainset: Campagnolo Record Wireless 13x
• Disc Brakes: Campagnolo Record Wireless 13x
• Disc Rotors: Campagnolo AFS 160/140mm
• Cassette: Campagnolo Record Wireless 13x
• Chain: Campagnolo Record Wireless 13x
• Saddle: Prologo Dimension RS
• Handlebar/Stem: Basso Fuga Integrated
• Seatpost: Basso Integrated
• Wheelset: Campagnolo Zonda H50 Disc
• Tyres: Schwalbe One Performance 700c x 28c

Note: Levita handlebars are available upon request

Spec may be subject to change due to availability

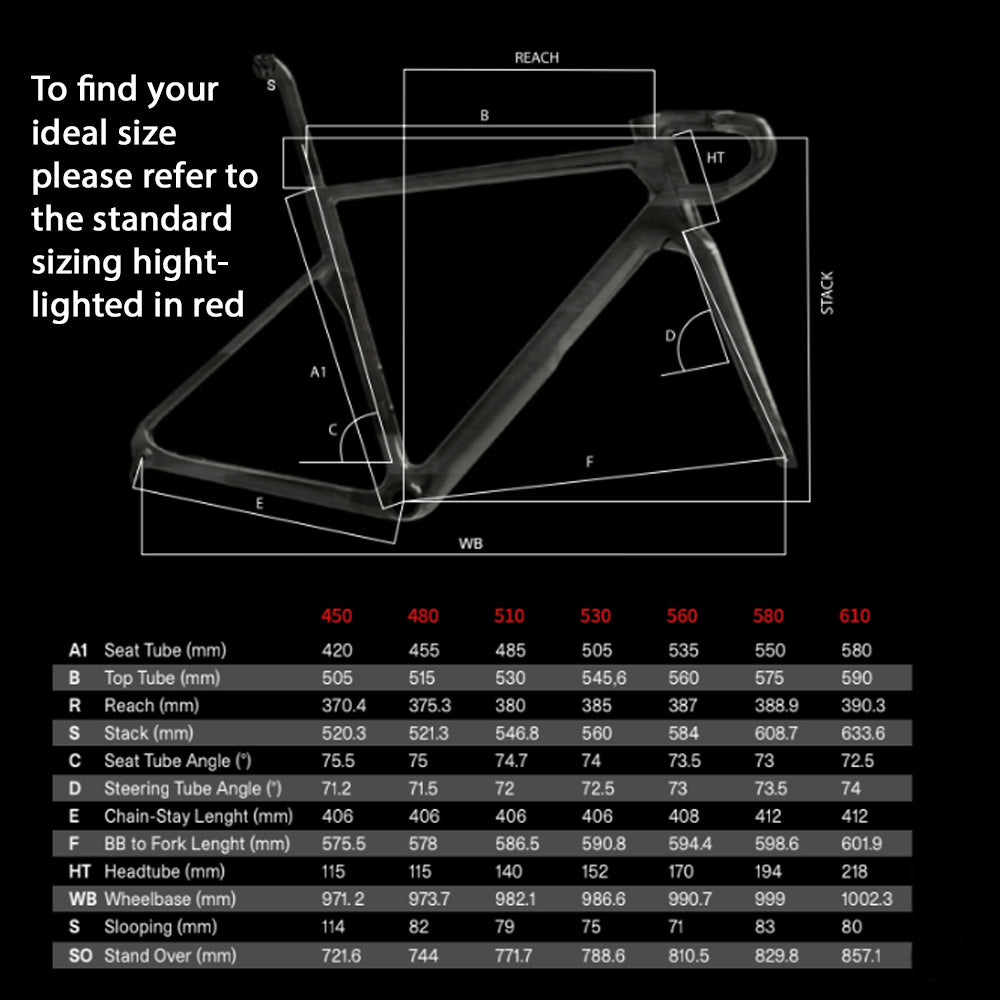

Geometry

Measurements in mm unless marked. Source: https://bassobikes.com/en/bikes/road-bikes/sv
