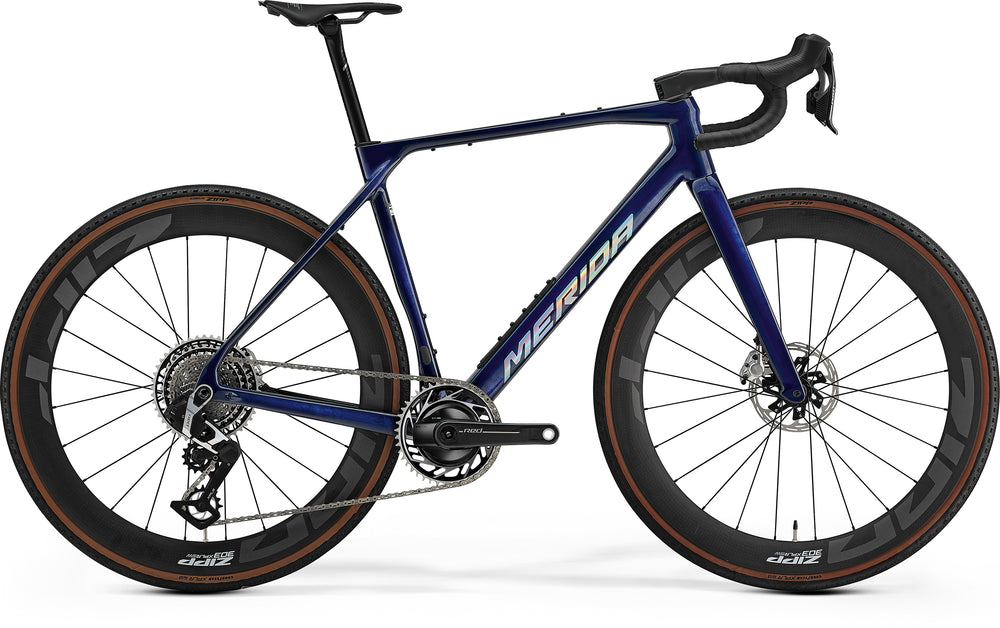

2027 Merida Mission 10K Gravel Bike In Transp. Blue Carbon Ud

From:  £7,500.00

Pre-order: expected to despatch by 15/01/2027.

Dates can change. If yours does, we'll keep you updated.

  • Frame: CF4 II carbon
  • Fork: Carbon
  • Gears: SRAM Red XPLR AXS 13-speed
  • Brakes: SRAM Red AXS hydraulic disc
  • Wheels: Zipp 303 XPLR SW carbon, Goodyear XPLR Slick 40mm
Learn more
Size: XS
Size guide icon Find my size
Product Code: S235
£7,500.00
Minus
1
Plus
£7,500.00
In stock with supplier, dispatched in 5 working days

Click & Collect

Select Click & Collect at checkout and pick up your order at a convenient location

Walton

Special order
Ready in 5 working days
Map Marker icon Auckland House, New Zealand Ave, Walton-on-Thames KT12 1PL
Calculating...
Pound symbol Seen it cheaper? We’ll Price Match
Cycle To Work Save up to 39% Learn More
Free 6-week bike check. Learn More
4 weeks free insurance. Learn More
20% Off Pedals With Bikes View Pedals
30 Day Returns
£7,500.00 + Add to cart

Gravel racing and beyond! Our top-of-the-range gravel race bike is perfect for fast-paced gravel racing or riding on rough country lanes. It is equipped with the latest high-end gravel bike technology.

Gravel racing is your game! Look no further - a new sheriff is in town. Welcome to the top-of-the-range Mission 10K. Our new carbon race frame is loaded with the latest gravel racing gear, including a 13-speed SRAM Red XPLR groupset, a one-piece Merida carbon bar and stem and new extra-wide Zipp 303 XPLR SW carbon wheels. All of this is designed to help you and your Mission reach the podium at your next gravel race or gain the edge on your next multi-surface outing.

All UK Mainland Bike Deliveries Over £999 - Free Bike orders are sent via TNT/FedEx with estimated delivery within 1 working day after quoted dispatch time (For Scottish Highlands, Northern Ireland, Isle of Man and the Channel Islands deliveries please allow an additional 1-4 working days).Bike orders under £999 and eBikes will incur a £25 delivery fee.

Free Delivery On Orders Over £199.99 - When you spend more than £199.99 at 99 Bikes deliveries to a UK mainland address will be free (excludes bikes & large items).Certain regions and territories of the UK will incur additional charges, details of which can be found on our delivery page.

Click & Collect Orders -Please be aware Click & Collect orders may take some time to fulfil. We advise not to travel to your chosen store until you have been notified that your order is ready for collection.

At 99 Bikes our priority is to ensure that you are highly satisfied with your purchase. In the unlikely event that you aren't, we offer a 30 day online return policy* in which you can receive a full refund. Any item including bikes (with the exception of food) can be returned to us for any reason provided it is received by us in an unused and resalable condition in or with its original packaging which must be undamaged.

Find Out More About Returns >

2027 Merida Mission 10K Gravel Bike In Transp. Blue Carbon Ud
bottom bracket
Sram DUB BSA Road Wide; 68mm
brakes
Front: Sram Red AXS; Disc Rear: Sram Red AXS; Disc
brake levers
Sram Red AXS
cassette
Sram Red XPLR; XG-1391; 10-46 teeth; 13 speed
chain
Sram Red; Flattop
crankset
Sram Red XPLR AXS Power Meter; 44 teeth; Carbon; Crank Length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
fork
Mission CF4 II; Tapered; carbon; 700x45C max. wheel size
frame
CF4 II; carbon; 100 x12mm / 142 x 12mm axle standard; BSA bb standard; max. tyre size -700x40C
grips
Merida ROAD Expert
handlebars
Merida Team SL 1P GR; carbon; (XXS-S) - 380mm, (M-L) - 400mm, XL - 420mm
headset
Merida Team SL (SE-301 neck)
rear derailleur
Sram Red XPLR; AXS wireless; 1x13; T-Type
saddle
Prologo Nago R4 PAS; Nack
seatpost
Merida Team SL II; 27.2mm diameter; in-line; Carbon
shifters
Front: Sram Red AXS; Hydraulic disc Rear: Sram Red AXS; Hydraulic disc
stem
Merida Team ONE-PIECE GR INTEGRATED; carbon
tyres
Front: Goodyear XPLR Slick designed for Zipp 40mm; 40-622; TLR; Rear: Goodyear XPLR Slick designed for Zipp 40mm; 40-622; tubeless ready;
wheelset
Rims: Zipp 303 XPLR SW; 100x12mm; 142x12mm; 32mm inner rim width; 54mm deep; Centerlock; carbon; (tubeless tape and valves included) Front Hub: Merida Expert TR Rear Hub: Merida Expert TR

* Any weights shown are based on production painted frames as pictured. Actual weights will vary with colourway, frame size and component variation. Specifications are supplied by the manufacturer and are subject to change without notice.

XXS157 cm - 167 cm

157 cm - 167 cm
130 cm 206 cm

XS164 cm - 173 cm

164 cm - 173 cm
130 cm 206 cm

S170 cm - 178 cm

170 cm - 178 cm
130 cm 206 cm

M173 cm - 180 cm

173 cm - 180 cm
130 cm 206 cm

L177 cm - 187 cm

177 cm - 187 cm
130 cm 206 cm

XL191 cm - 201 cm

191 cm - 201 cm
130 cm 206 cm
