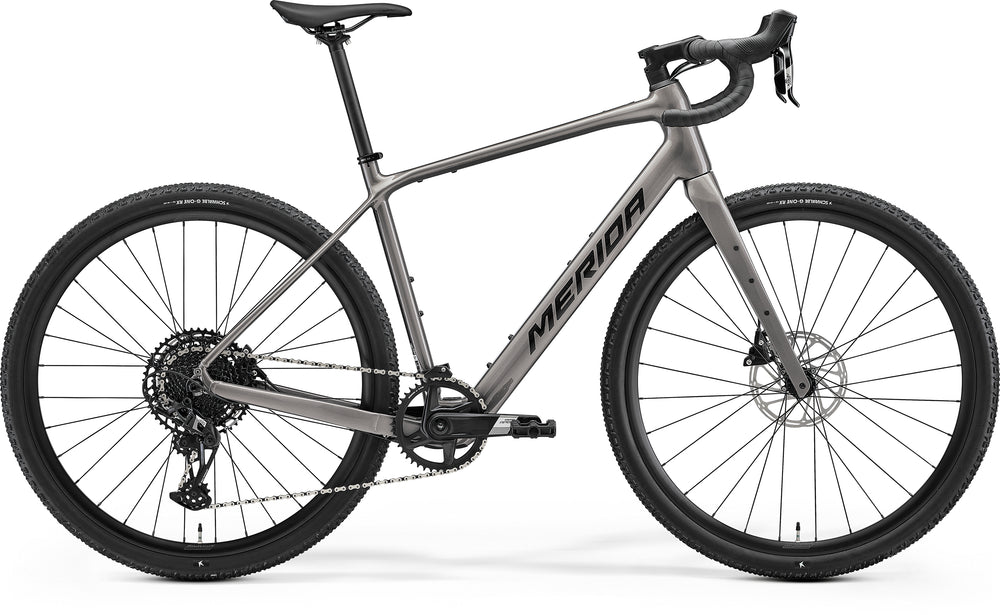

2027 Merida Esilex 600 Electric Gravel Bike In Warm Slate Grey

From:  £3,000.00

Pre-order: expected to despatch by 16/11/2026.

Dates can change. If yours does, we'll keep you updated.

  • Motor: Mahle X30, 40Nm
  • Frame: AL-A IV aluminium
  • Fork: Carbon
  • Gears: SRAM Apex 12-speed
  • Wheels: 700c, G-ONE RX 700x45C
Learn more
Size: XS
Size guide icon Find my size
Product Code: S830
£3,000.00
Minus
1
Plus
£3,000.00
In stock with supplier, dispatched in 5 working days

Click & Collect

Select Click & Collect at checkout and pick up your order at a convenient location

Walton

Special order
Ready in 5 working days
Map Marker icon Auckland House, New Zealand Ave, Walton-on-Thames KT12 1PL
Calculating...
Pound symbol Seen it cheaper? We’ll Price Match
Cycle To Work Save up to 39% Learn More
Free 6-week bike check. Learn More
4 weeks free insurance. Learn More
20% Off Pedals With Bikes View Pedals
30 Day Returns
£3,000.00 + Add to cart

700c wheel gravel eBike with SRAM Apex 1 x 12 drivetrain powered by MAHLE ebikemotion 40Nm hub motor and 250Wh internal battery.

The dream ticket when discussed in the Merida UK office. A gravel bike with motor assistance, allowing you to go further, tackle more and generally just grin a lot. MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it's not engaged. The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features. The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat.

All UK Mainland Bike Deliveries Over £999 - Free Bike orders are sent via TNT/FedEx with estimated delivery within 1 working day after quoted dispatch time (For Scottish Highlands, Northern Ireland, Isle of Man and the Channel Islands deliveries please allow an additional 1-4 working days).Bike orders under £999 and eBikes will incur a £25 delivery fee.

Free Delivery On Orders Over £199.99 - When you spend more than £199.99 at 99 Bikes deliveries to a UK mainland address will be free (excludes bikes & large items).Certain regions and territories of the UK will incur additional charges, details of which can be found on our delivery page.

Click & Collect Orders -Please be aware Click & Collect orders may take some time to fulfil. We advise not to travel to your chosen store until you have been notified that your order is ready for collection.

At 99 Bikes our priority is to ensure that you are highly satisfied with your purchase. In the unlikely event that you aren't, we offer a 30 day online return policy* in which you can receive a full refund. Any item including bikes (with the exception of food) can be returned to us for any reason provided it is received by us in an unused and resalable condition in or with its original packaging which must be undamaged.

Find Out More About Returns >

2027 Merida Esilex 600 Electric Gravel Bike In Warm Slate Grey
battery
237Wh
bottom bracket
DUB BSA 68 Wide
brakes
Front: Sram Apex Rear: Sram Apex
cassette
Sram PG-1210 Eagle Cassette; 10-50 teeth; 12 speed
chain
Sram Eagle S200
crankset
Sram Apex 1 Wide, Crank: 165mm
fork
Merida Silex II CF2; Tapered; MAT carbon; 700x47C max. tyre size
frame
eSilex AL-A IV; aluminium; 700Cx45mm max. tyre size; 100x12/135x9 axle standard
grips
Merida Road Expert
handlebars
Merida Expert GR II; aluminium; (XXS-XS-S) - 400mm , M - 420mm , (L-XL) - 440mm
headset
Acros ICR Merida external neck w/diecast splitring
motor
Mahle ix2 237Wh, Mahle X30 Drive Unit
pedals
VP VPE-891
rear derailleur
Sram Apex Eagle
saddle
Merida Comp SL; 28% recycled material; V-mount
seatpost
Merida Expert SL; 27.2mm diameter; in-line; carbon
stem
Merida Team CC III; aluminium; 31.8mm diameter; -6 degree stem angle; incl. MERIDA SMART MOUNT; 80mm
tyres
Front: G-ONE RX Performance Line; RaceGuard TLR; 700x45C Rear: G-ONE RX Performance Line; RaceGuard TLR; 700x45C
wheelset
Rims: Merida Comp SL II; 25mm inner rim width; 24 HRI; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless ; black nipples Front Hub: Shimano TC500; 100x12mm; 28 spoke; Centerlock

* Any weights shown are based on production painted frames as pictured. Actual weights will vary with colourway, frame size and component variation. Specifications are supplied by the manufacturer and are subject to change without notice.

XXS151 cm - 161 cm

151 cm - 161 cm
130 cm 206 cm

XS159 cm - 168 cm

159 cm - 168 cm
130 cm 206 cm

S167 cm - 175 cm

167 cm - 175 cm
130 cm 206 cm

M173 cm - 182 cm

173 cm - 182 cm
130 cm 206 cm

L180 cm - 189 cm

180 cm - 189 cm
130 cm 206 cm

XL187 cm - 196 cm

187 cm - 196 cm
130 cm 206 cm
