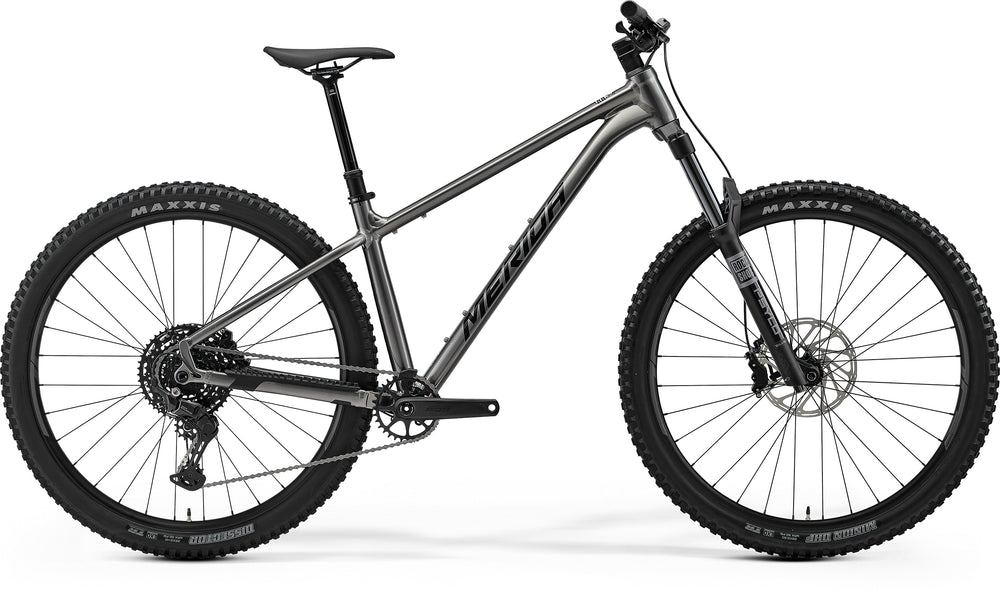

2027 Merida Big Trail 500 Hardtail Mountain Bike In Gunmetal Grey

From:  £1,400.00
  • Frame: Aluminium
  • Fork: RockShox Psylo Silver 140mm air fork
  • Gears: Shimano CUES 1x10
  • Brakes: SRAM DB4 4-piston hydraulic disc
  • Wheels: 29", Maxxis Minion DHF 2.5" / Dissector 2.4"
  • Dropper post: 150-230mm by size
Learn more
Size: XS
Size guide icon Find my size
Product Code: S170
£1,400.00
Minus
1
Plus
£1,400.00
In stock with supplier, dispatched in 7 working days

Click & Collect

Select Click & Collect at checkout and pick up your order at a convenient location

Walton

Special order
Ready in 5 working days
Map Marker icon Auckland House, New Zealand Ave, Walton-on-Thames KT12 1PL
Calculating...
Pound symbol Seen it cheaper? We’ll Price Match
Cycle To Work Save up to 39% Learn More
Free 6-week bike check. Learn More
4 weeks free insurance. Learn More
20% Off Pedals With Bikes View Pedals
30 Day Returns
£1,400.00 + Add to cart

29er aluminium hardcore hardtail with RockShox Psylo Silver RC 140mm Air sprung fork, Shimano CUES 1 x 10 drivetrain and powerful SRAM DB4 4 piston hydraulic disc brakes.

The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple:

  • 140mm air fork
  • 29 wheels
  • 1 x transmission
  • Dropper post

Now in its 2nd iteration, Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough.

Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size, for agility, take a shorter size.

All UK Mainland Bike Deliveries Over £999 - Free Bike orders are sent via TNT/FedEx with estimated delivery within 1 working day after quoted dispatch time (For Scottish Highlands, Northern Ireland, Isle of Man and the Channel Islands deliveries please allow an additional 1-4 working days).Bike orders under £999 and eBikes will incur a £25 delivery fee.

Free Delivery On Orders Over £199.99 - When you spend more than £199.99 at 99 Bikes deliveries to a UK mainland address will be free (excludes bikes & large items).Certain regions and territories of the UK will incur additional charges, details of which can be found on our delivery page.

Click & Collect Orders -Please be aware Click & Collect orders may take some time to fulfil. We advise not to travel to your chosen store until you have been notified that your order is ready for collection.

At 99 Bikes our priority is to ensure that you are highly satisfied with your purchase. In the unlikely event that you aren't, we offer a 30 day online return policy* in which you can receive a full refund. Any item including bikes (with the exception of food) can be returned to us for any reason provided it is received by us in an unused and resalable condition in or with its original packaging which must be undamaged.

Find Out More About Returns >

2027 Merida Big Trail 500 Hardtail Mountain Bike In Gunmetal Grey
brakes
Front: Sram DB4; 4 piston Rear: Sram DB4; 4 piston
cassette
Shimano LG300; 11-48 teeth; 10 speed
chain
KMC xGlide
crankset
Merida Expert TR II; 32 teeth; Crank Length: 165mm for all sizes
fork
Rock Shox Psylo Silver RC; Air; 140mm travel; platform
frame
TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29 x 2.5
grips
Merida Comp TR
handlebars
Merida Comp TR II; aluminium; 780mm wide; 35mm rise
headset
Acros ICR Merida external neck; Upper and lower IPS sealing
rear derailleur
Shimano CUES U6000; GS
saddle
Merida Comp SL; 25% recycled material; V-mount
seatpost
Merida Expert TR II; 34.9mm diameter; in-line; XShort: 150mm seat post travel - Short/Mid : 170mm seat post travel - Long: 200mm seat post travel - XLong: 230mm seat post travel
shifters
Front: Shimano SL-MT500-L Rear: Shimano CUES U6000
stem
Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise
tyres
Front: Maxxis Minion DHF; 29x2.5; fold; TR EXO Dual Rear: Maxxis Dissector; 29x2.4; fold; TR EXO Dual
wheelset
Rims: Merida Comp TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Double Butted Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 spoke; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock

* Any weights shown are based on production painted frames as pictured. Actual weights will vary with colourway, frame size and component variation. Specifications are supplied by the manufacturer and are subject to change without notice.

S159 cm - 169 cm

159 cm - 169 cm
130 cm 206 cm

M168 cm - 178 cm

168 cm - 178 cm
130 cm 206 cm

L177 cm - 187 cm

177 cm - 187 cm
130 cm 206 cm

XL185 cm - 196 cm

185 cm - 196 cm
130 cm 206 cm
