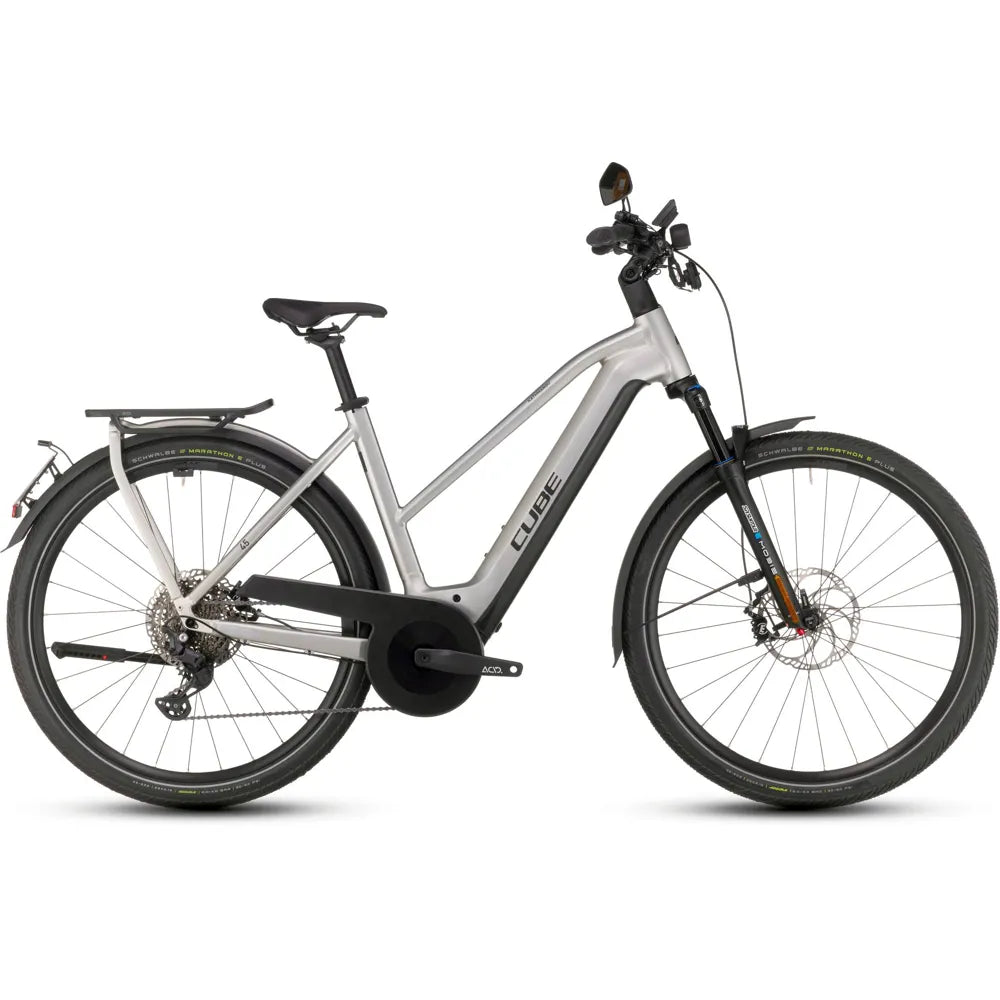

2025 Cube Kathmandu Trapeze Frame Hybrid 45 750 Electric Bike in Grey
2025 Cube Kathmandu Trapeze Frame Hybrid 45 750 Electric Bike in Grey
Back in Stock Soon
View Full Product Details

2025 Cube Kathmandu Trapeze Frame Hybrid 45 750 Electric Bike in Grey

From:  £4,699.00
Speed pedelecs re-write the rules of urban mobility, but the Kathmandu Hybrid 45 goes further by re-writing the rules for speed pedelecs. A fourth-generation Bosch Performance Line Speed motor serves up 85Nm of torque and,...Learn more
Size: T S
Product Code: 731401T50
£4,699.00
£4,699.00
Pound symbol Seen it cheaper? We’ll Price Match
Cycle To Work Save up to 39% Learn More
Free 6-week bike check. Learn More
4 weeks free insurance. Learn More
20% Off Pedals With Bikes View Pedals
30 Day Returns
Warranty Included

Click & Collect - Always fast, easy & free

Select Click & Collect at checkout and pick up your order at a convenient location

Map Marker icon 106-108 The Hornet, Chichester, England, United Kingdom
Get directions
Clock Opening Times Icon
Monday9.00am - 5.30pm
Tuesday9.00am - 5.30pm
Wednesday9.00am - 5.30pm
Thursday9.00am - 5.30pm
Friday9.00am - 5.30pm
Saturday9.00am - 5.30pm
Sunday10.00am - 4.00pm
Bank Holidays10.00am - 4.00pm
Map Marker icon 150 Commercial Road, Totton, Southampton, England, United Kingdom
Get directions
Clock Opening Times Icon
Monday9am - 5.30pm
Tuesday9am - 5.30pm
Wednesday9am - 5.30pm
Thursday9am - 5.30pm
Friday9am - 5.30pm
Saturday9am - 5.30pm
Sunday10am - 4.00pm
Bank Holidays10am - 4.00pm
Map Marker icon Auckland House, Walton-on-Thames, England, United Kingdom
Get directions

Speed pedelecs re-write the rules of urban mobility, but the Kathmandu Hybrid 45 goes further by re-writing the rules for speed pedelecs. A fourth-generation Bosch Performance Line Speed motor serves up 85Nm of torque and, combined with a 750Wh battery, puts the world at your feet. The combined power of motor, legs and lungs is transferred to the road via Shimano's new, 10-speed Linkglide transmission and an oversize 48T chainring. The Suntour Mobie45 air suspension fork smooths your passage on even rough city streets, while powerful Magura hydraulic disc brakes ensure you can always slow down and stop safely, whatever the weather. We fitted comfortable and grippy Marathon E-Plus tyres in a 55mm width, plus full-length mudguards and a practical kickstand. And, of course, the sturdy Integrated Carrier IC 3.0 and included lighting system means you're all set for any journey, any time.

Beneath its deceptively normal-looking exterior, the Kathmandu Hybrid 45's Trapeze frame is full of clever touches. We included a high-capacity Bosch battery inside the down tube, for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is super-strong and stable as well as being integrated with the rear mudguard for an elegantly understated look that you'll love. It's the perfect way to add accessories and carry whatever you need with you. And of course, it's all safety-tested to the highest standards in our own in-house lab, so you know you're in safe hands.

All UK Mainland Bike Deliveries Over £999 - Free Bike orders are sent via TNT/FedEx with estimated delivery within 1 working day after quoted dispatch time (For Scottish Highlands, Northern Ireland, Isle of Man and the Channel Islands deliveries please allow an additional 1-4 working days).Bike orders under £999 will incur a £20 delivery fee.

Free Delivery On Orders Over £50.00 - When you spend more than £50.00 at 99 Bikes deliveries to a UK mainland address will be free (excludes bikes & large items).Certain regions and territories of the UK will incur additional charges, details of which can be found on our delivery page.

Click & Collect Orders -Please be aware Click & Collect orders may take some time to fulfil. We advise not to travel to your chosen store until you have been notified that your order is ready for collection.

At 99 Bikes our priority is to ensure that you are highly satisfied with your purchase. In the unlikely event that you aren't, we offer a 30 day online return policy* in which you can receive a full refund. Any item including bikes (with the exception of food) can be returned to us for any reason provided it is received by us in an unused and resalable condition in or with its original packaging which must be undamaged.

Find Out More About Returns >

2025 Cube Kathmandu Trapeze Frame Hybrid 45 750 Electric Bike in Grey

Frame - Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube

Fork - SR Suntour Mobie 35 LO-R Air, 100mm

Headset - M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

Stem - CUBE Comfort Stem Pro, 31.8mm, Adjustable

Handlebar - CUBE Comfort Trail Bar, 700mm

Grips - ACID Travel Comfort

Rear derailleur - Shimano Deore, LinkGlide Technology, 10-Speed

Shifters - Shimano Deore SL-M5130-R10, LinkGlide

Brake - Magura MT5e Hydr. Disc Brake (203/203), Bremslicht

Crankset - ACID E-Crank, 48T, 175mm

Crankset chainring sizes - 48T

Cassette - Shimano CS-LG-400, 11-43

Number of gears - 10

Chain - Shimano CN-LG500

Wheelset - Newmen Performance 25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready

Tires - Schwalbe Marathon E-Plus, Smart-DualGuard, 55-622

Pedals - ACID PP Trekking

Saddle - Natural Fit Sequence

Seatpost - CUBE Performance Post, 30.9mm

Dropper Seatpost - NO

Seatpost clamp - CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm (EE: CUBE Screwlock Semi Integrated, 36mm)

Front light - Supernova M99 Mini Pro, 250 Lux, 12V, DC

Rear light - Supernova M99 Tail Light, 12V DC

Kickstand - ACID FM Pure Kickstand

Mudguard - ACID 65 Integrated Carrier 3.0

Bell - Supernova Horn

Carrier - ACID Integrated Carrier 3.0, CUBE Adapter Compatible

Engine - Bosch Drive Unit Performance Line (85Nm) Speed (250Watt), Smart System

Battery - Bosch PowerTube 750

Charger - Bosch 4A

Remote - Bosch LED Remote

Display - Bosch Kiox 300

Net weight (kg) - 28.1

Gross weight (kg) - 33.1
