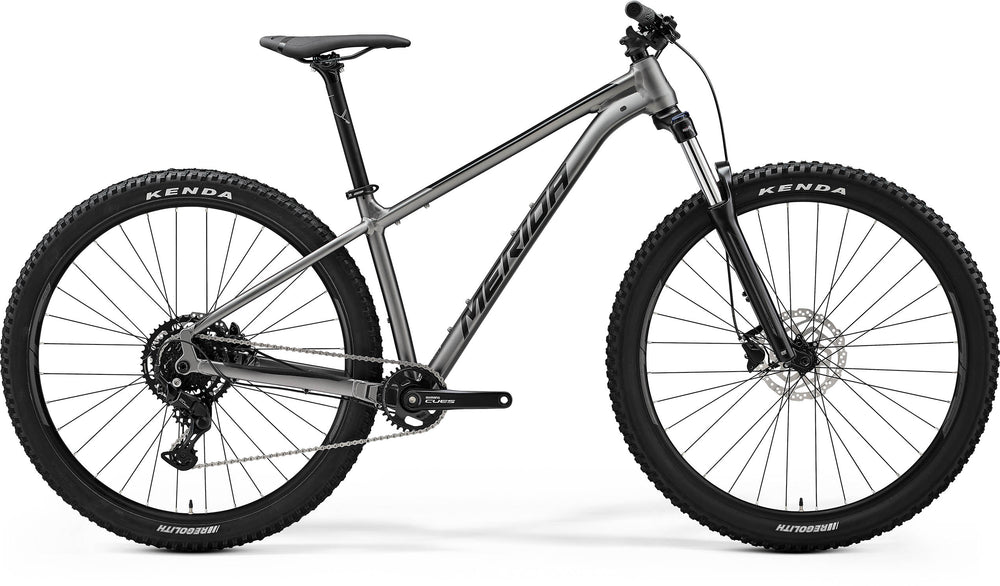

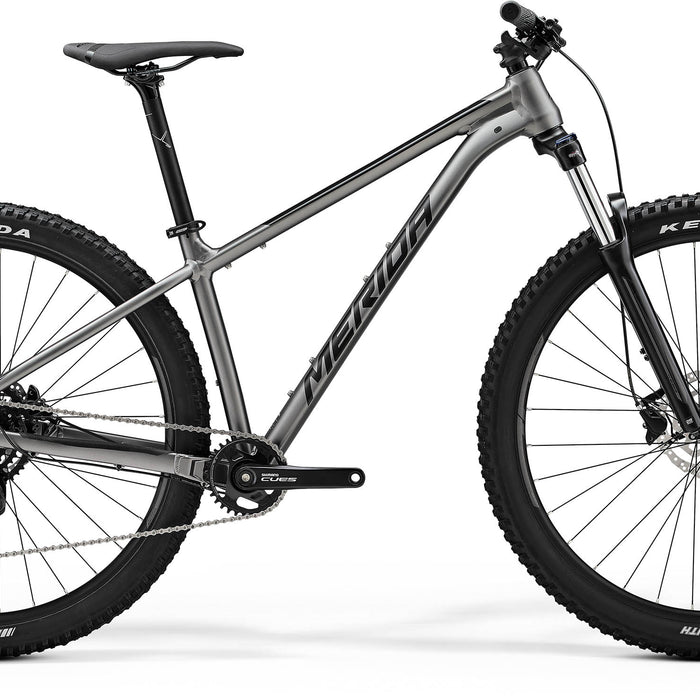

2024 Merida Big Trail 200 Hardtail Mountain Bike in Grey
Click & Collect - Always fast, easy & free
Select Click & Collect at checkout and pick up your order at a convenient location
Monday | 9am - 5.30pm |
Tuesday | 9am - 5.30pm |
Wednesday | 9am - 5.30pm |
Thursday | 9am - 5.30pm |
Friday | 9am - 5.30pm |
Saturday | 9am - 5.30pm |
Sunday | 10am - 4.00pm |
Bank Holidays | 10am - 4.00pm |
The Merida Big Trail has been a hit with the mountain bike press and trail riders alike. Bikeboard.cc confirmed that we 'nailed it', while MBR, IMB and many more confirmed that the Big Trail is firmly at the top of the trail hardtail game.
Conversations between UK bike shops and Merida's German R & D team resulted in the development of a fun-packed and hugely capable bike perfectly suited to UK riding.
The modern trail bike geometry has a slack enduro inspired 65.5 ° head angle, steep seat angle and a long reach. A short seat tube delivers a low standover height giving plenty of space to manoeuvre on the bike when the trail gets technical but still accommodates a long travel dropper post.
The geometry means most sizes work for most body sizes so riding style can be factored in. If you want to go crazy fast, take the longer size, for agility, take a shorter size.
The Big Trail has hidden talents, in addition to two sets of bottle bosses, there's a trail mount under the top tube allowing you to carry tools and extra gear on the bike. It's also possible to fit mudguards and a rack if you want to trek further afield.
All UK Mainland Bike Deliveries Over £999 - Free Bike orders are sent via TNT/FedEx with estimated delivery within 1 working day after quoted dispatch time (For Scottish Highlands, Northern Ireland, Isle of Man and the Channel Islands deliveries please allow an additional 1-4 working days).Bike orders under £999 will incur a £20 delivery fee.
Free Delivery On Orders Over £50.00 - When you spend more than £50.00 at 99 Bikes deliveries to a UK mainland address will be free (excludes bikes & large items).Certain regions and territories of the UK will incur additional charges, details of which can be found on our delivery page.
Click & Collect Orders -Please be aware Click & Collect orders may take some time to fulfil. We advise not to travel to your chosen store until you have been notified that your order is ready for collection.
We know how eager you'll be to jump on your new bike and hit the dirt or tarmac, so we give you everything you need to get you set up quickly. For full instructions on how you're bike will arrive and what you'll need to do, visit our How Our Bikes Are Built page
Easy Set-Up Instructions
Have your brand spanking new bike ready to ride in less than 15 minutes with our easy to follow guide.
Free Multi-Tool
9 in 1 multi-tool to help you set up and maintain your bike.
Free Pedal Spanner
Attach your pedals with ease using our free tool. Please note pedals are not included with all bikes so please check the specification. You can shop our awesome range of pedals HERE
At 99 Bikes our priority is to ensure that you are highly satisfied with your purchase. In the unlikely event that you aren't, we offer a 30 day online return policy* in which you can receive a full refund. Any item including bikes (with the exception of food) can be returned to us for any reason provided it is received by us in an unused and resalable condition in or with its original packaging which must be undamaged.
Find Out More About Returns >

bottom bracket
|
Shimano BB-UN101; 73mm
|
brakes
|
Front: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor Rear: Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
|
brake levers
|
Shimano MT200
|
cassette
|
Shimano LG300; 11-46 teeth; 9 speed
|
chain
|
Shimano LG500
|
crankset
|
Shimano CUES U4000; 32 tooth chainset. Crank length: 170mm (S), 175mm (M,L,XL,XXL)
|
fork
|
Suntour XCM32 DS; Coil; 120mm travel; Lockout; 46mm fork offset; 15mm thru-axle; Max tyre size 29 x 2.4
|
frame
|
TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29 x 2.5
|
grips
|
Merida Comp EC
|
handlebars
|
Merida Expert CC; aluminium; 740mm wide; 10mm rise
|
headset
|
Merida M4455
|
material
|
Aluminum
|
rear derailleur
|
Shimano CUES U4000 GS
|
seatpost
|
Merida Comp CC; MAT aluminium; 30.9mm diameter; 0mm lay back
|
shifters
|
Shimano CUES U4000
|
tyres
|
Front: Kenda Regolith; 29 x 2.4; wire bead Rear: Kenda Regolith; 29 x 2.2; wire bead
|
wheelset
|
Rims: Merida Comp TR; 29mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless Front Hub: Shimano TC500-B; 100x15mm; 32 spokes; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 spokes; Centerlock with Merida Comp TR axle including removable 6mm allen key
|
Please note the following size guides are a general overview and represent a rough guide to bike sizing. Each bike may deviate from these figures.
Road Bikes
Size | XXS | XS | S | M | L | XL | XXL |
Height (cm) | 155 - 160 | 160 - 166 | 167 - 172 | 173 - 179 | 180 - 185 | 186 - 191 | 192 - 207 |
Mountain Bikes
Size | XS | S | M | L | XL |
Height (cm) | 145 - 160 | 150 - 165 | 160 - 175 | 170 - 185 | 180 - 200 |
Hybrid & Urban Bikes
Size | XS | S | M | L | XL |
Height (cm) | 150 - 160 | 160 - 170 | 170 - 180 | 180 - 190 | 190 - 200 |
